Flexor's 571 Genuine and Detroit
(30 low res pics loading)
JUNE 30 2004



Flexor delivered to me a new Genuine 5.71
8" gearset with new carrier bearings. Also,
a solid collar and a Detroit Soft Locker.
The new carrier bearings can be pressed on
but, if you're lazy, you can coax them on
with kinetic energy. They went on tight.



This is the way Flexor delivered it to
me. An unusual pinion seal. No need to
take the seal out as I will re-use
this outer pinion bearing.



I measured the shims that came off
the pinion and the solid collar.....
86 on the pinion and 52 on the collar.
I like using the mics as they offer
accurate repeatable measurements.



I assembled and tightened the pinion nut
down cautiously and had about 5 in/lb of
pinion pre-load as measured by the
pendulum style torque bar.



Not my favorite ring and pinion brand to
use by a long shot but these are some of
the typical unique markings to identify a Genuine.









Looks like they ran a pattern at the
factory.....some rust on it from the
salty trip overseas.



The ring gear was a snug fit onto the Detroit
case and was easily pulled in place by the
bolts (with a tap from the light-weight hammer).



I cleaned the threads with starting fluid
and applied some blue Loctite on the 10
ring gear bolts. 70 ft/lbs.



I set the backlash in the 5~8 thou area
while making sure the carrier pre-load
was very tight.



The bright yellow paint that Randy supplys
makes it easy to see the pattern.

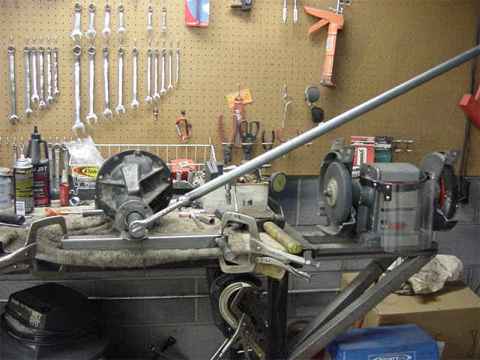

I use this easy to turn bar with a handle
loosely attached to the flange.



Drive side....86 thou.... Too deep.....



coast side .086"



Drive side .076" still deep



coast .076"



Drive side .066".......close



coast 066



Drive side now with .056"..... backlash 8 thou



coast. 056



After consulting with Flexor, it was decided
to try going deeper. So I started way deep.....
at .117"(adjusted value) driveside above.



coast .117



drive .096



coast .096



drive .086



coast .086



I added .007" to the last set of painted
pics for a final adjusted pinion value of
.093 with .007 BL. I did not want the nut
to loosen up under even the most extreme
situation...so I used the equalizer.



I cleaned the threads prior to using the
blue loctite. Denting the nut was not
required because of this.



Flex did not have a dust shield on his
flange....and I guess it's really not
needed especially in this Arizona type
of climate. The seal is a bit unique.....
I kinda like it. There's the part
number if you do too.



One 3rd ready for pick-up. Pinion
pre-load is right at about 5 in/lb.....
carrier bearing pre-load set extra
tight(was not measured but felt like
100 ft/lbs) to minimize ring gear
 deflection under high loads.
