Mike's Rear V6 3rd Gets A Harrop/Cryo/456 Nitro Gears |
---|
(55 BIG pics loading) |
DEC 20 2016 |
|
2 boxes received from Mike. The yellow bands are a nice touch. One is the rear and one is the front. |
---|
|
Well wrapped. The grey foam was the greatest cushion for the 3rd. |
|
Michael's gear package product was also received from Just Differentials. |
|
Both of his Harrop elockers also arrived. Not a big fan of that electro-static popcorn stuff. |
|
These pics are also in the other main link. The 8" rear gears are in the group of 4. The gear in the lower right was a walk-in and is a Dana 60. |
|
Cryogenics International is 30 miles from me but worth driving the distance. |
|
Charles(owner) fabricates and sells these cryo chambers to numerous places....and overseas, too. |
|
The brainbox....computer controlled interface between the LN2 line and the chamber itself. |
|
488 Nitro back from cryo and his "old" 373 gears ready to go under the knife. |
|
Being an 07 model and being that Mike lives in sunny California, it's just plain nice to work on a relatively clean, rust free 3rd. Skipped a few steps but here is the 373 pinion being pressed out. |
|
This specialized seal tool easily removes the seal with maximum damage. |
|
Original pinion races are pressed out. |
|
The big inner pinion race is usually stubborn about staying straight..... |
|
.....but it can be done. |
|
Maybe it's the accessability but the outer race taps down very nicely. |
|
100% seated. |
|
Going to try a typical .080" shim for the 1st try. |
|
It's only a 12 ton but it's never let me down. |
|
Time to mount up the ring....but first to check for any burrs or rough spots. All looked great. |
|
Blue loctite and 70 ft/lb on all 10 bolts. |
|
Carrier bearings are pressed on. |
|
This end is all done. |
|
Now to mount up the pinion into the 3rd. |
|
Ready for the Harrop. |
|
The 2 tabs interfere with the top bearing cap. |
|
Just bend them a little to clear better. |
|
And the cap fits properly. The wheel adjuster is the last thing to install by screwing it in. |
|
Backlash is dialed in. |
|
Drive side....pattern is good but slightly shallow. |
|
Coast. |
|

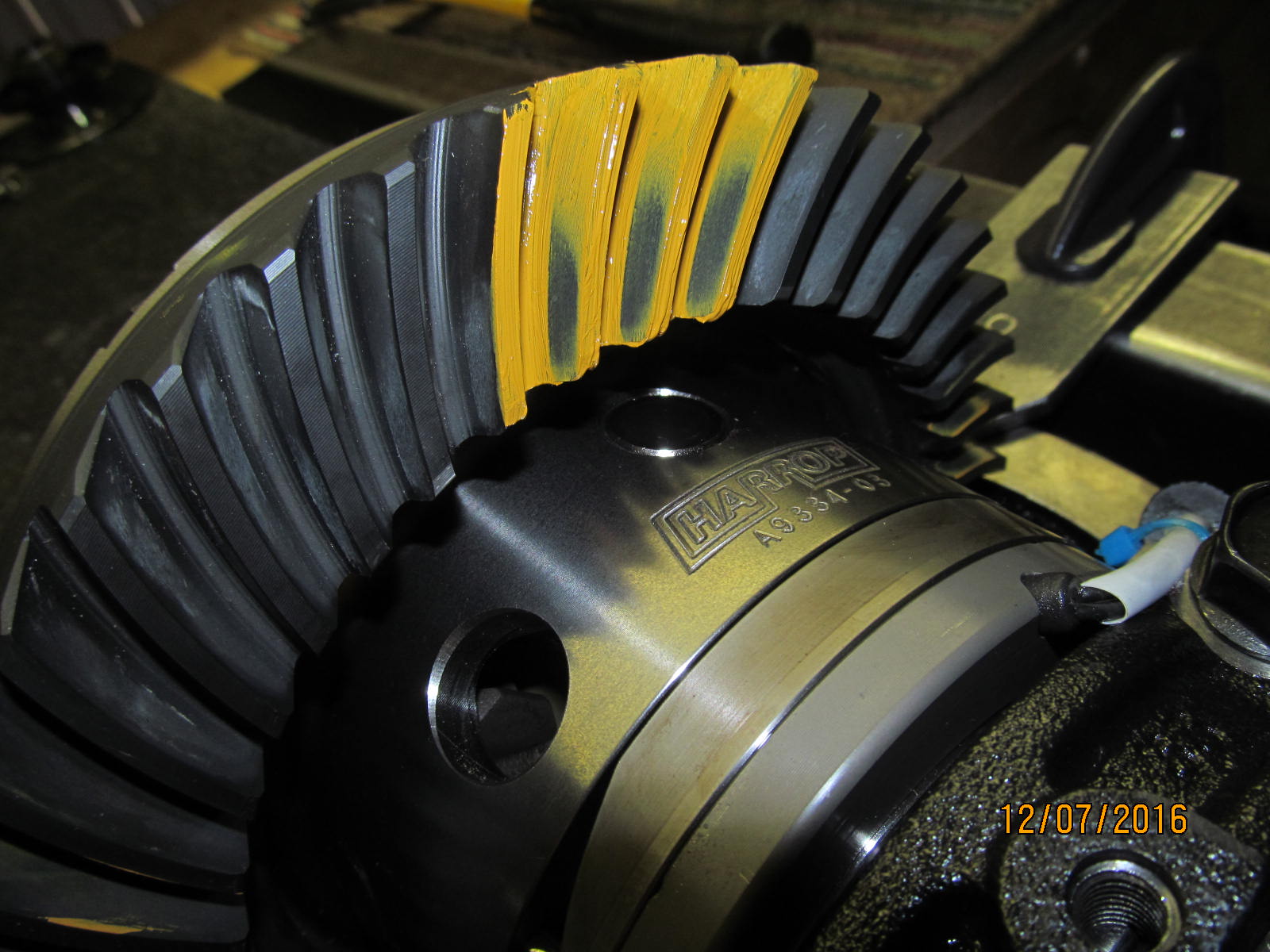

Drive...reverse painted. Agrees on the slight shallow. |
|
Coast....reverse painted. |
|
Comet tail is tucked in. |
|
................... |
|
The usual disassembly and pressing the bearing off. |
|
Only added .002" to the pinion depth shim and pattern is very good. |
|
Coast even looks better. |
|
Now to install the solid collar. |
|
It took 4 tries but the collar is now properly shimmed. 1.865" final |
|
The rubberized seal can be tapped on. |
|
A thin coating of gear oil on all rubbing surfaces. |
|
Final preload checked in at a nice 12 in/lb. |
|
The play in the tabs was measured at 2 mm per the spec. |
|
70 ft/lb on the 4 bearing caps. |
|
20 inch/pounds for total preload....carrier bearing plus pinion bearings. |
|
Backlash was measured on 20 teeth....every other tooth. .007" |
|
10 ft/lb and blue. |
|
Final locker test. 2.94 amps. All looks good. |
|
Dremel drill the data on the ring. |
|
...................... |
|
Have to find some more of this dense 2" foam....seems to really cushion the 3rd. |
