Jay From Canada Gets 488 Circle K Gears in 8" Elocker |
---|
(43 BIG pics loading) |
NOV 18 2016 |
|
Jay also sent an 8" low pinion elocker for a 488 re-gear. |
---|
|
Dis-assembly begins. |
|
Stripped 3rd was cleaned up and a coat of satin black applied. |
|
45 ft/lbs was verified on all 8 bolts. |
|
No burrs on the ring surface. |
|
The ring gear was a snug fit but the plastic hammer made it happen. |
|
Blue loctite and 70 ft/lb |
|
Carrier bearings pressed on at the same time here. |
|
This end is done. |
|
Large inner race tapped in place. |
|
Smaller outer race also tapped in place. |
|
A .077" shim will be the starter shim. |
|

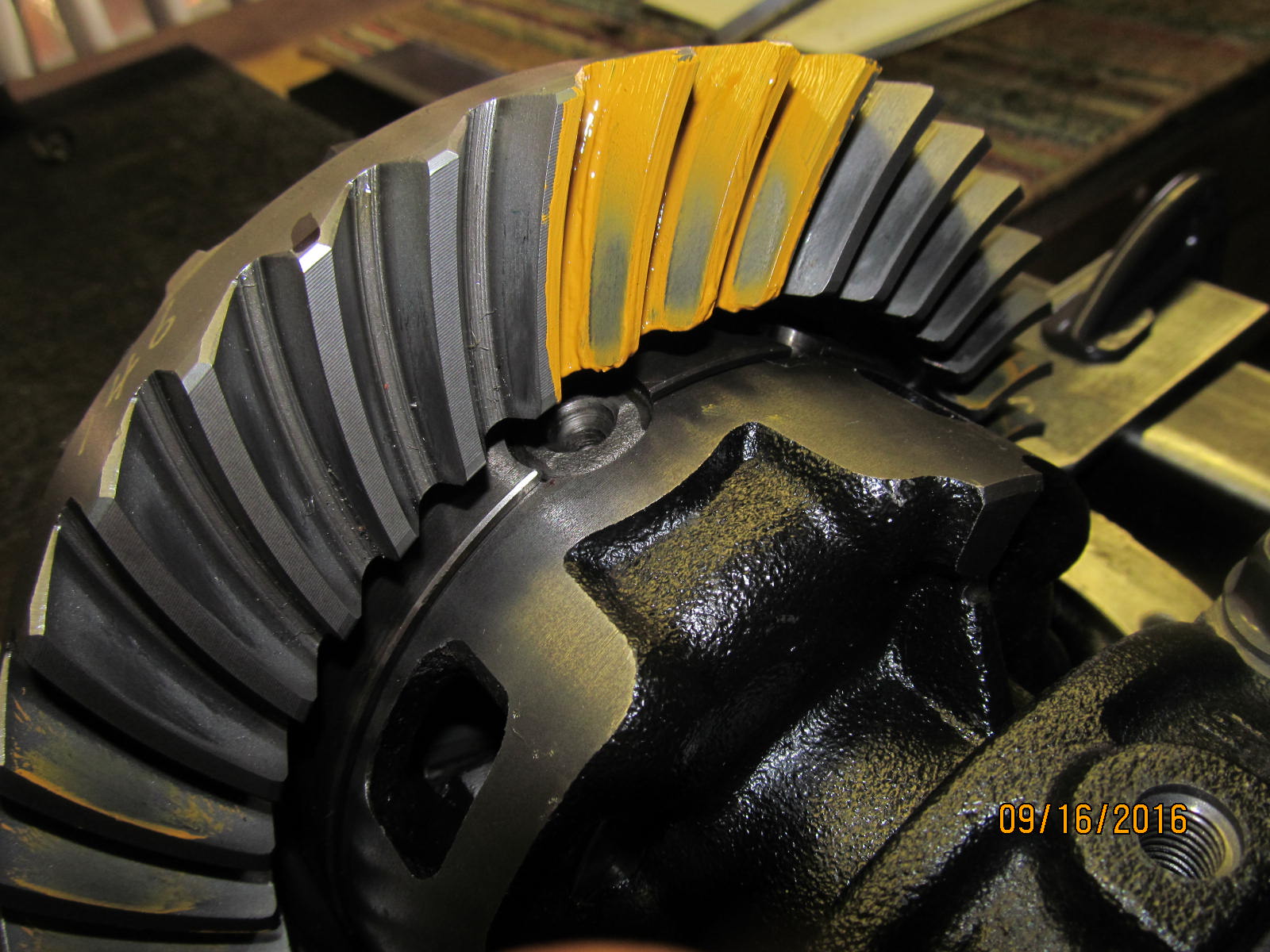

Drive......slight shallow. |
|
Coast. |
|
Drive of the pinion tooth....says slight shallow also with the comet tail tucked in like that. |
|
.......................... |
|
............................. |
|
Taking apart to thicken the shim a bit. |
|
Pressing the pinion bearing off. |
|
Making a significant jump from 077 to 082. |
|
The press just takes all the work out of it.....couldn't imagine trying to do this with a chisel and hammer. |
|
Solid collar can go in now but first, have to finish my coffee. |
|
On the 2nd shim I found the sweet spot. |
|
Drive.....looks good. |
|
Coast.....looks sweet. |
|
Pinion looks good. |
|
................ |
|
............................ |
|
So far, Marlin only sells an eco seal for the 27 spliners.....nothing yet for the 29 spline pinions. |
|
New flange goes in place. |
|
Hardened wasker and a new pinion nut. |
|
PPL measured at 10 in/lb. |
|
A ding and it will not loosen on its own. |
|
Carrier is installed now and tighten the four bolts to 70 ft/lb. |
|
Plenty of preload on the carrier bearings and backlash was measured on every other tooth. Backlash minimum was .006" |
|

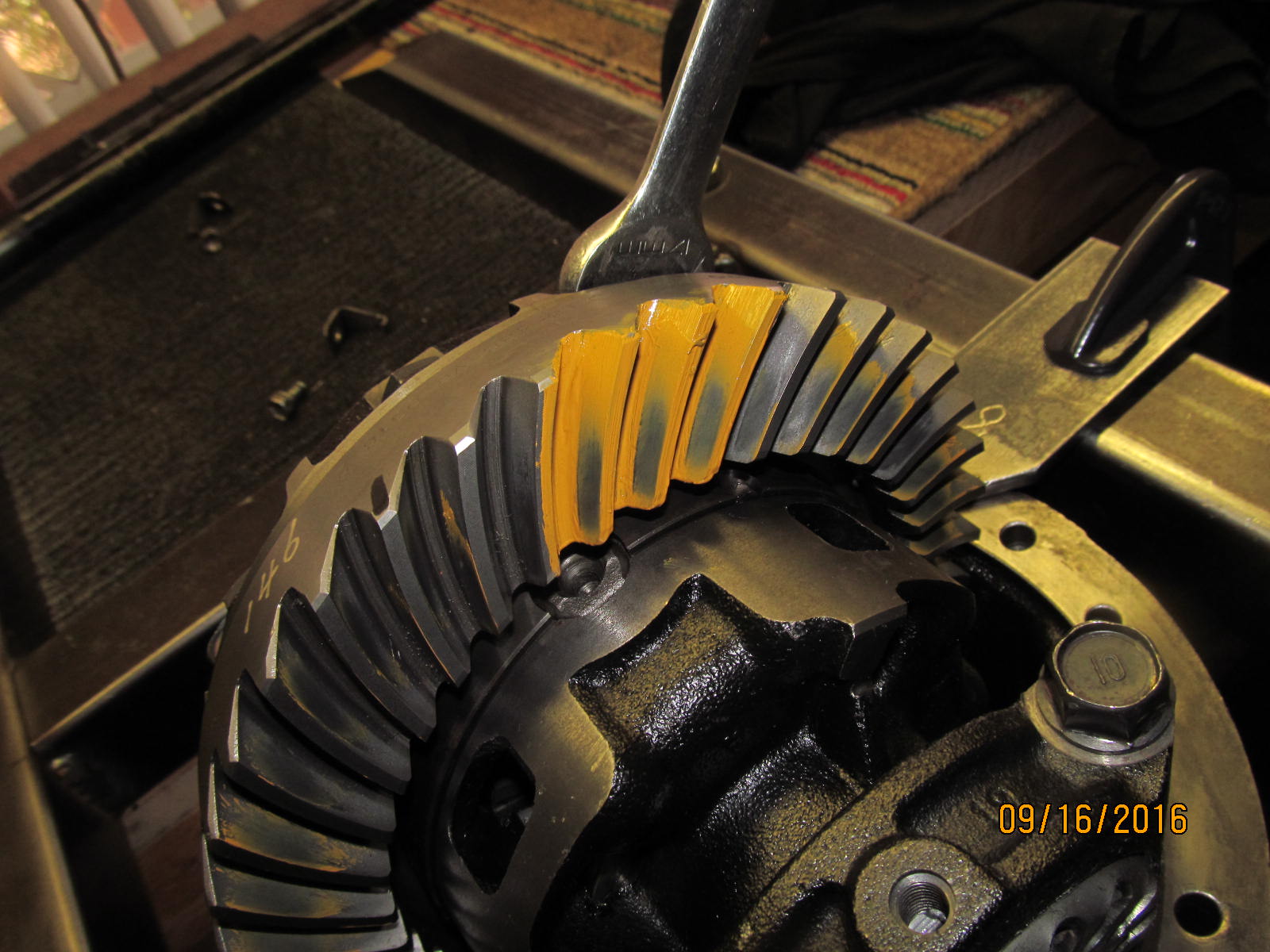

Drive side.....a nice perfect depth pattern that favors the toe end. Some call it a competition pattern. |
|
Coast. Typical of many of the coast side patterns. |
|
Pinion looks great. |
|
blue loctite and 10 ft/lb. |
|
A snapshot of the final notes. |
|
Bang the 4 corners in....it allows this box to squeeze into the outer box a lot easier. |
|
Packing up the completed 3rd. |
|
Back to Canada. By the way, cost around 120 USD plus whatever the duty tax runs. |
