Jordan lives in sunny California and his 4Runner was in the middle of new axle bearings so why not upgrade the traction a bit with a new TT? The TT was sent to me and I had a V6 core ready for build up. Jordan's "old" 410 3rd is in perfectly good shape and is up for sale for anyone interested. |
---|
|
New outer race is tapped in. |
|
New inner race tapped in. |
|
....... |
|
100% fully seated. |
|
.079" pinion shim is pressed on with the new bearing. |
|
The pinion was then mounted in the empty 3rd. 20 in/lb max PPL for this upcoming paint test. |
|
Time to mount the used 410 ring gear. |
|
New Koyo carrier bearings are pressed on. |
|
70 ft/lbs and blue Locktite. |
|
Now the TT can be mounted. Dial in the backlash and some carrier bearing preload.... |
|
Drive side....a touch too deep for even me. |
|
Coast....too deep. |
|
Drive...reverse painted. |
|
Coast....reverse painted. |
|
Even the drive side of the pinion tooth says too deep just looking at the comet tail. |
|
See how the tail favors the top of the tooth? |
|
Teardown.....pressing out the pinion. |
|
A thinner .075" shim is pressed on..... |
|
Re-paint.....Drive side....looks beautiful. This a good used 410 gear set. |
|
Coast....nice. |
|
drive....reverse painted. |
|
Coast....reverse painted. |
|
................... |
|
Now the comet tail favors the root. |
|
One last teardown to install the solid collar. |
|
On the 2nd try, I got the preload just right. Can take up to 6 times to do this operation. |
|
New oem seal is installed. |
|

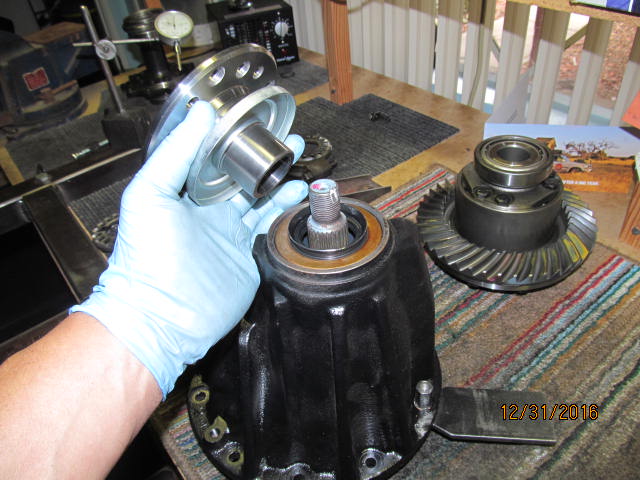

New triple drilled flange is next. |
|
Preload is firmed up and the nut is DINGED!! |
|
Caps are tightened to 70 ft/lb. |
|
The total preload is measured to make sure there is plenty of carrier bearing preload. |
|
Backlash was checked on 20 teeth. .0055" minimum. |
|

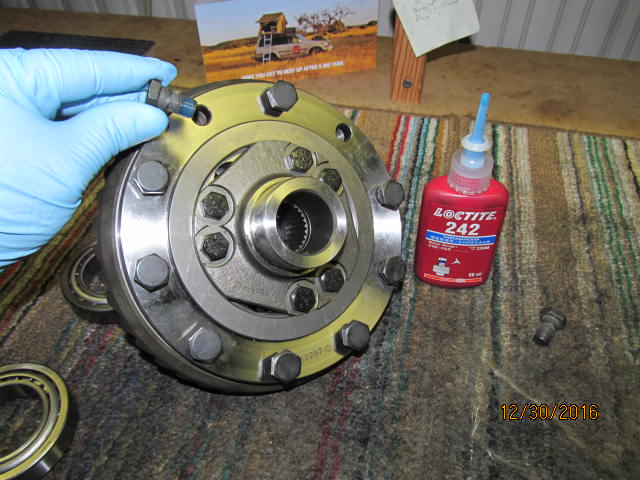

Blue Loctight and 10 in/lb. |
|
................. |
|
Notes of the install. |
|
Lots of ways to box the 3rd and stabilize it. |
|
................ |
|
Tape straps it down preventing it from rolling around. |
|
Packing foam is under some of that cardboard. |
|
Ready to go back to Fedex :) |
