Ray lives about 200 miles to the north of me up in Flagstaff so he made the trip down to Chandler
and dropped off a beat up V6 3rd. The plan is to install a new PRECISION 529 with master kit and solid collar.
|
|
|
Some cosmetic damage from the pinion running way too loose. :)
|
|
|
...
|
|
|
This is the lowest quality gear out there....Genuine gear. Here are the markings to help identify them.
Notice the sloppy mis-aligned alpha-numeric stampings. Sometimes it will be 5 digits.
|
|
|
...
|
|
|
...
|
|
|
I carefully removed one of the bearing caps and the adjuster was mis-aligned in the threaded slots. This is
not good for the carrier bearing as it might shift some.
|
|
|
This is the side that was cross-threaded in the grooves. Damage to the spanner threads on this one was minimal this time.
|
|
|
This one takes the prize....I've never seen a pinion bearing this mangled :) Where are the rollers?
|
|
|
The bearing was partially welded to the flange....the flange is in the garbage.
|
|
|
The Genuine pinion had a shim of .244" and that's about right.
|
|
|
The EZ locker inside this V6 case will require an inspection...
|
|
|
All looked good....no broken pins and the rectangular clutch teeth were all in great shape.
|
|
|
Pins and springs in good shape.
|
|
|
Both the ring and the case surface get the flat file to check for burrs.
|
|
|
Using the dial indicator with magnetic base, I checked run-out and it was less than .002 which is good.
|
|
|
The new V6 master kit...
|
|
|
Shown here is the Precision gear and the solid collar from Marlincrawler.com
|
|
|
The ring gear went on tight....the press and a couple pieces of wood made it easy.
|
|
|
The master kit from PORC has the high quality 10.9 grade ring gear bolts. The master kits from
ringpinion.biz also have these bolts. The bolts all saw 75 ft/lbs and red loctite as usual.
|
|
|

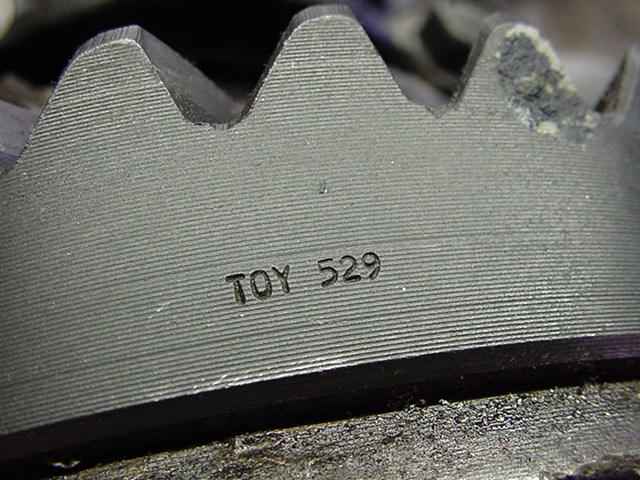

Markings found on the Precision gears...the old Precision gears that I remember had the "PG" emblem on them.
Although these do set up nice, I still prefer the old 'original' version as my all-time favorite.
|
|
|
Somewhat deep.
|
|
|
...
|
|
|
To change to a thinner shim, a complete breakdown is needed.
|
|
|
Much better and only 3 thou less than before.
|
|
|
good
|
|
|
...
|
|
|
Final pinion pre-load ended up at 10 inch/pounds. It's nice to have the right torque wrench and
it was only $36.
|
|
|
The new nut has red loctite and about 200 ft/pounds.
|
|
|

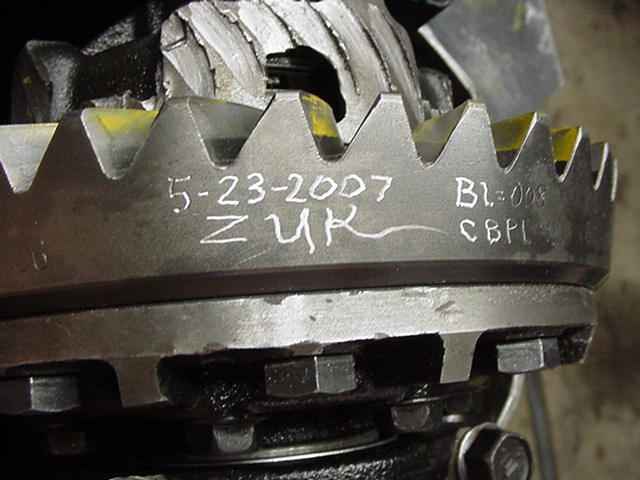

I like to engrave the ring gear with critical info.
|
|
|
Done!
|
|
