A new elocker is available for the Toyotas...HardBlock elocker...2016 Taco sport
(80 BIG pics loading)
OCT 24 2026

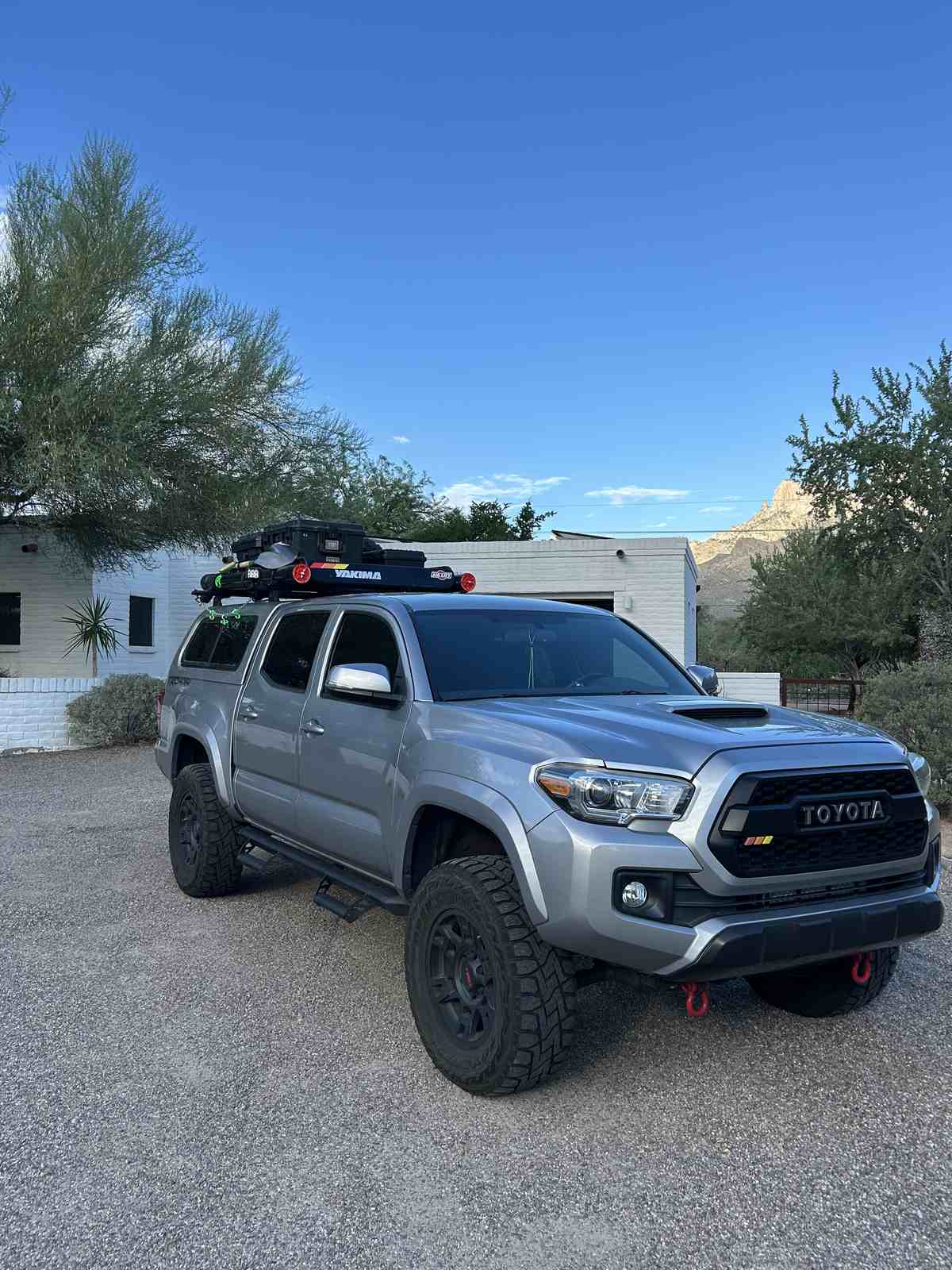

Chris's 3rd gen 2016 Tacoma Sport. Mods before the regear and elocker include
34" Toyos/2" Billstein 5100 shocks/air bags in rear/yotawerx tune. The addition of 529
Revolution Gears and a recently released elocker really does step
up the game.

Chris tows this 5000 pound camper once or twice a year....it's been all over
the Southwest and up to Yellowstone National Park.


Skipping ahead....Chris installed the new 3rds....here is what he texted me.....
Morning! Everything went back together perfect! Feels like a brand new truck.
Thanks again I really appreciate your attention to detail!

I tested it last night. Very smooth engagement. I'm going to take it on
some trails this weekend to see how it does.

Engages perfectly while turning. Disengagement is a little slow while turning.

I also had to connect the wiring to get it to disengage after install. I was
just going to leave the wiring for another day but the locker stayed locked
until I wired it up. Just a note for any future hard block installs.

Let's get right into it. This new elocker has my attention. It has a number
of design improvements over the Harrop/Eaton elockers.

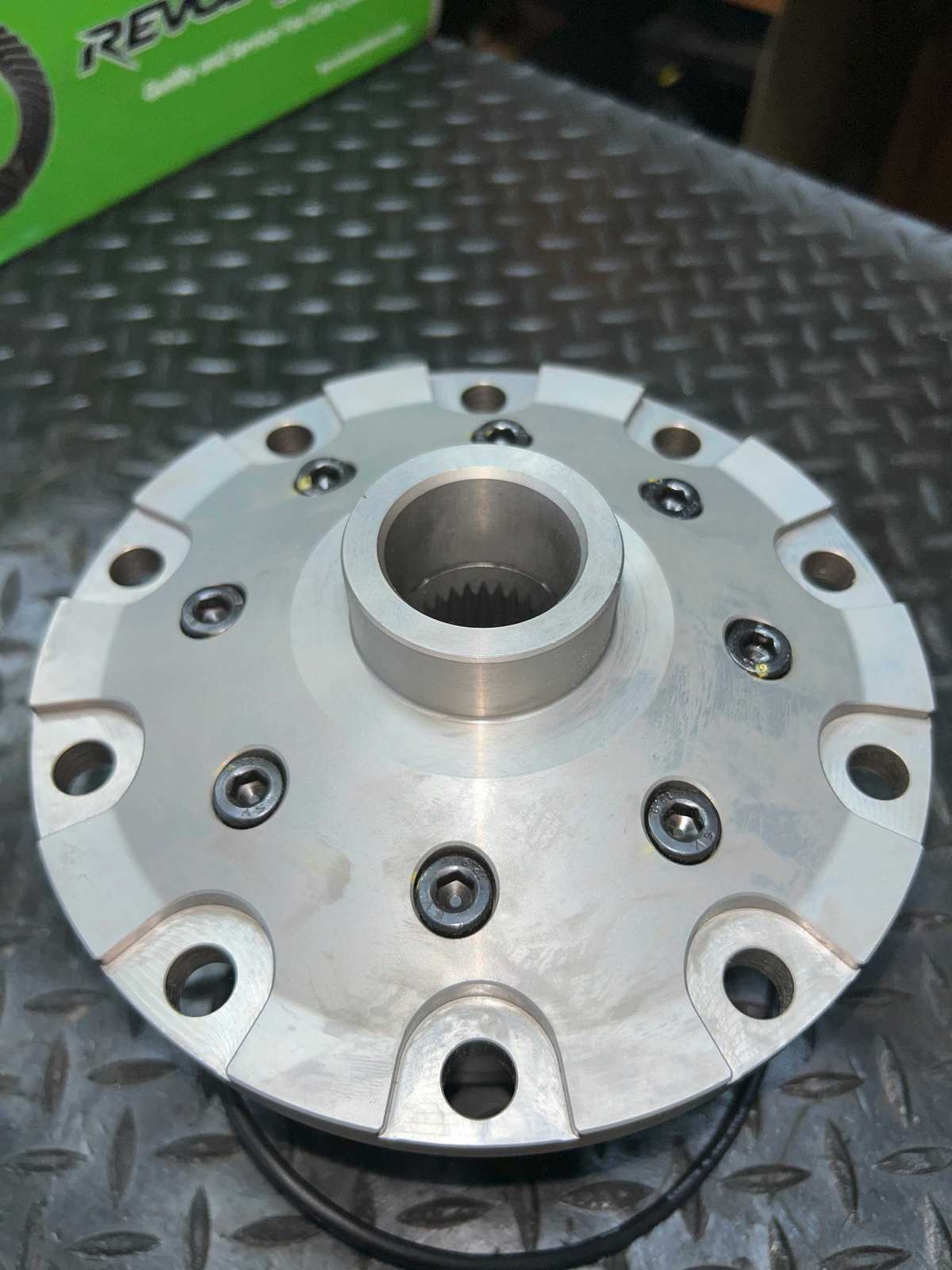

For one, the "stop tab" has been machined into the cap...no more 2
tiny token TIG spot welds.

Also, the rubber grommet for the pass-thru wire is greatly improved. Now,
it installs from the OUTSIDE and has a large surface area for the RTV
sealant to adhere to.

And the internal mechanical improvement is the use of about 12 ball bearings
for the engagement process. No more ramp ring for engagement.

Machine work is high quality yet simplistic.

Hardblock elocker----How it works click here.

Contact info

AI Overview

U.S. Patent No. 12,092,195 was issued in 2024 to the company HardBlock.

Patent Summary

The patent protects a high-performance electric differential locker system designed for off-road vehicles.
• Core Mechanism:: Features a patented ball-locking mechanism utilizing a 100% mechanical lock with
locking pockets, steel balls, and locking ring pockets.
• Key Functionality: Allows the differential to safely engage while driving under a load and incorporates
active demagnetization to ensure fast, predictable disengagement.
• Operation: Works via a simple, integrated electric push-button system, completely bypassing the need
for external air compressors or air lines.


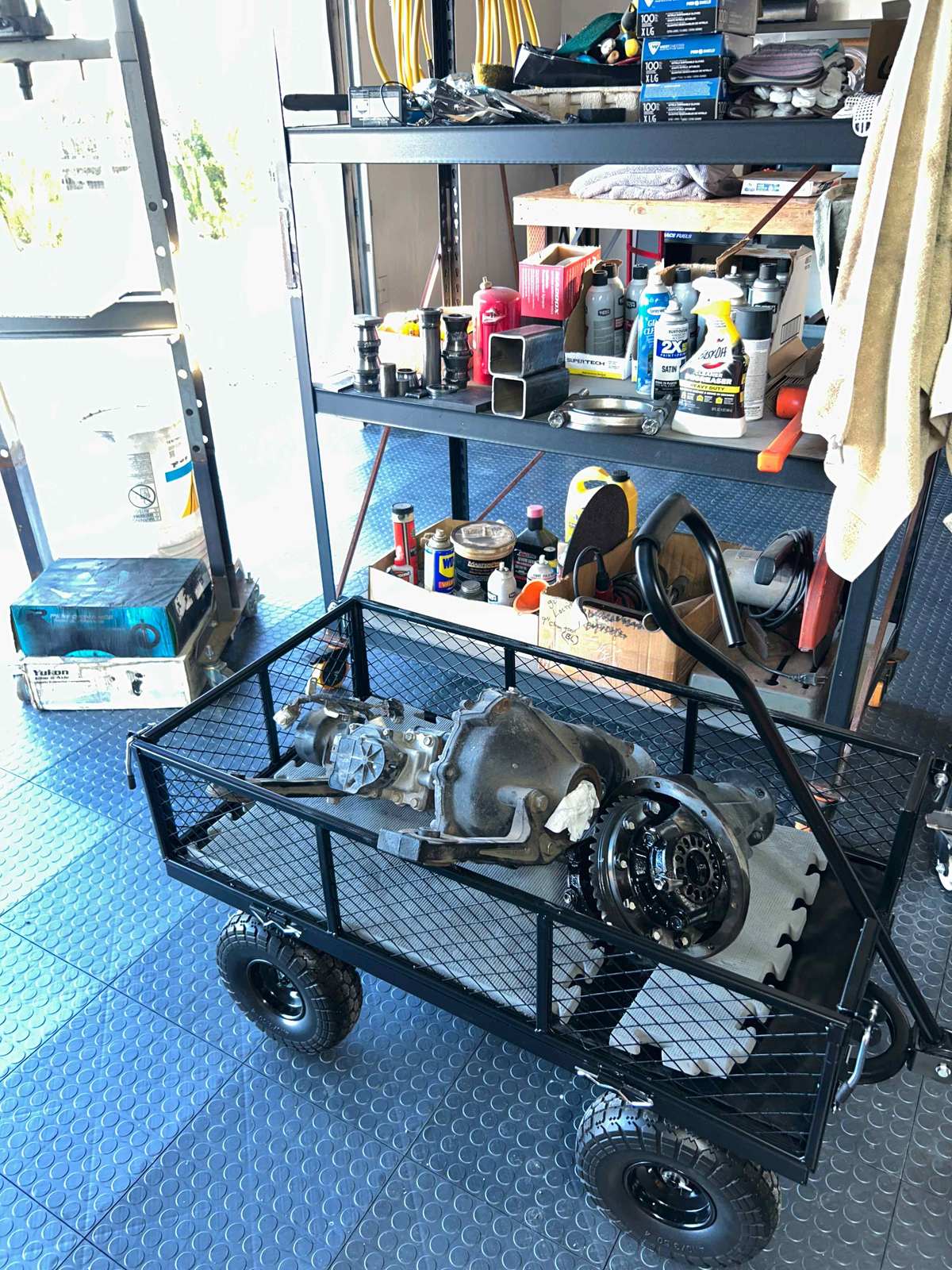

I think we will start with the rear 8" diff.

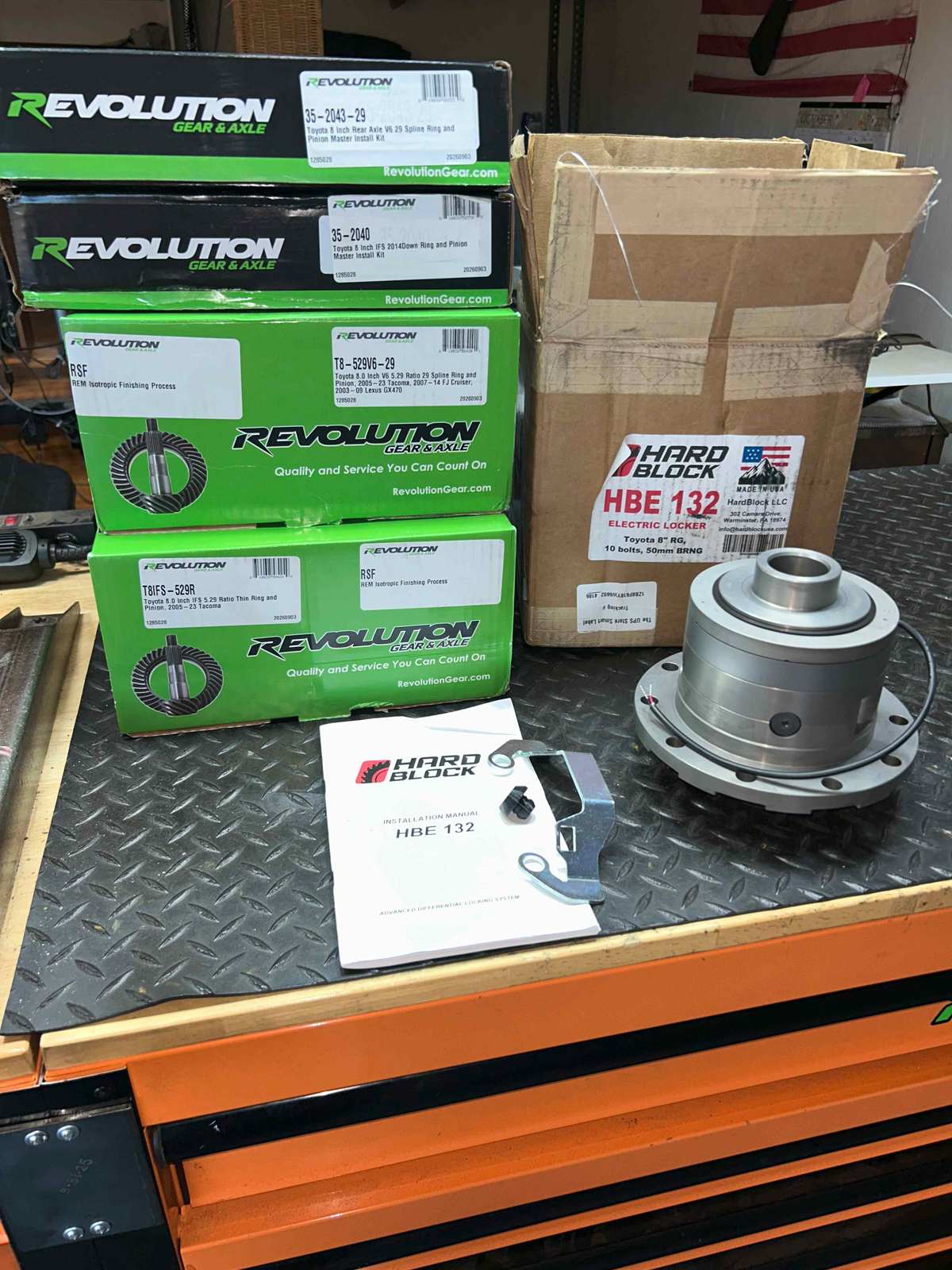

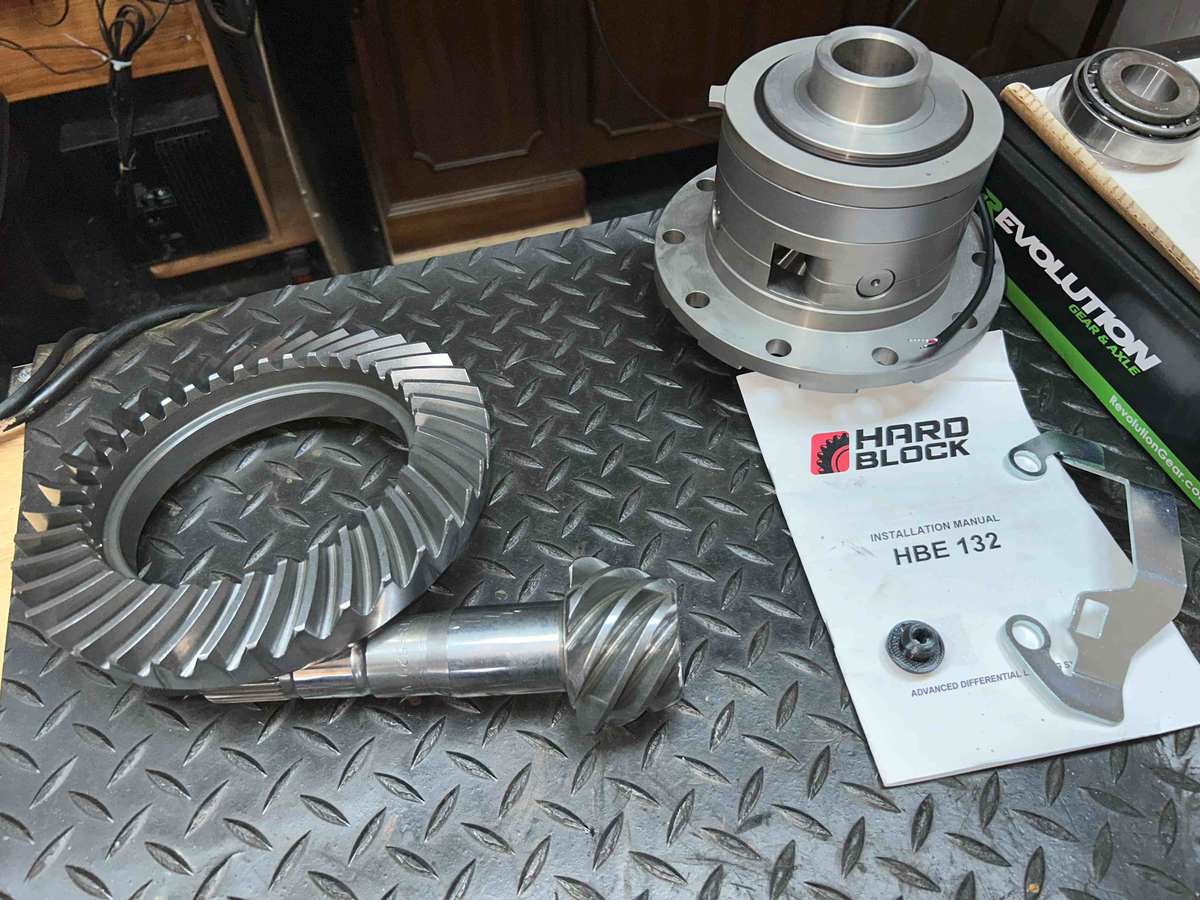

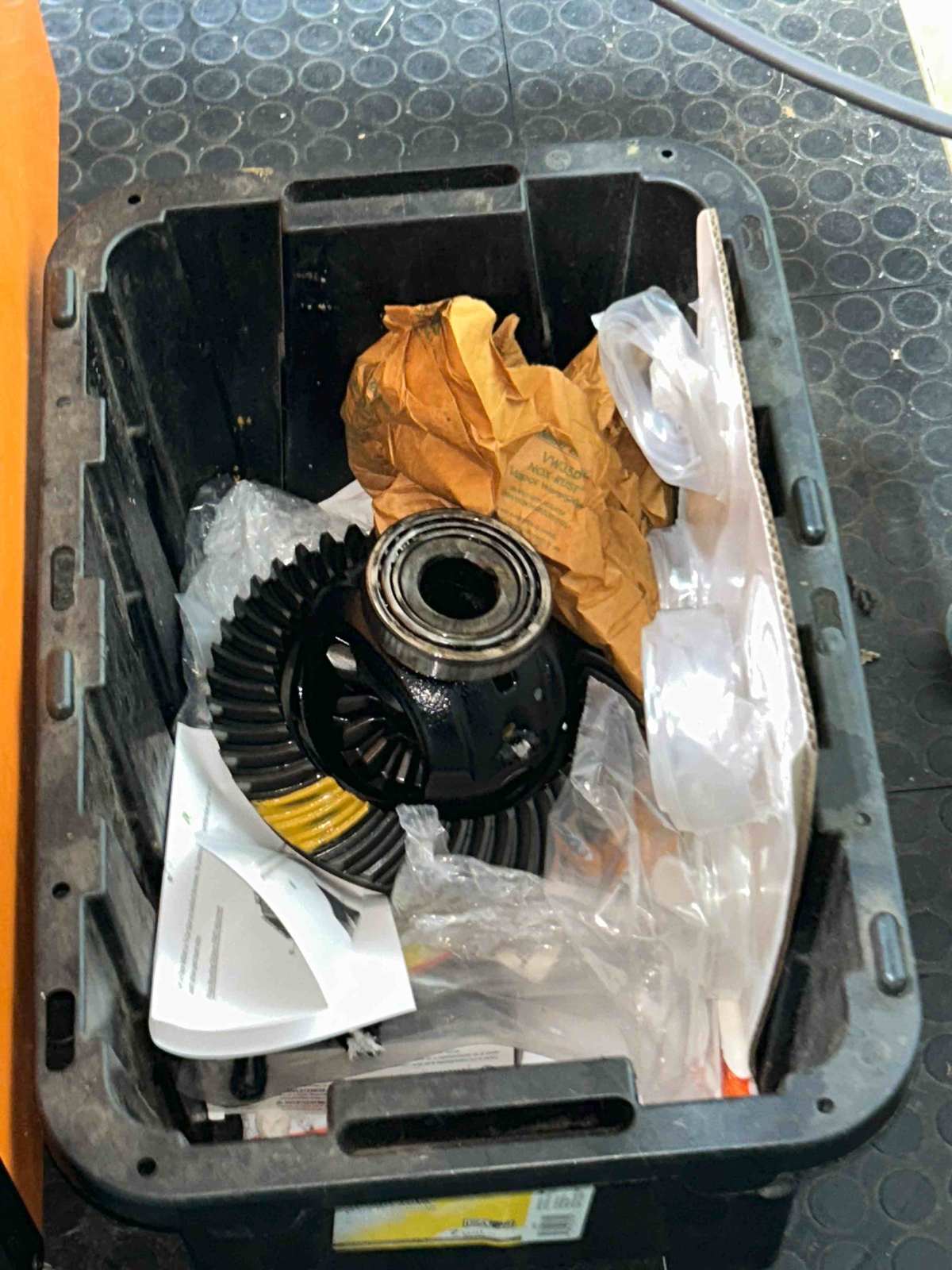

2 ring/pinions...2 master install kits...and 1 Hardblock elocker, of course.

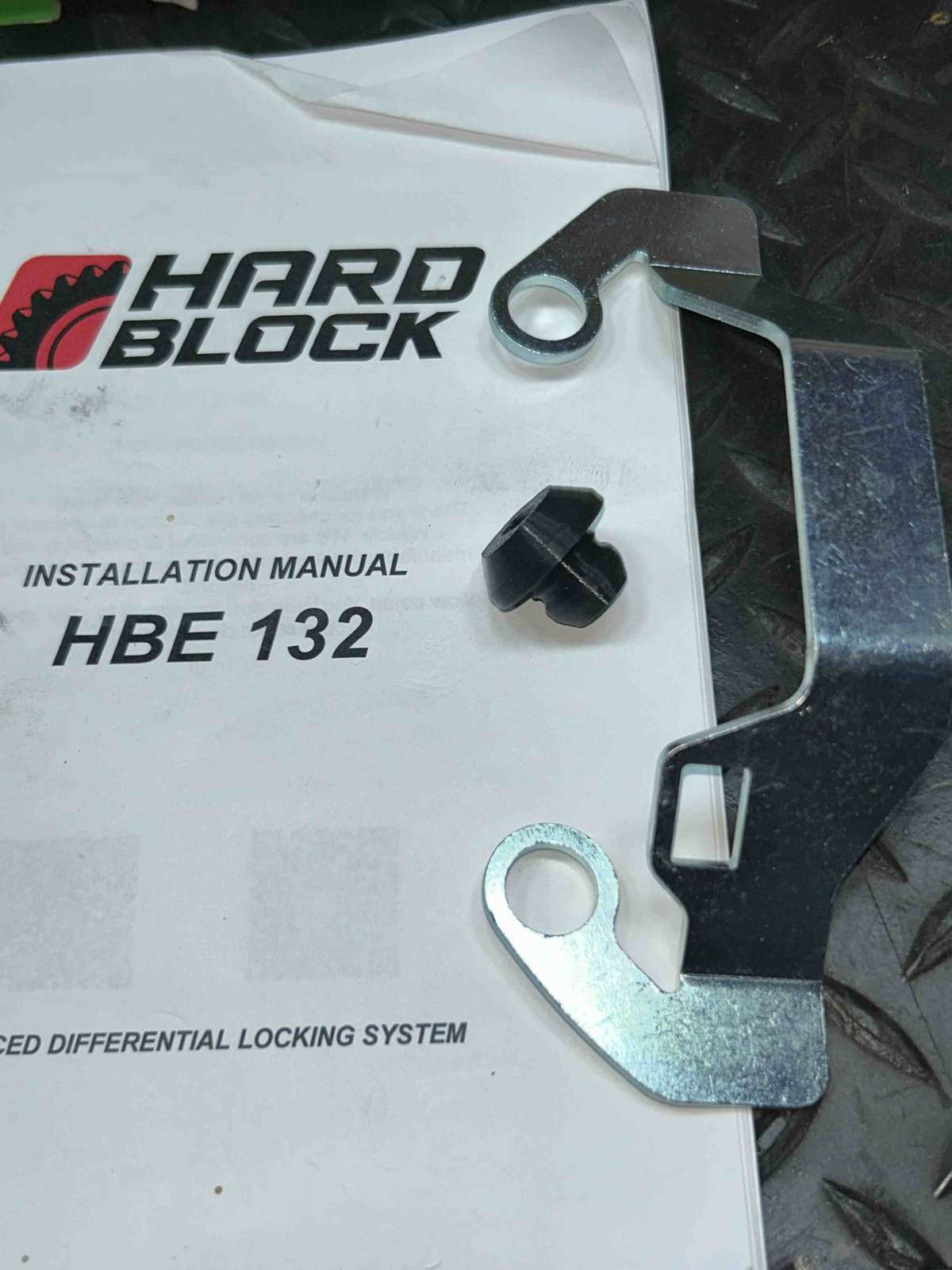

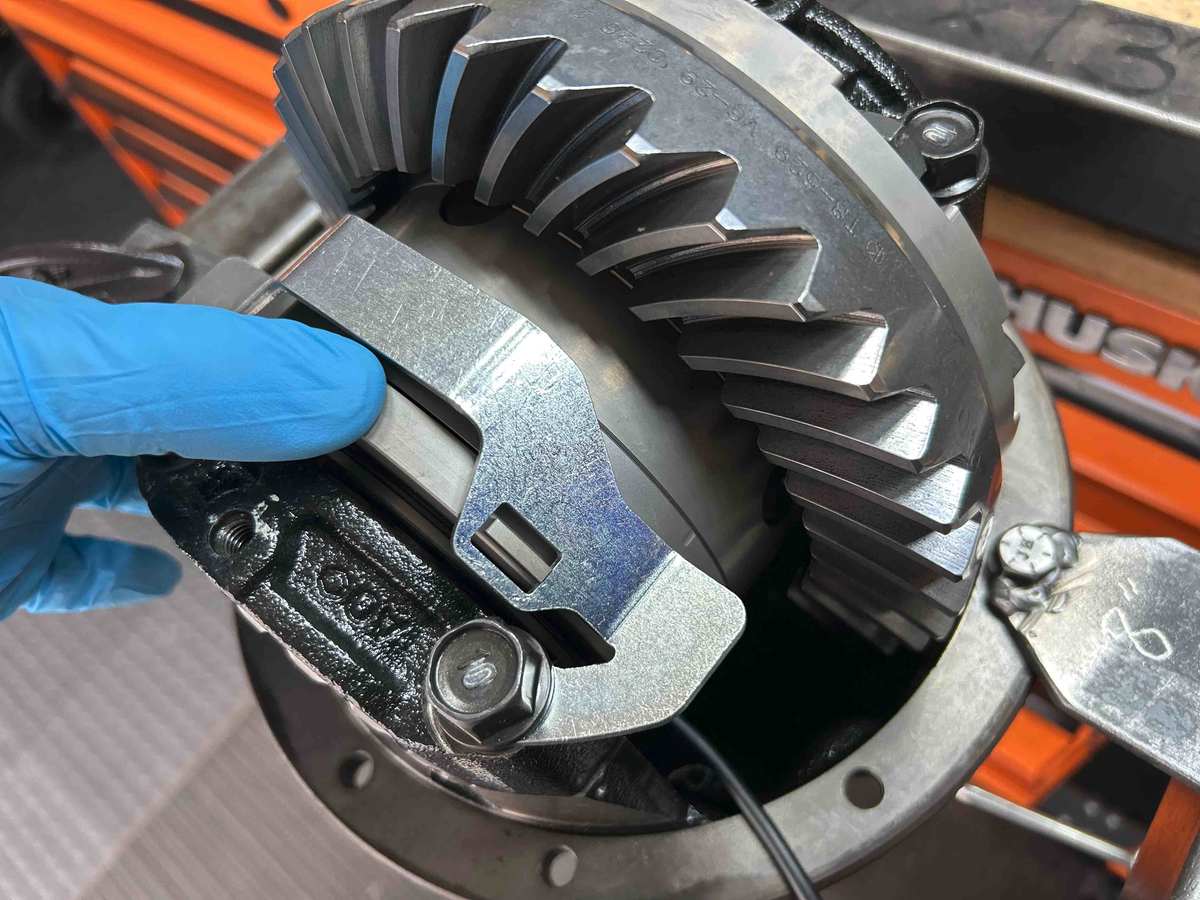

The punched out bracket was spot on...the rubber grommet was next level!

The Tacoma Sports have this 8" diff.

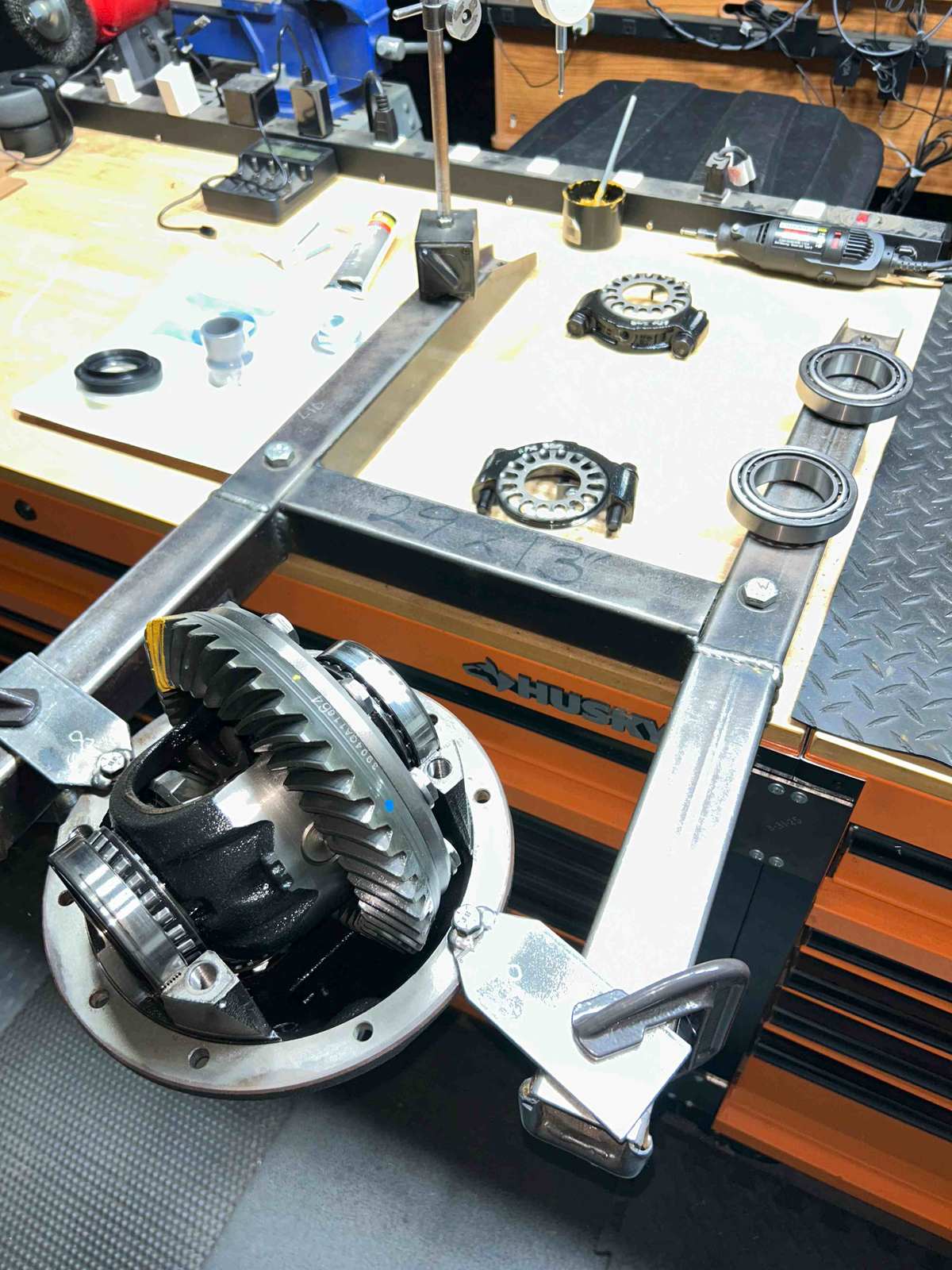

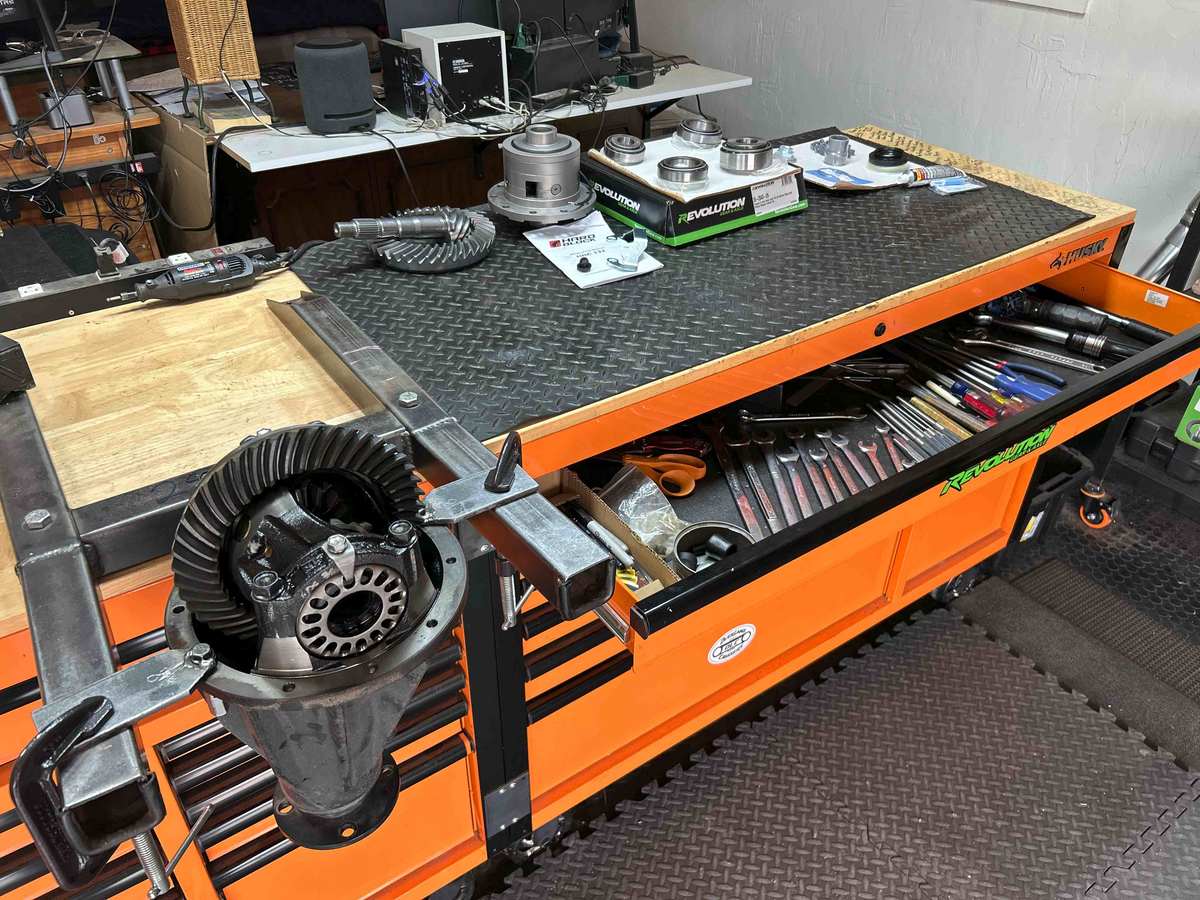

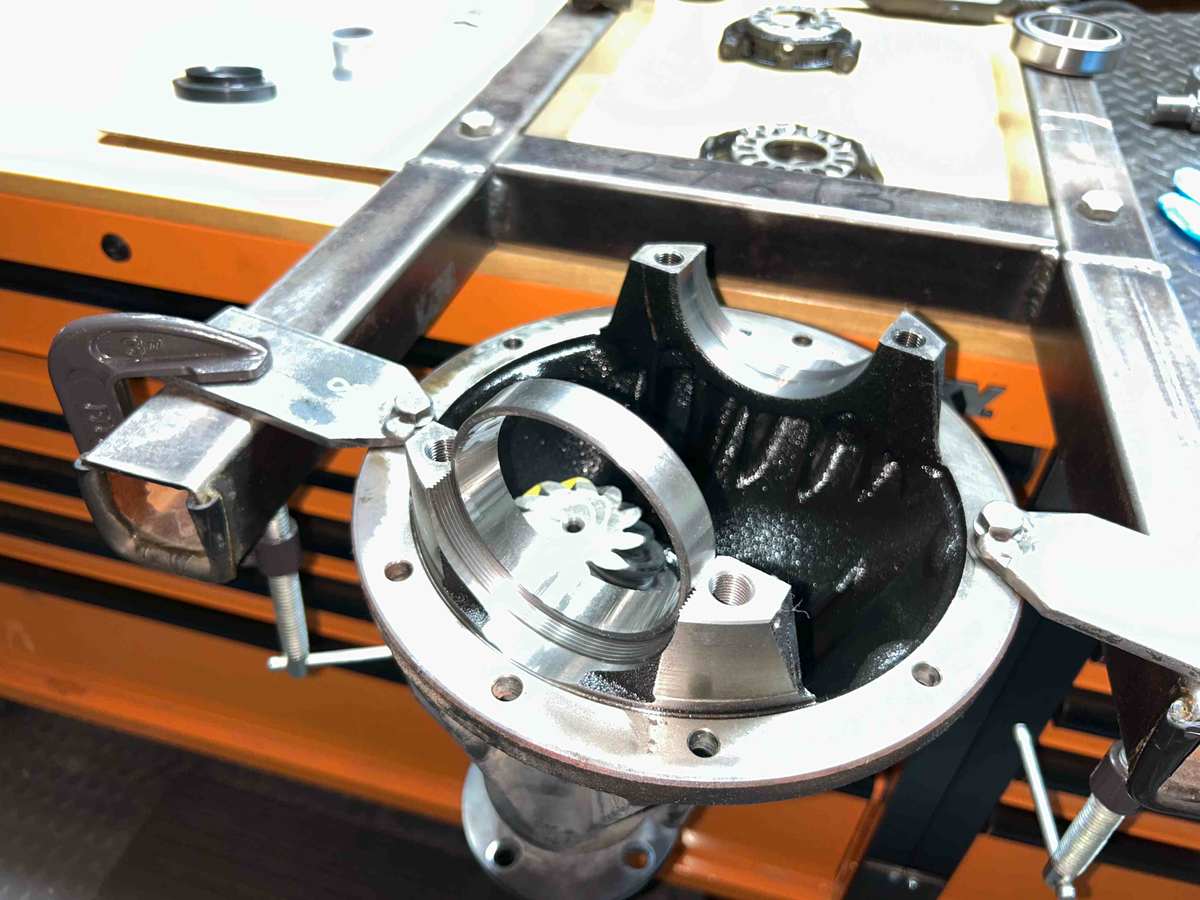

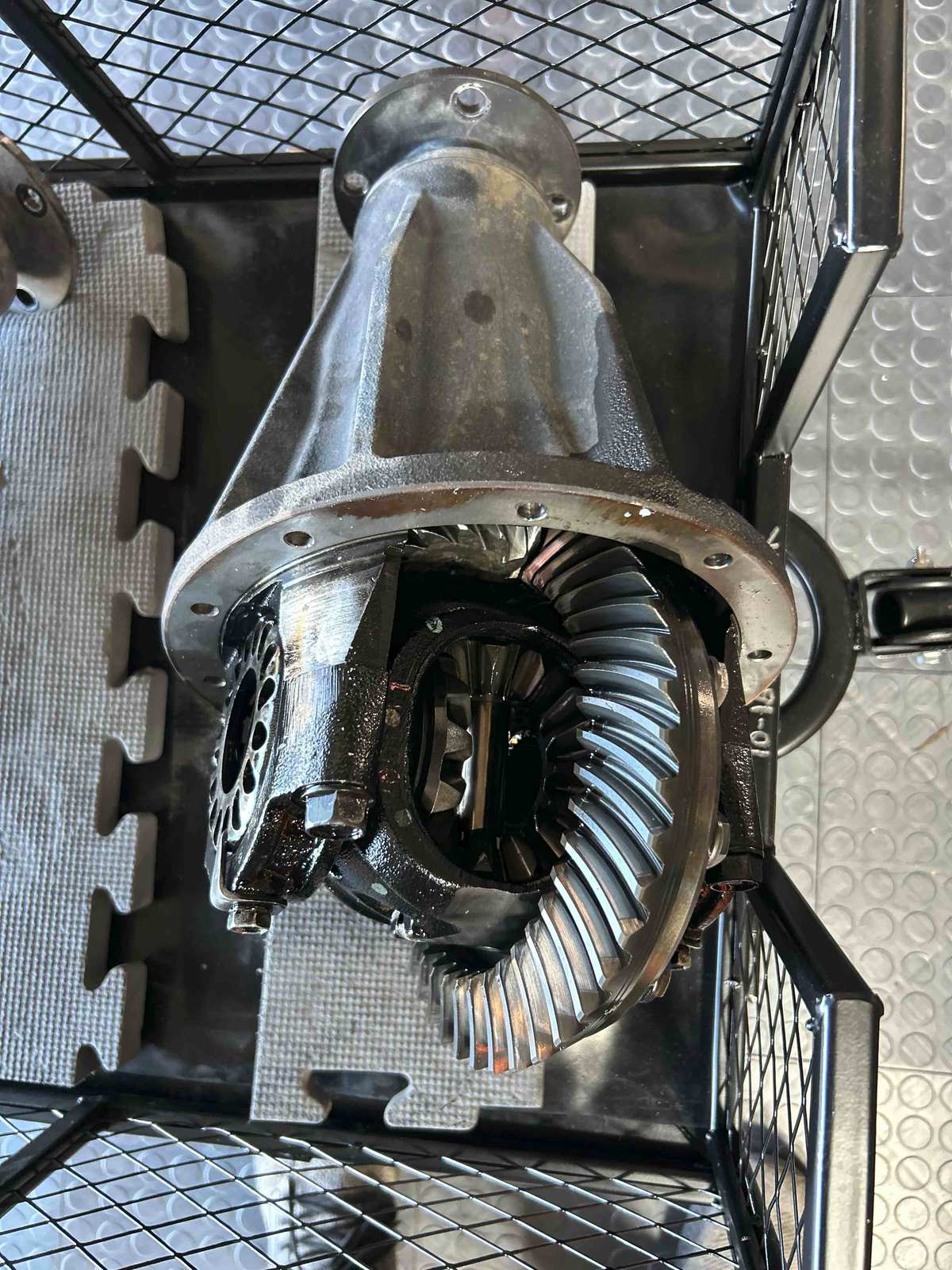

Diff is mounted in the fixture.

5.29 "isotropic finish" (super polished).

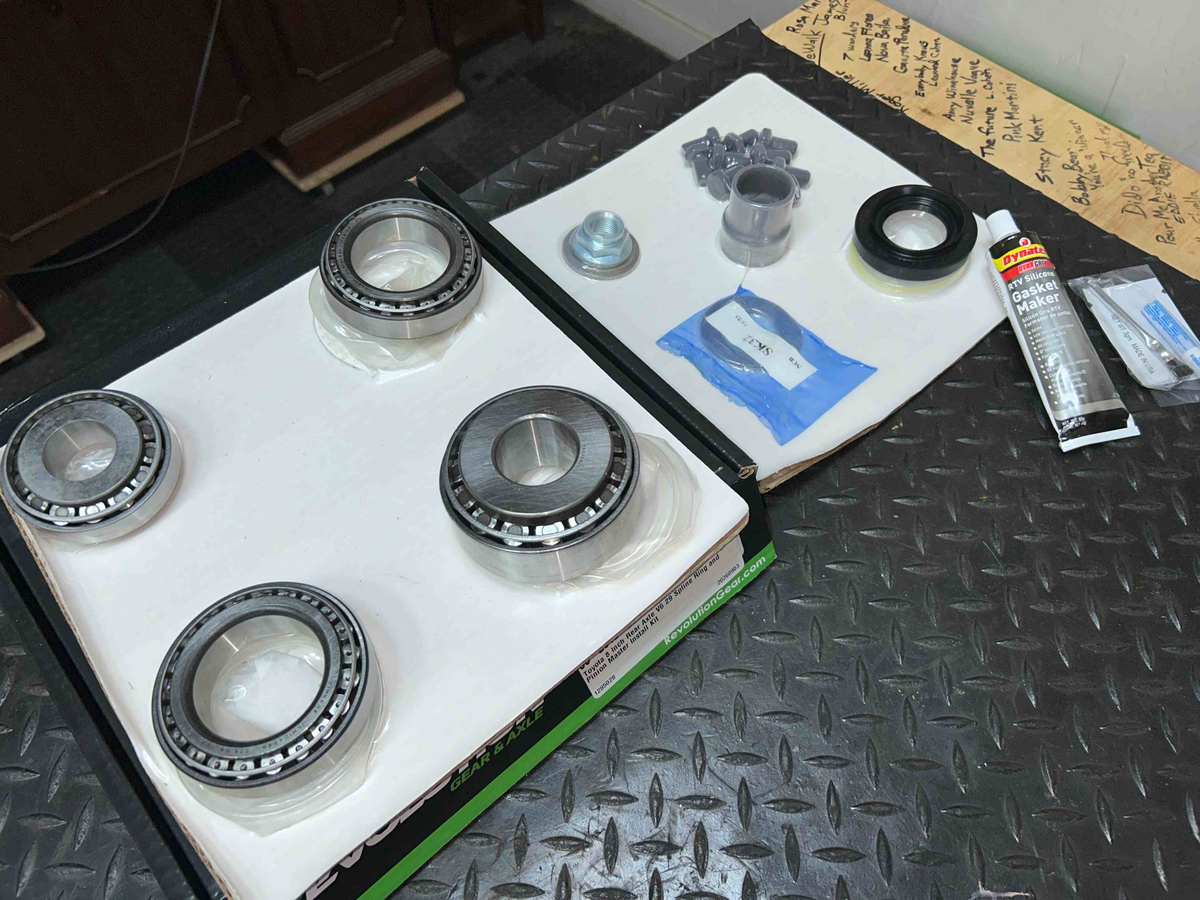

The master bearing kit for the 8"....the pinion bearings look great.
I will be taking a closer look at the carrier bearings though.

These stock gears (3.91) were pulling that 5000 pound camper so I was curious
what the painted pattern looked like and I like what I saw.

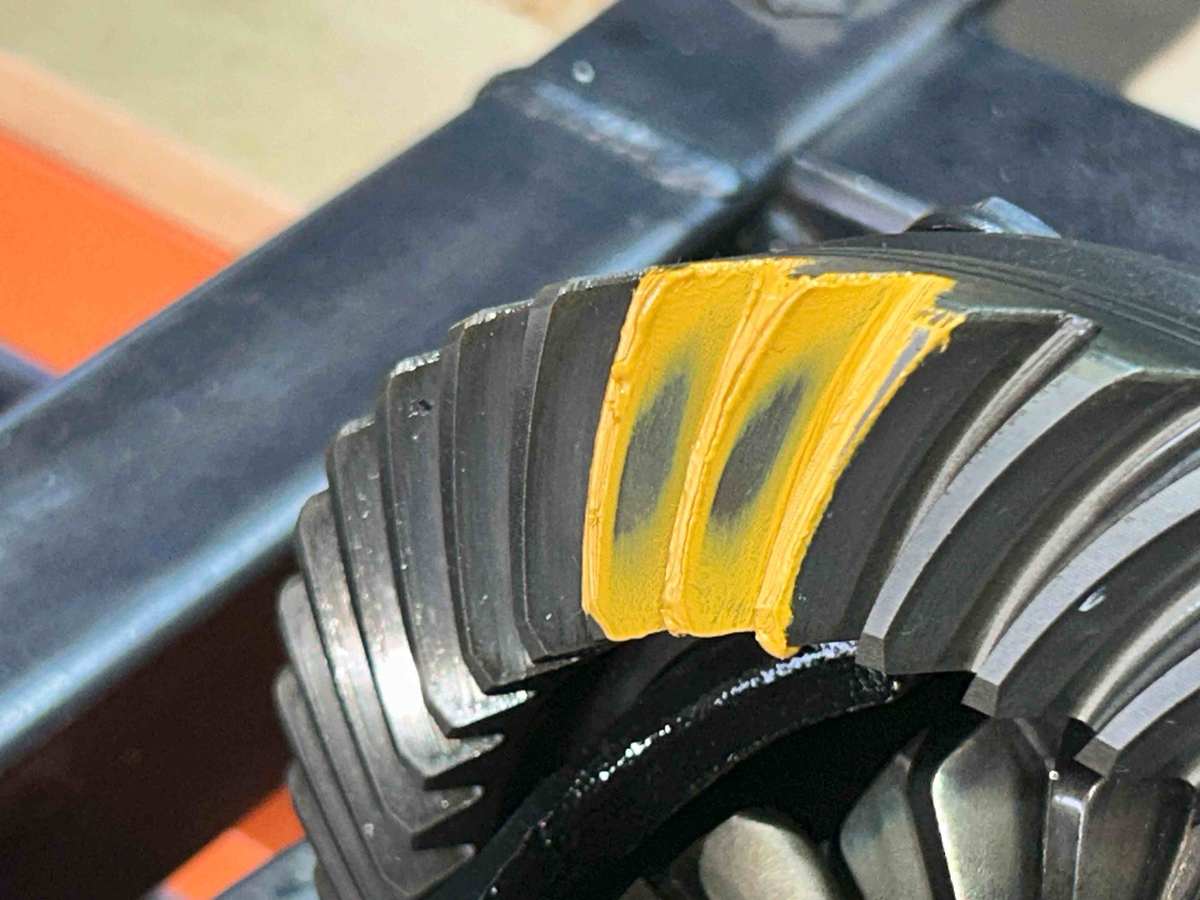

Drive side...2 cut gears....nice and centered...pattern is very good.

Coast side was excellent.

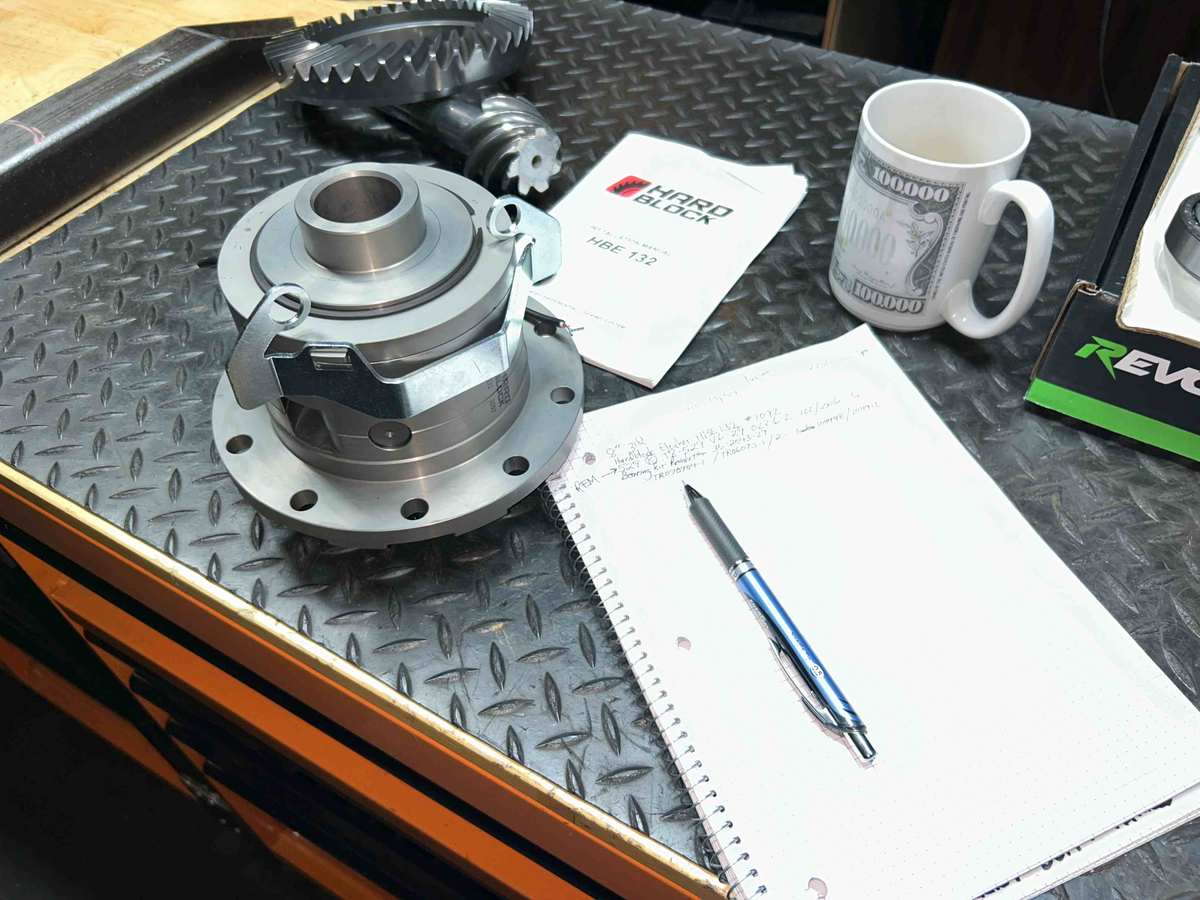

Reviewed the HardBlock instructions and liked what I read.

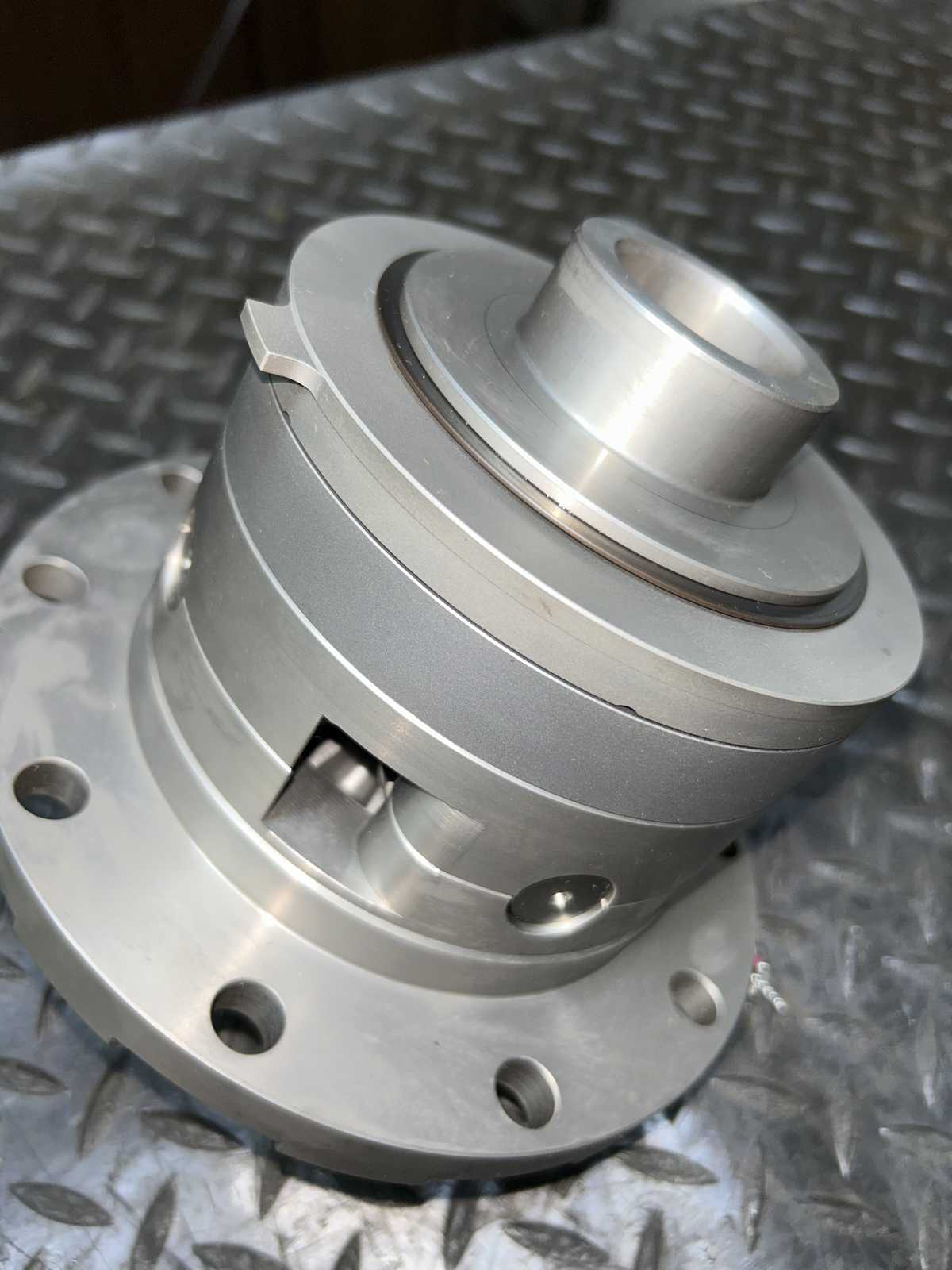

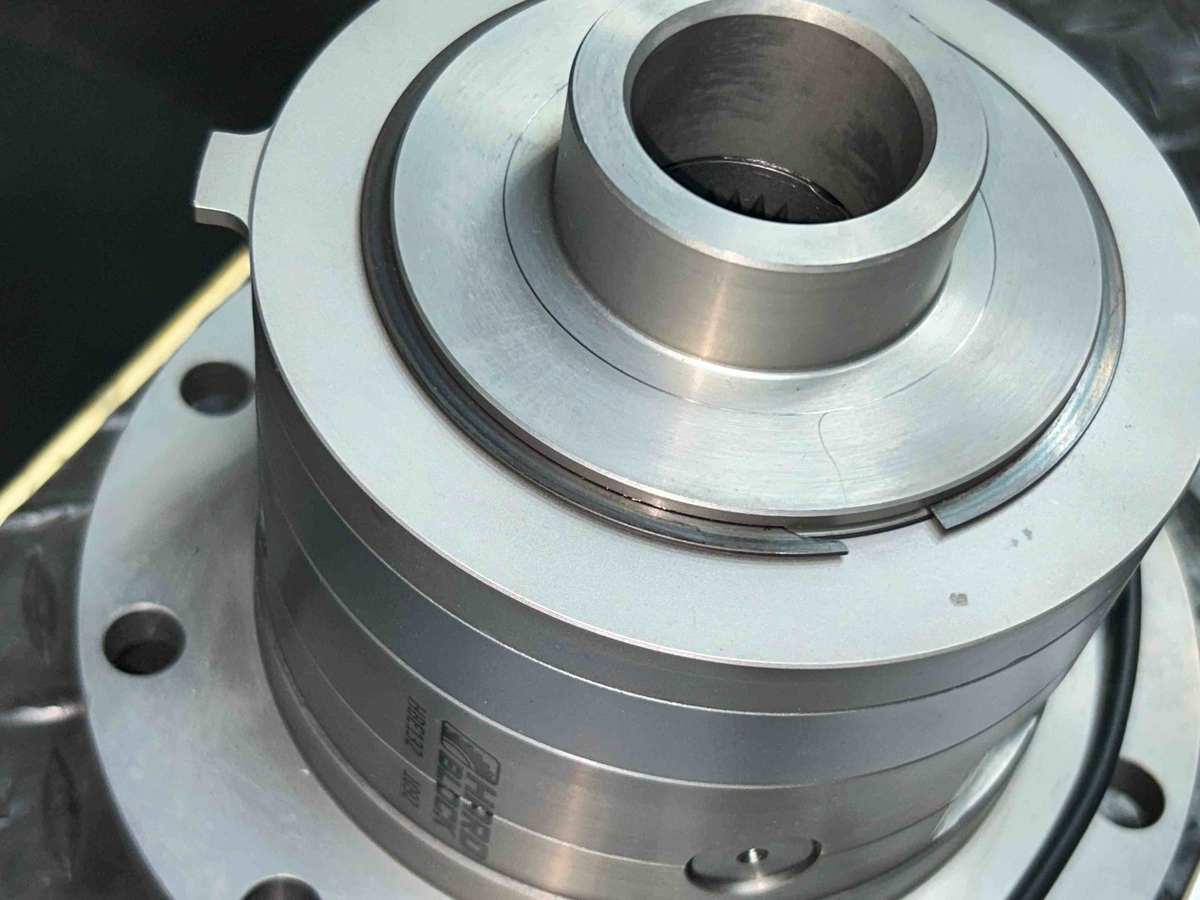

Notice the "stop tab" is not spot welded like the others...it's part of the end cap.

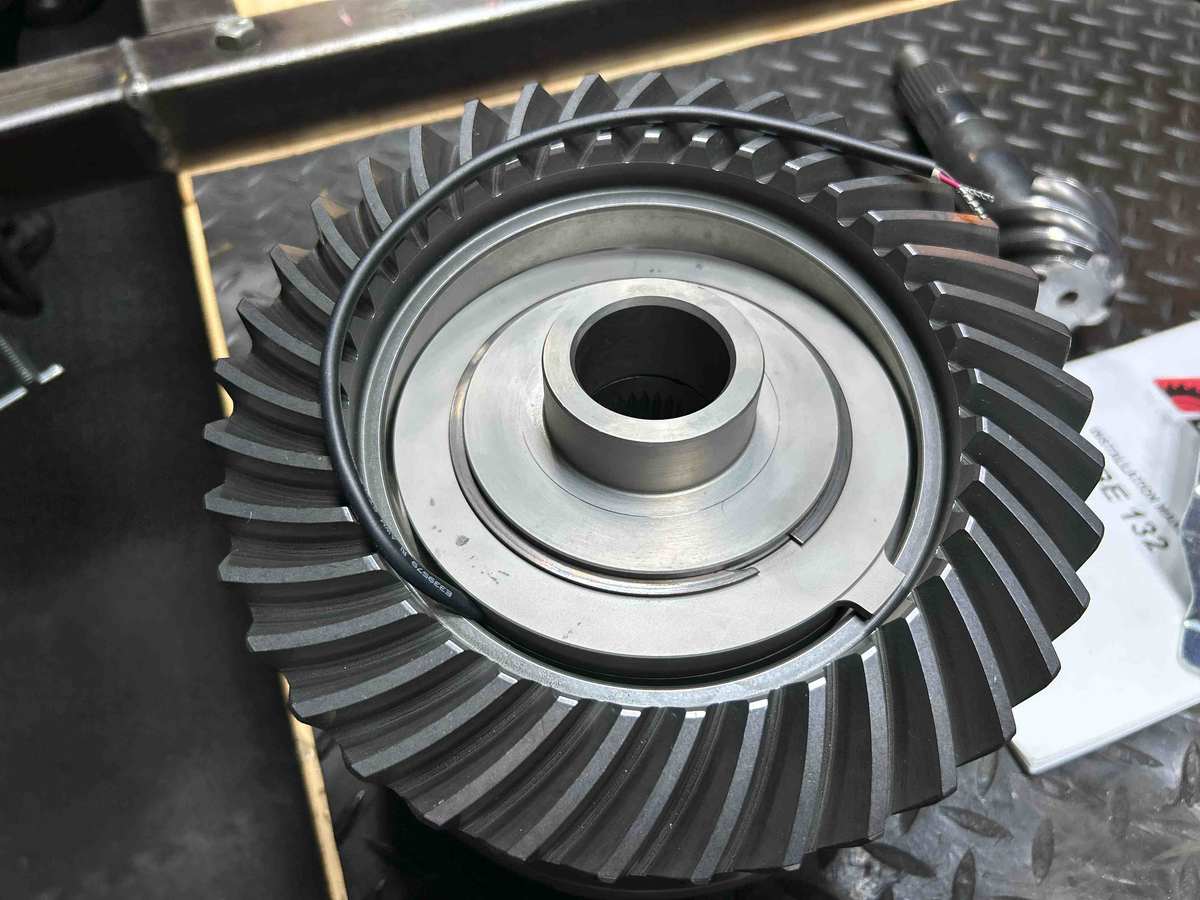

I skimmed over the instructions too quickly....I should have removed this
clip for ring gear installation.

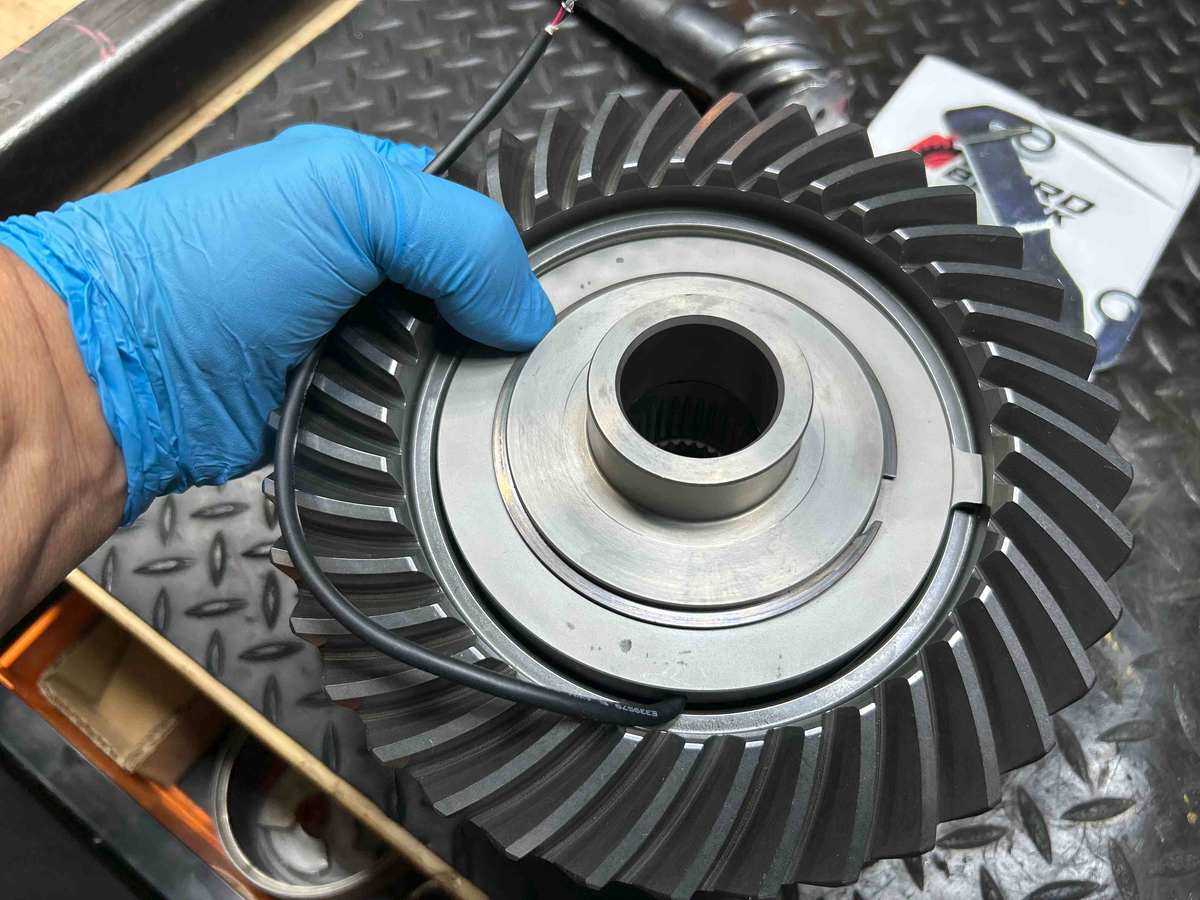

Attention everyone---although the ring gear did slip on just barely,
there was a chance of pinching the thin harness as shown on the left side.
I got lucky there. I just found out the easy way to do it is to take
off the large spring clip with a screwdriver. Then take the cap off and
you're as good as gold. Ring gear goes on....place cap and clip back in place.
I will demonstrate it on the next Hardblock install.

1 thumb of pressure and it slid right over the top corner....

Hardblock sent me a pic here of 3 installers that did not read the instructions
very well and did not pay attention to the pinching of the skinny harness.

And, the case was machined so close that the ring gear itself felt like it had close to zero play.
No pre-heating of the ring was needed...a perfect fit. No slop detected.

10 New bolts....red loctite and 75 ft/lb.

Closer inspection of these Timken carrier bearings.

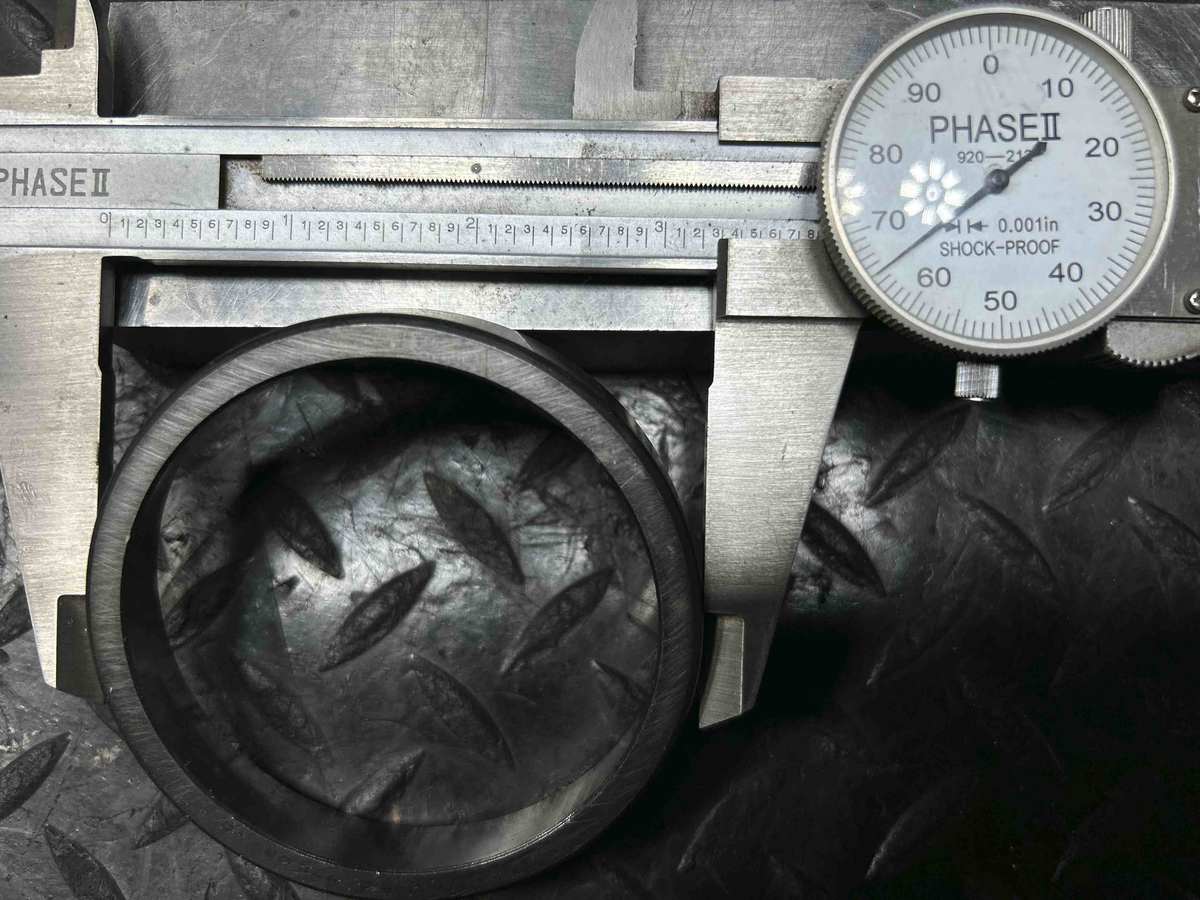

The OD of this LM104912 is not 83mm...but the bearing needs to be 83mm.

Let's start the teardown and look at the factory carrier bearings.

Nobody wants the stock 391 ratio and the weak carrier is only a 2-pinion...

...so in the garbage they go.

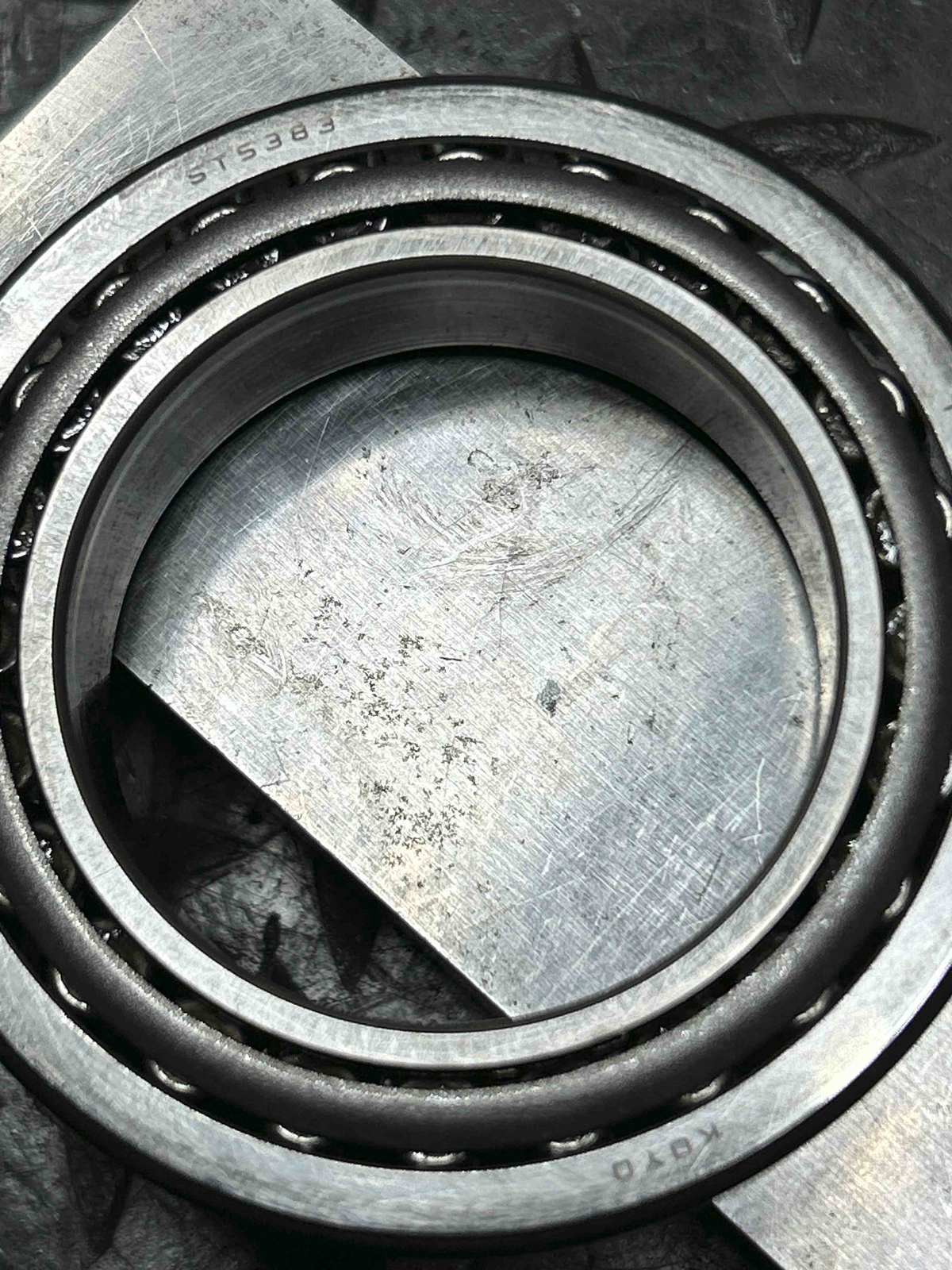

So Toyota uses the KOYO ST5383.

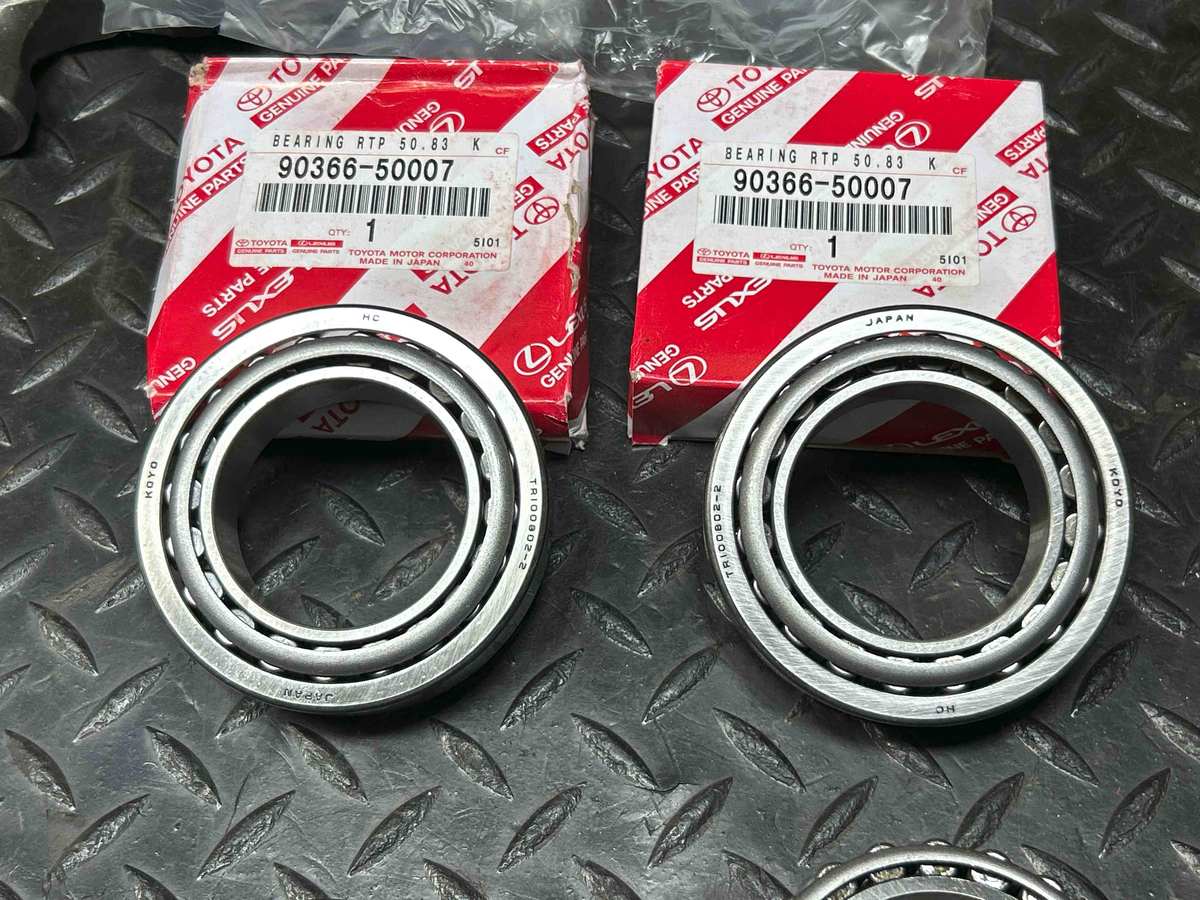

Turns out we need the very common 50007 carrier bearings.

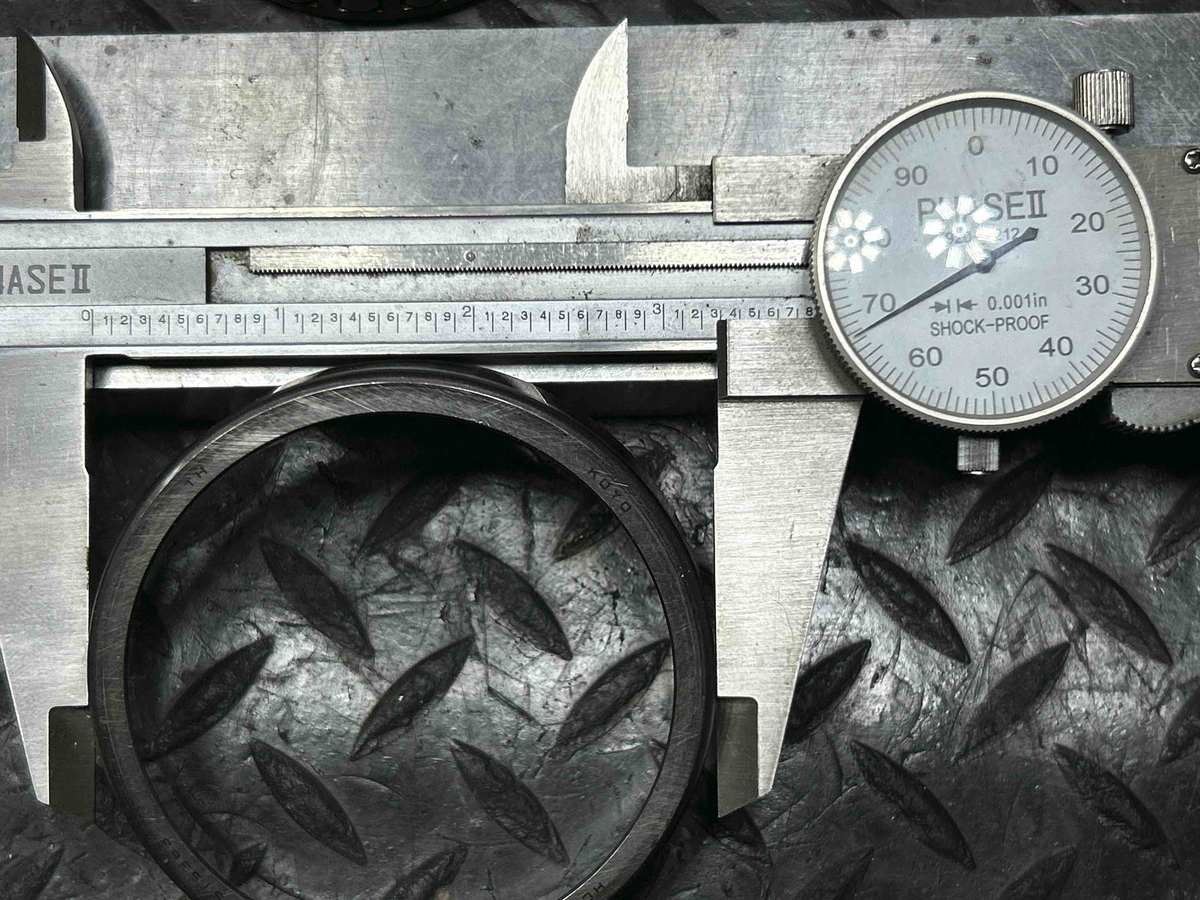

The 50007 has an OD of about 3.2677" which is 83mm.

The Timken LM104912 OD is 3.2650" which is .0027" smaller.

That means the aftermarket carrier bearings are undersized enough to be of a concern.

50007 bearings it will be.

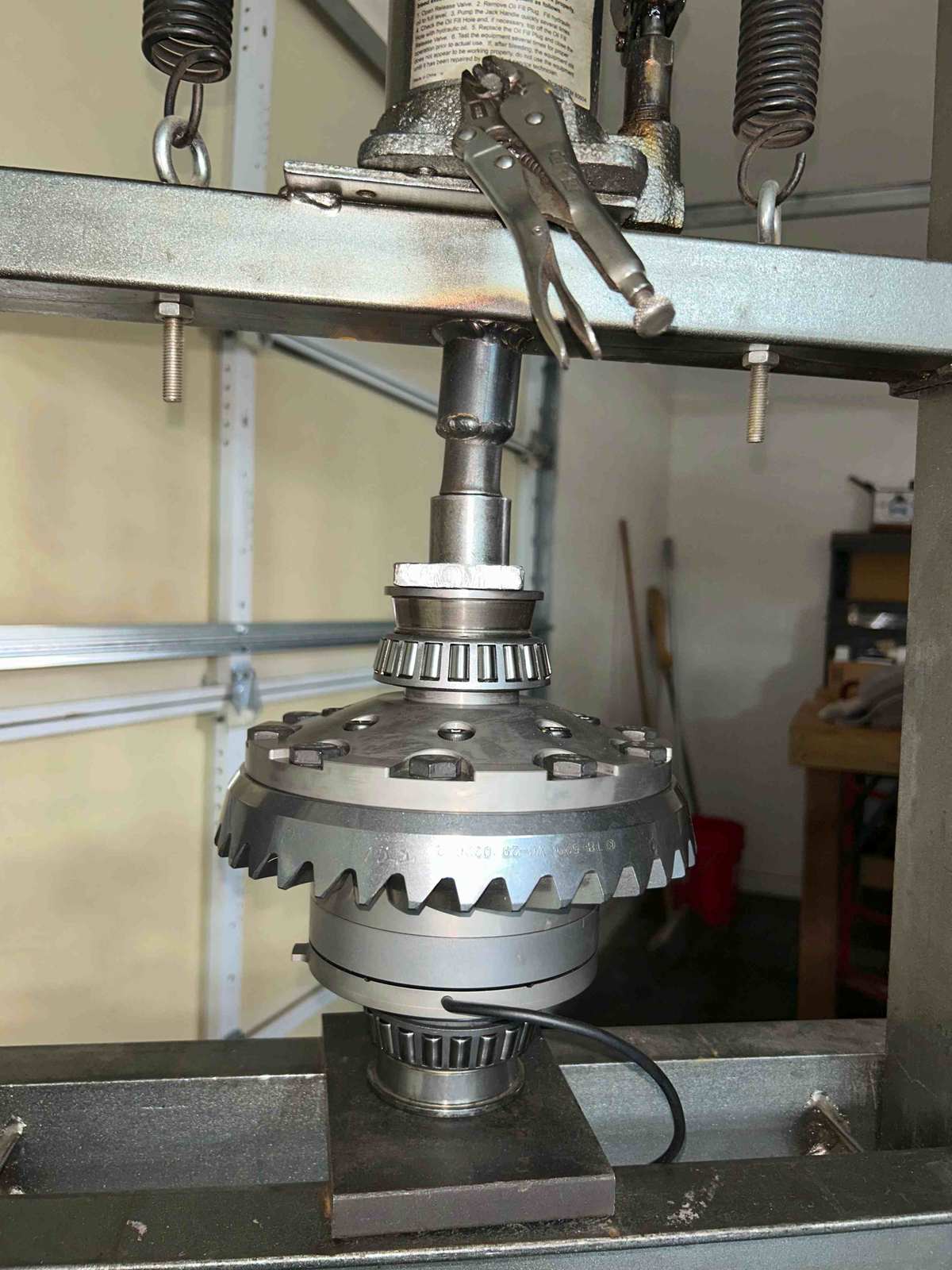

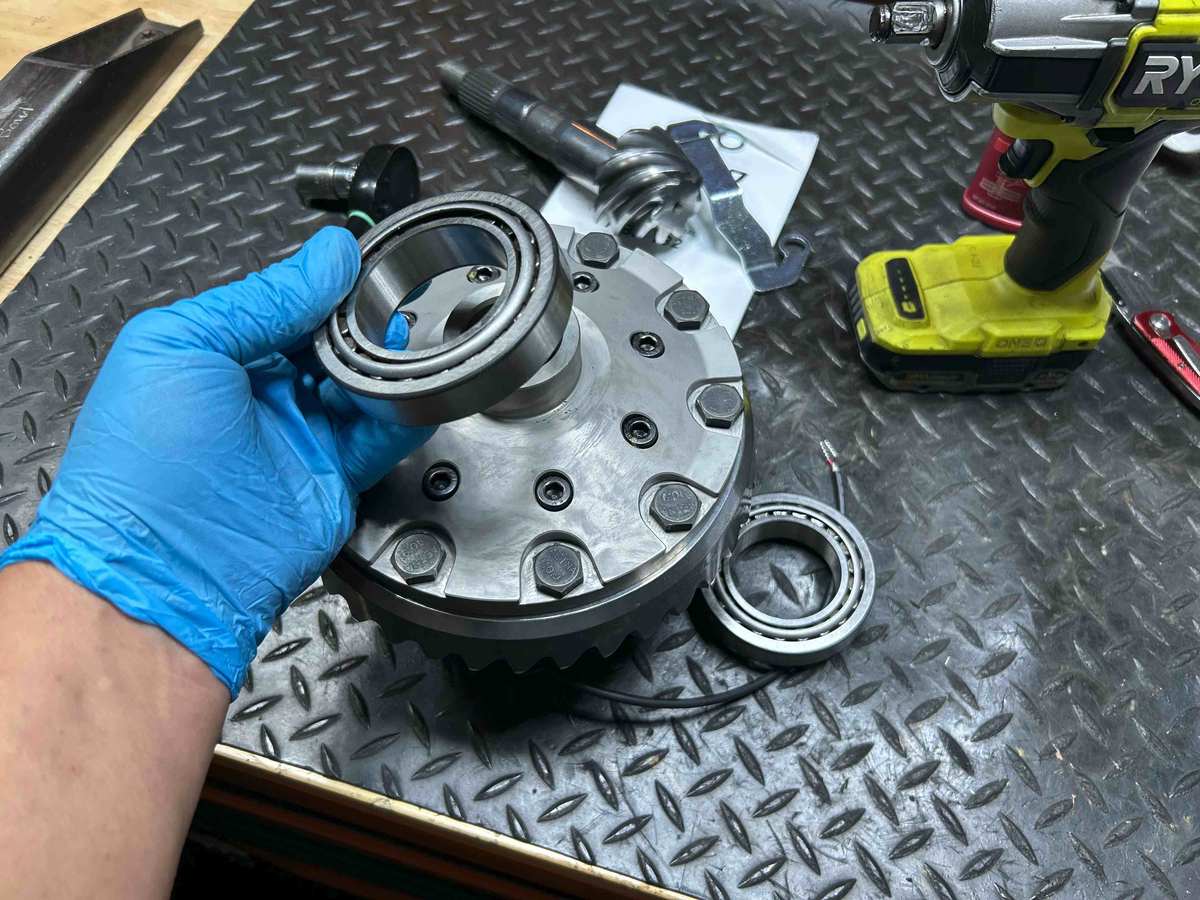

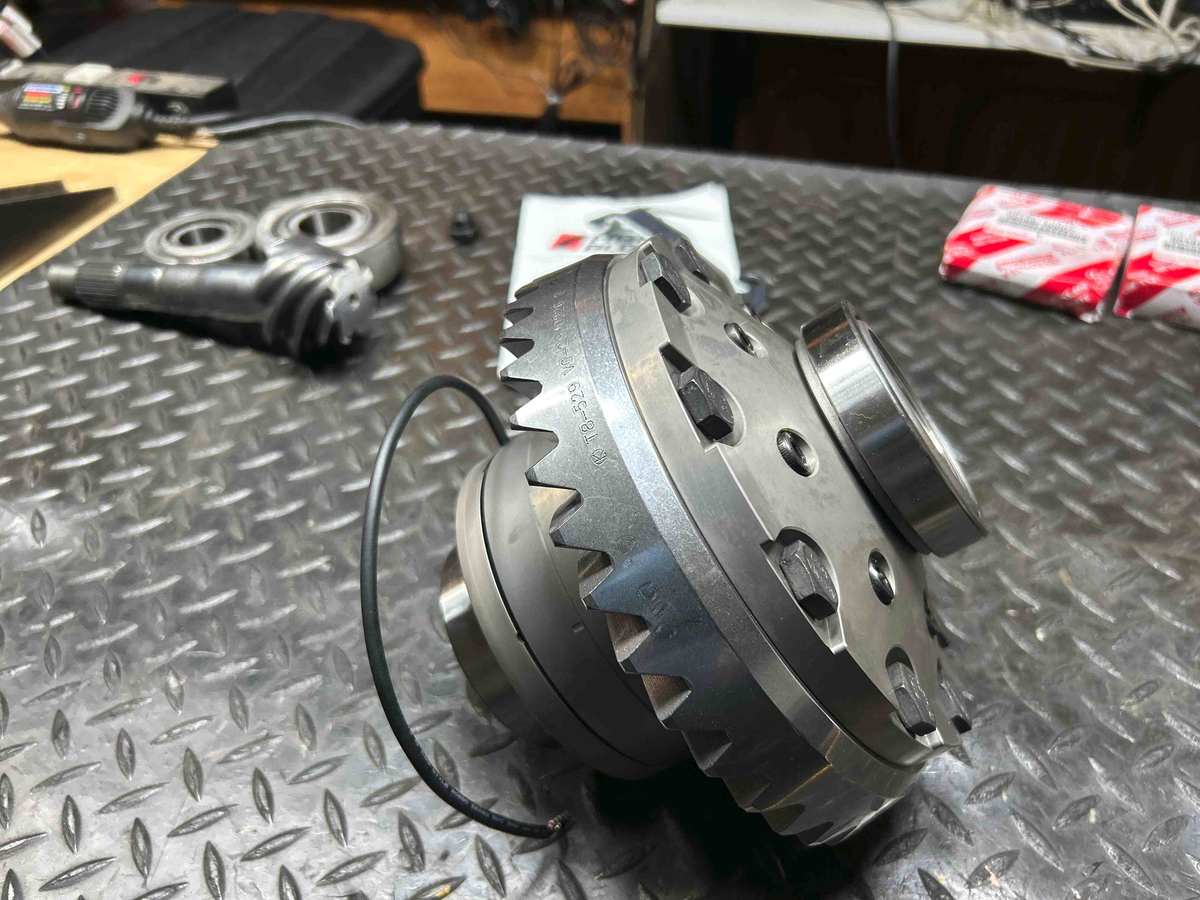

Carrier bearings are pressed on.

This part is complete.

Onto the pinion end of things.

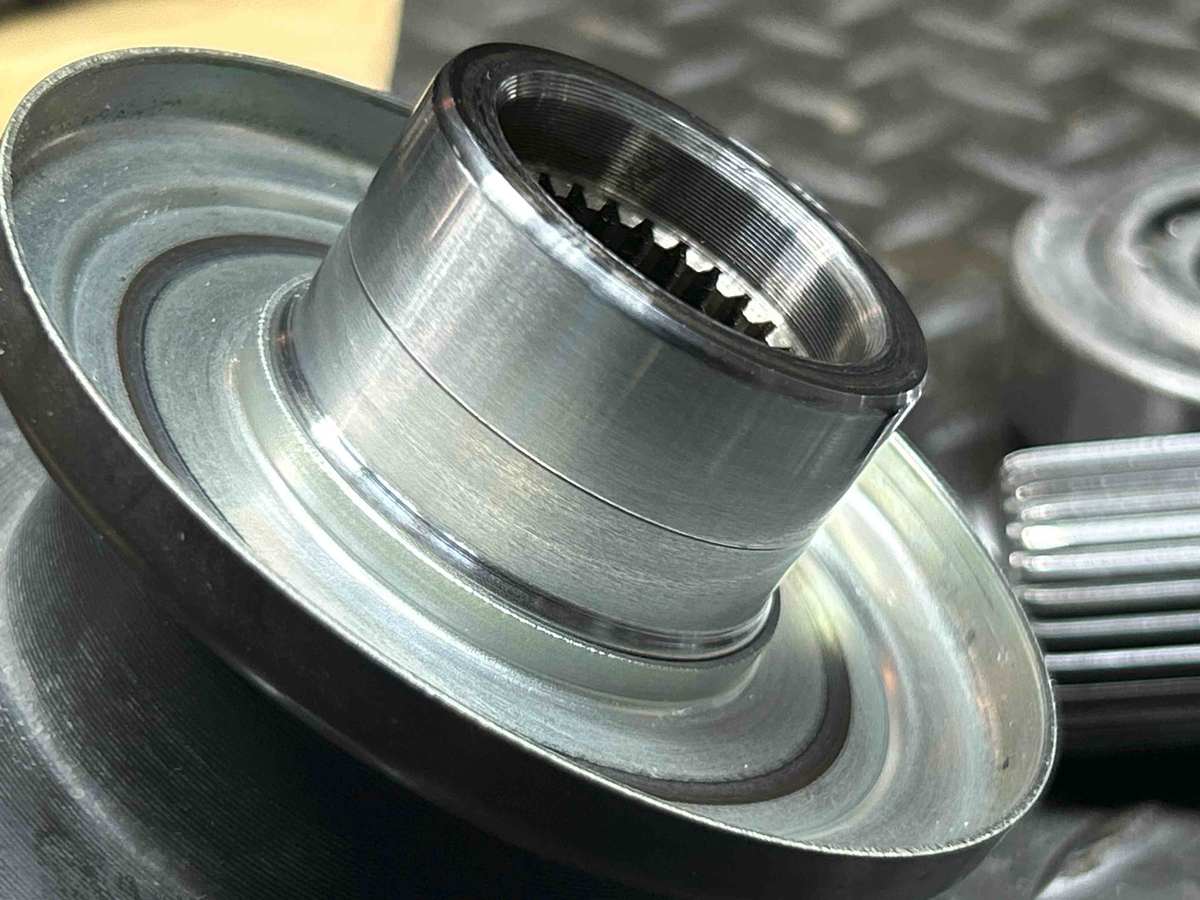

This pinion flange does not have that many miles on it so it is in excellent condition.

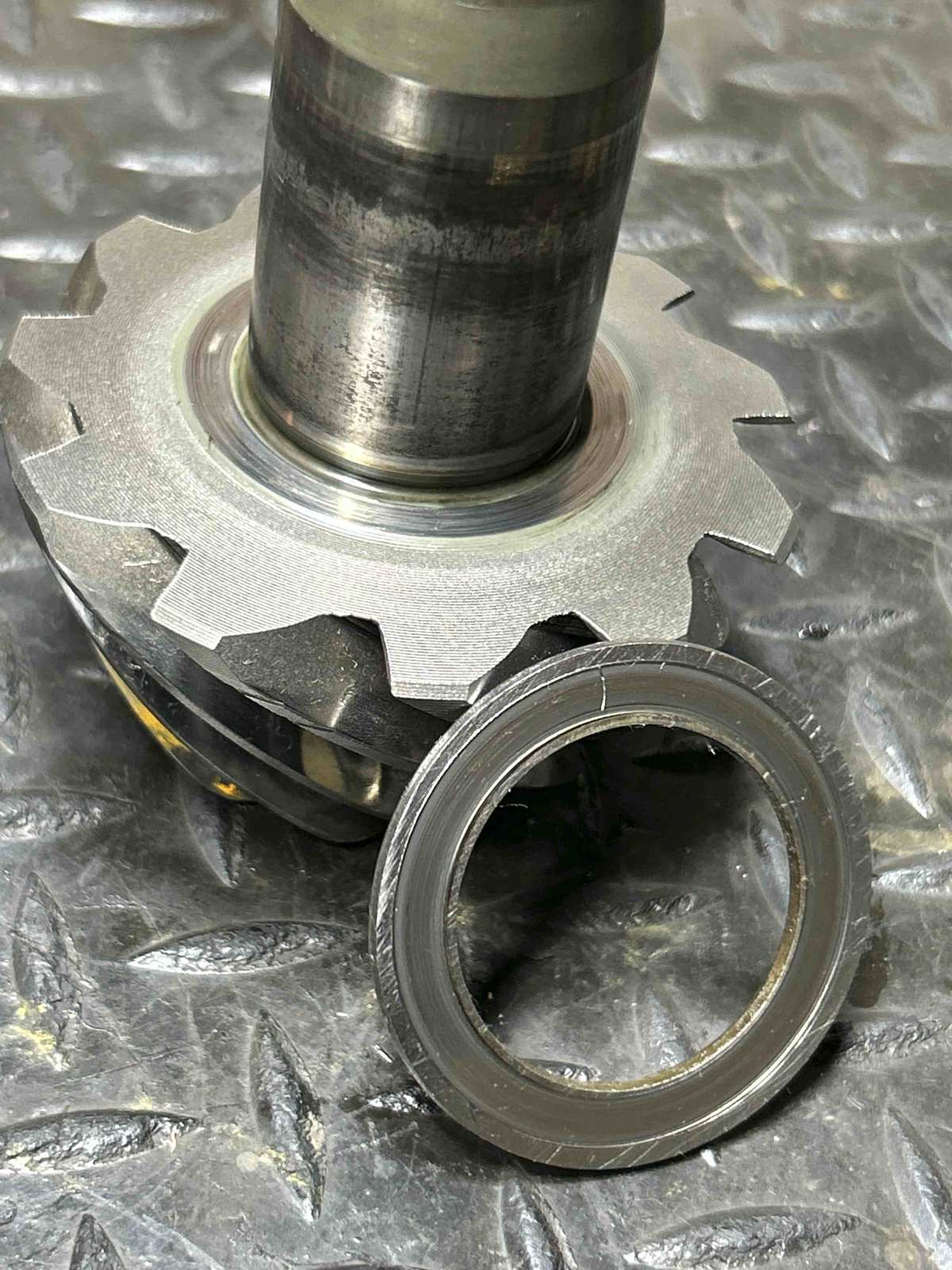

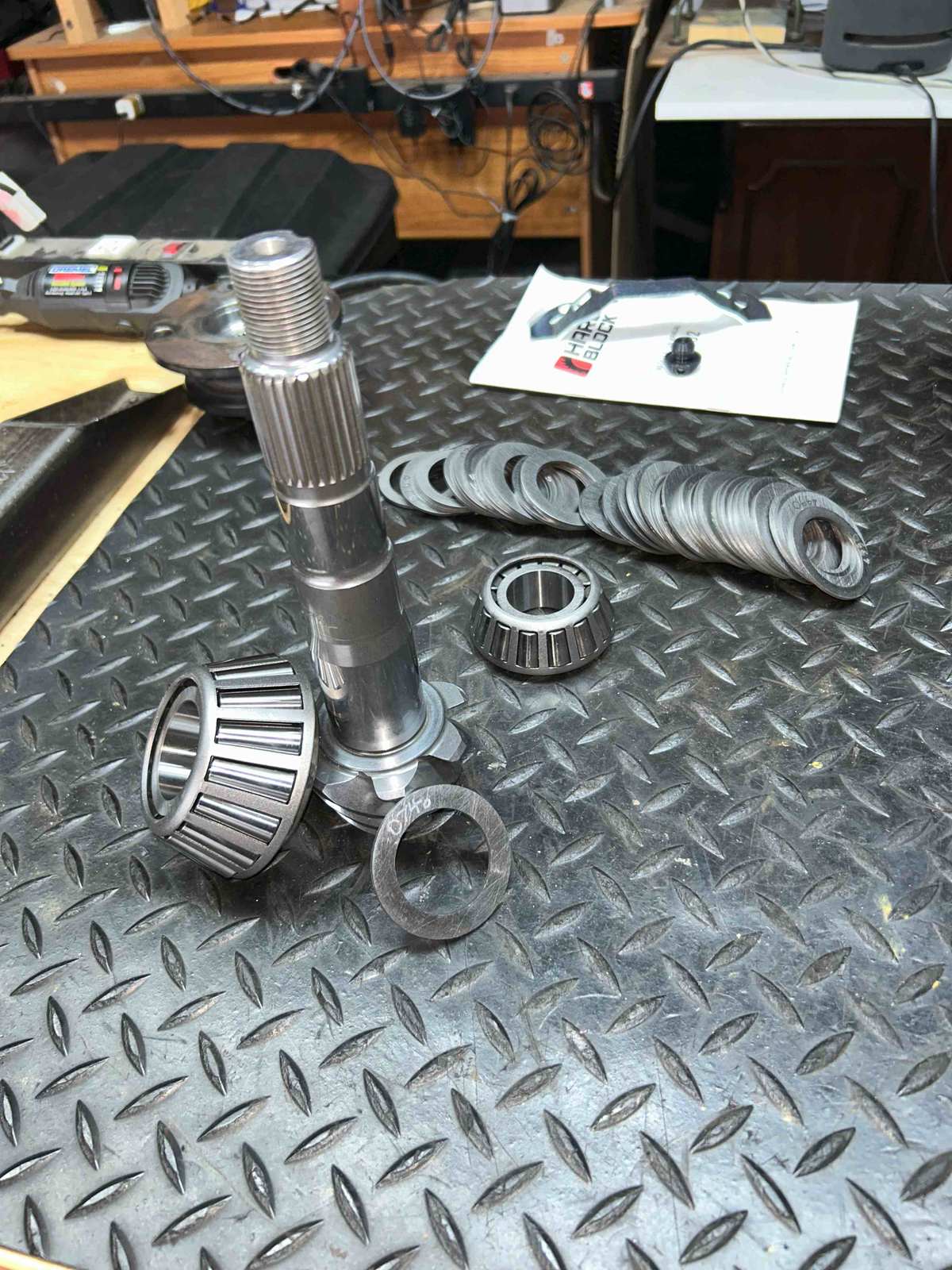

Strange.....the pinion bearings actually were in excellent condition but the pinion shim was "munched".

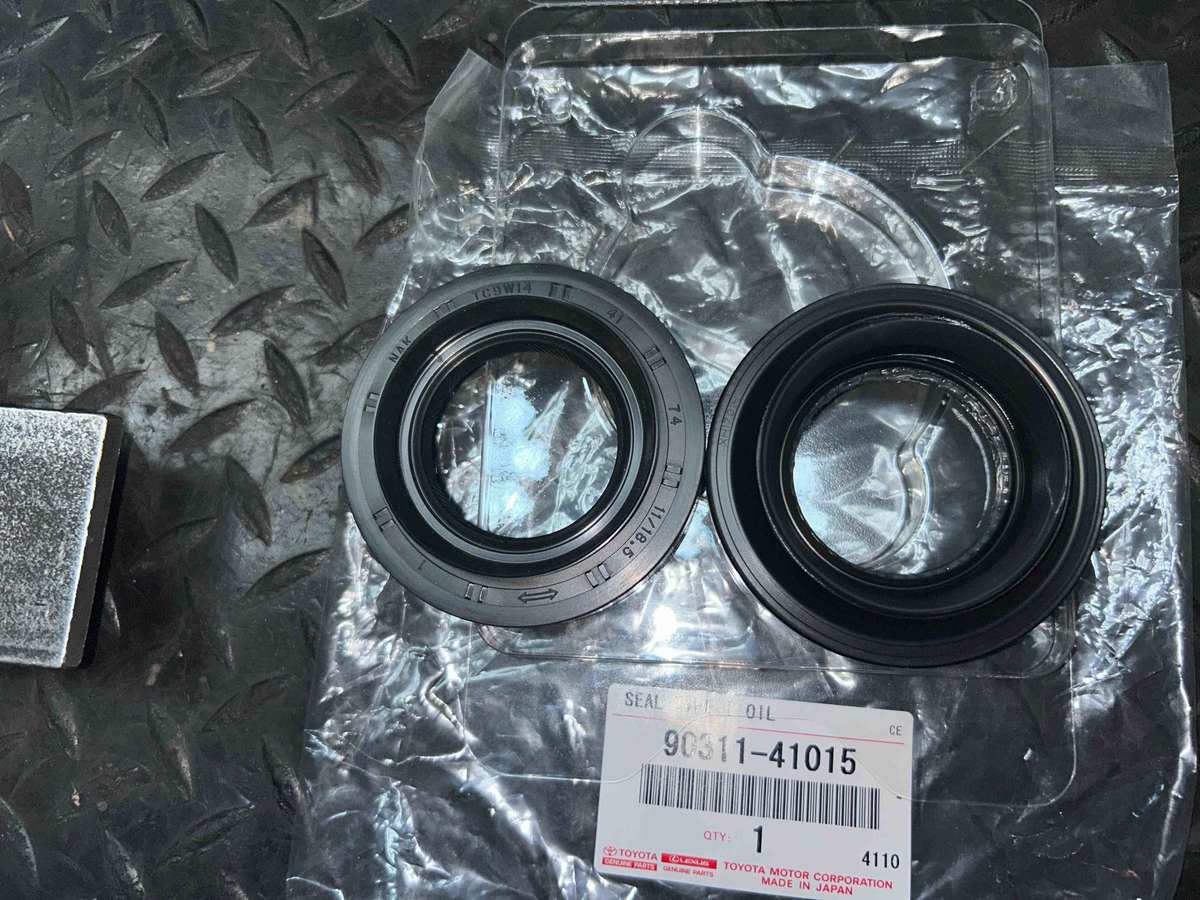

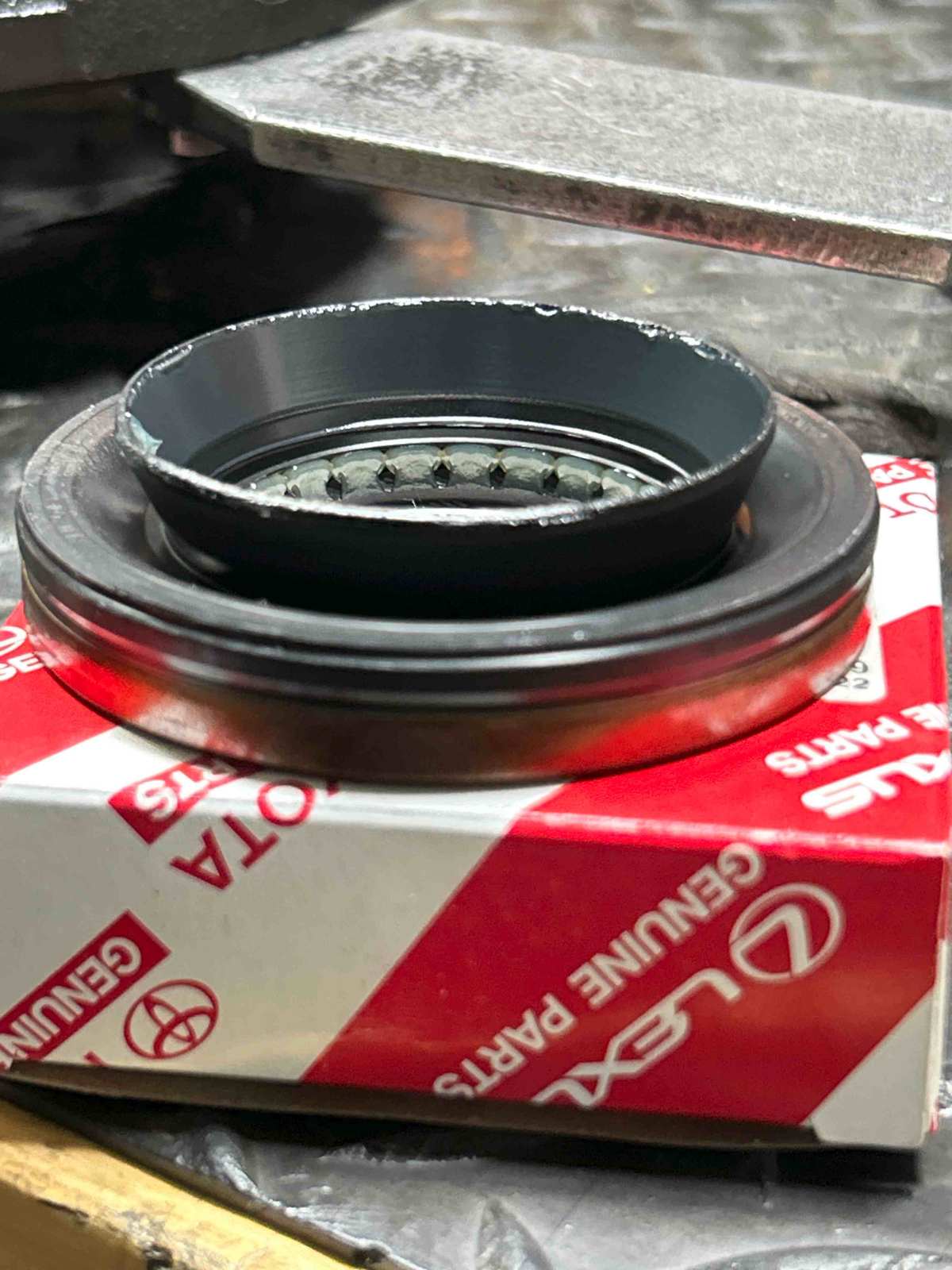

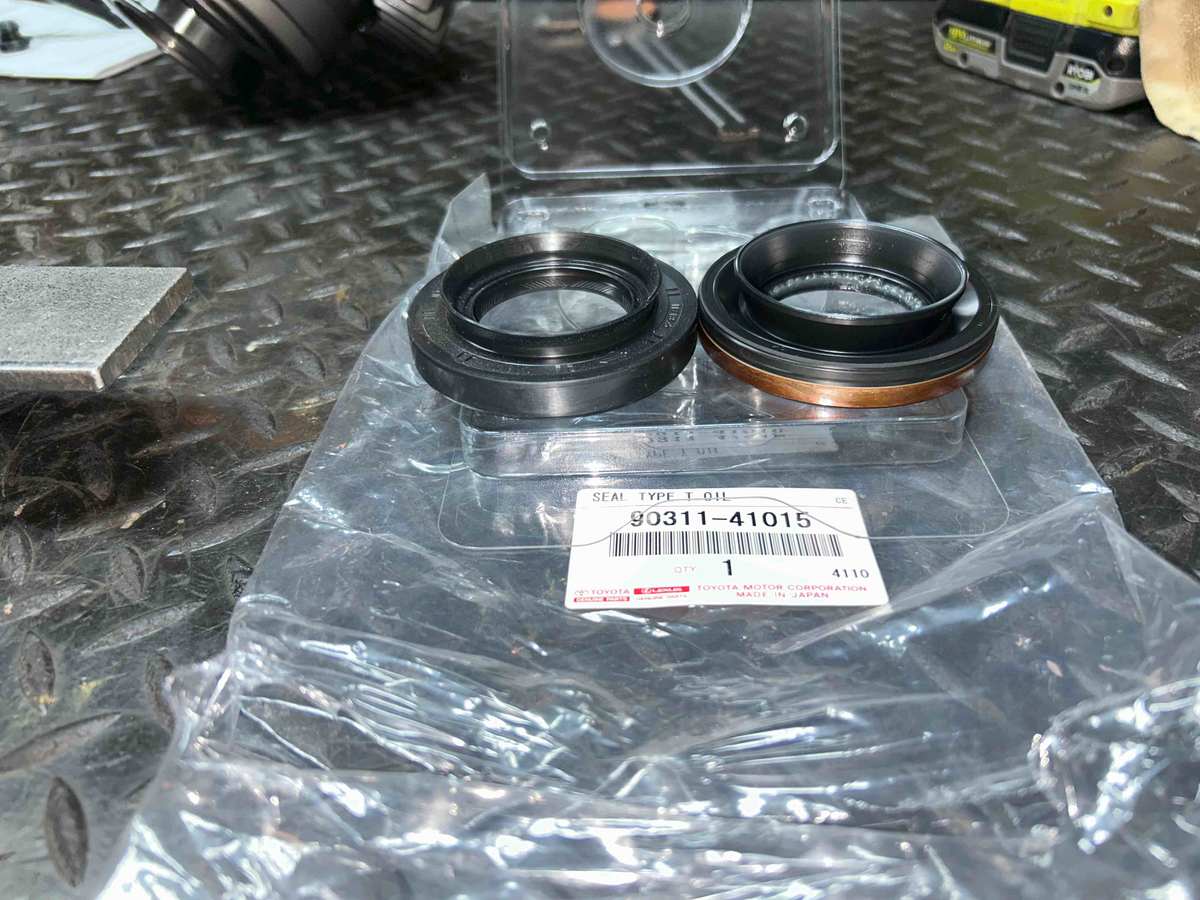

This is the genuine seal that they call out for on the 2016 model.

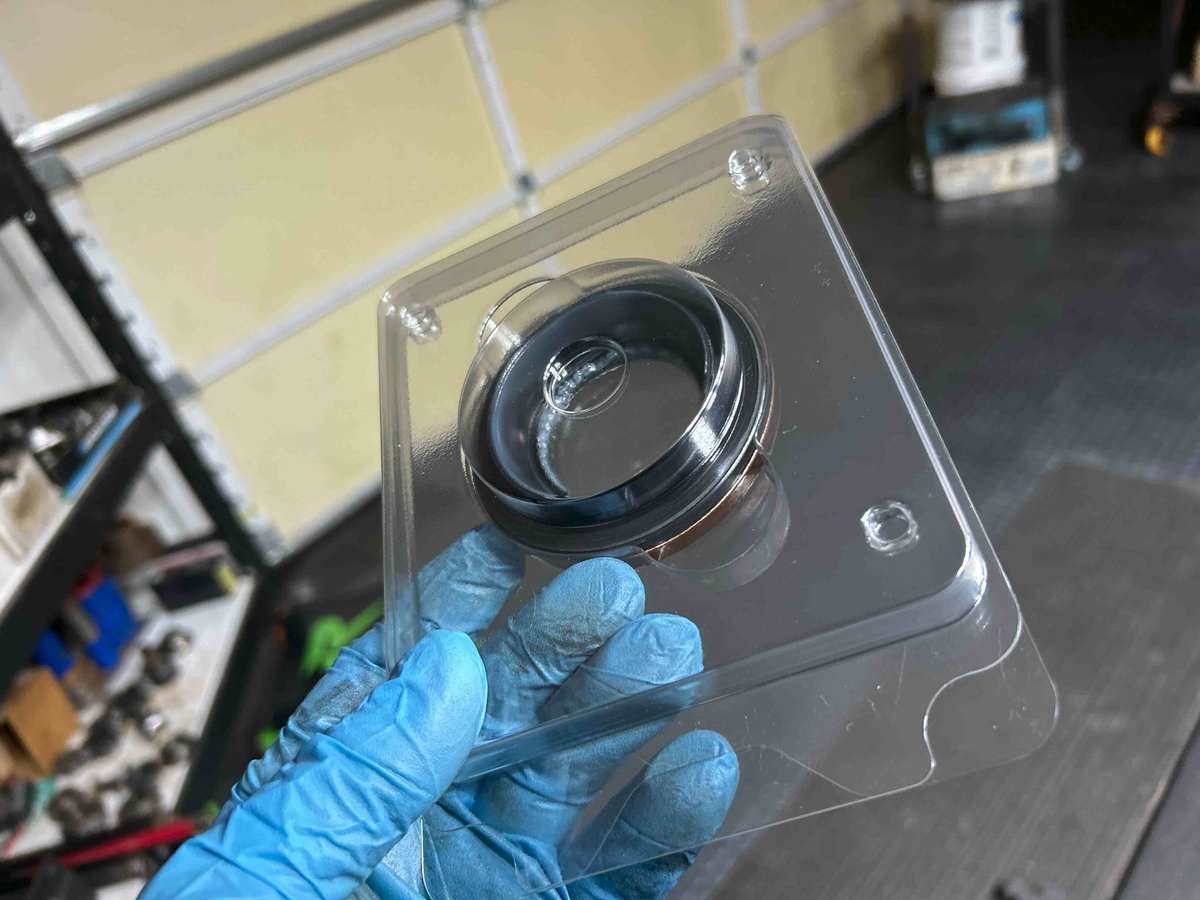

Pre-greased. But I'm getting ahead of myself!

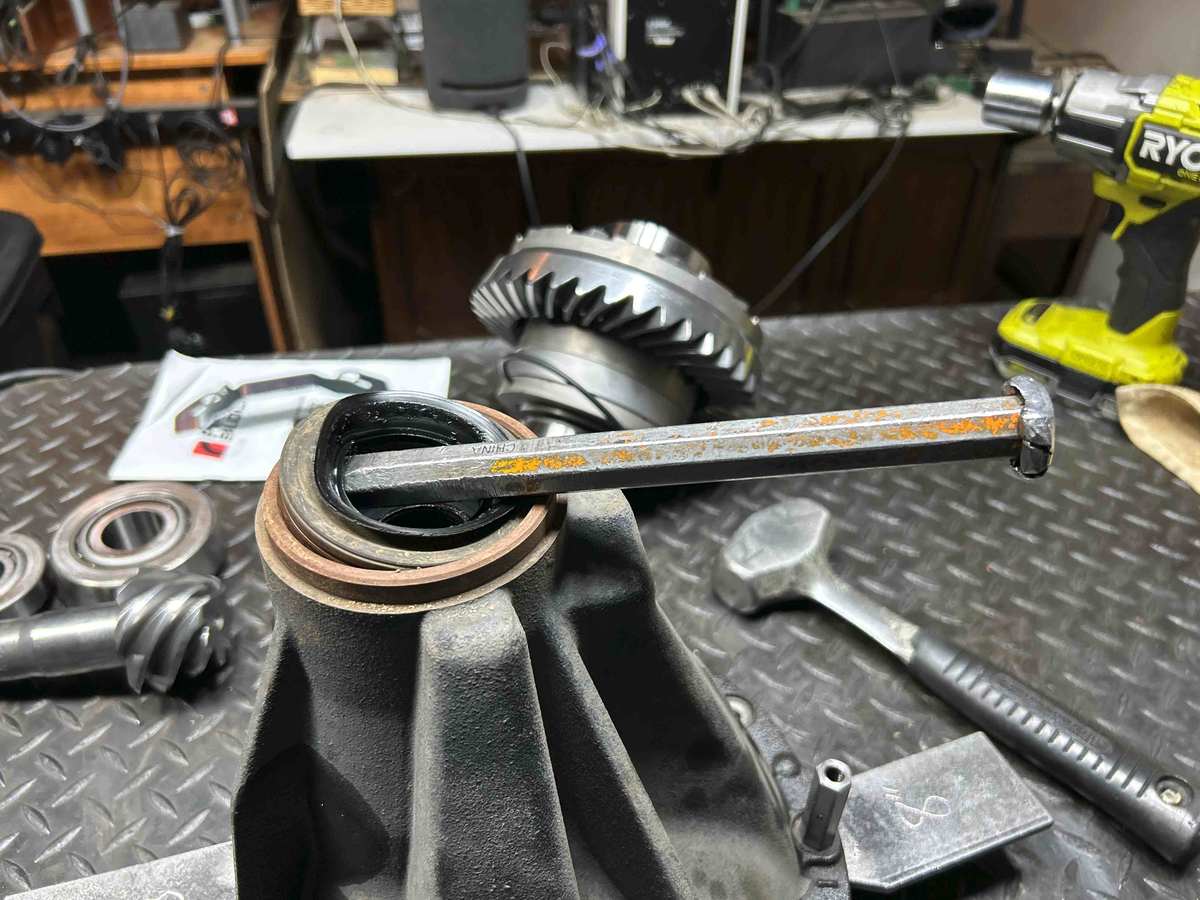

The designated seal remover.

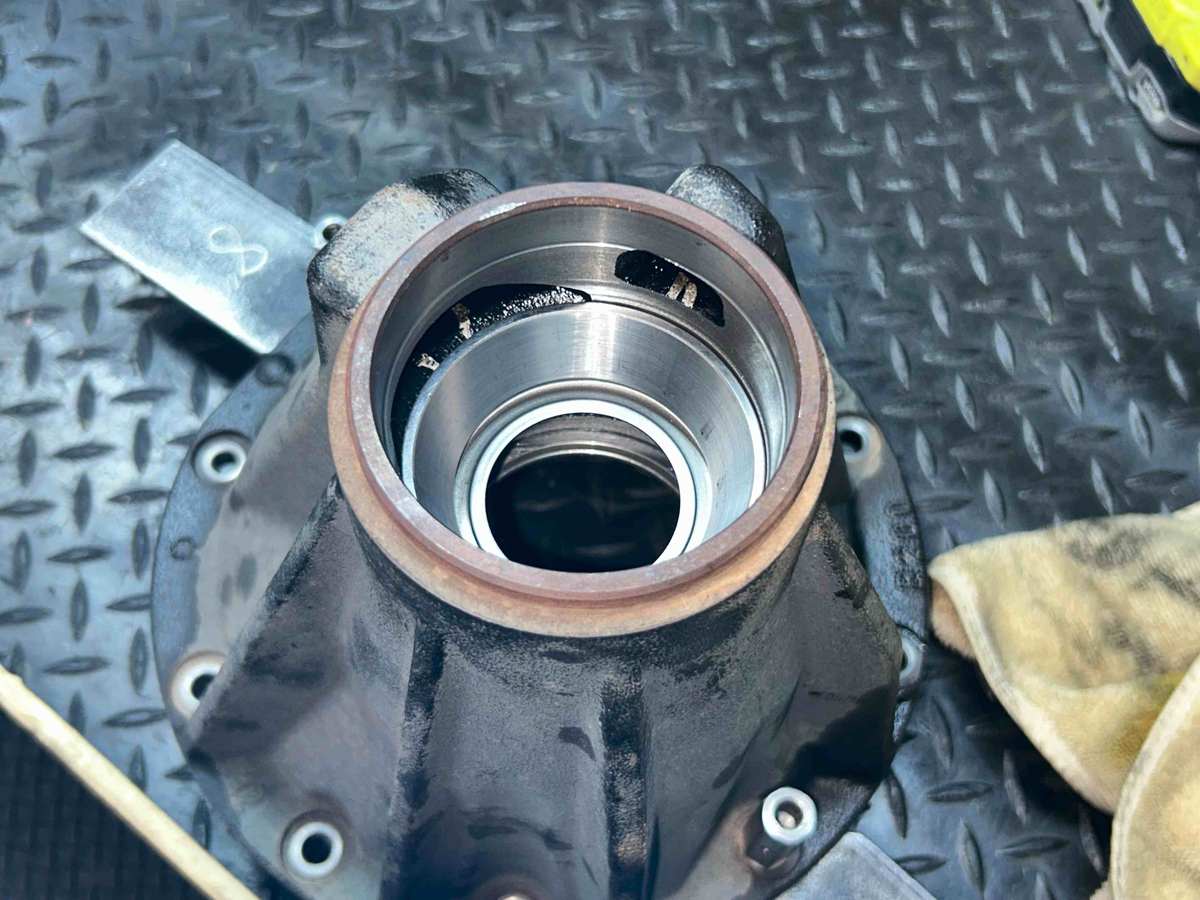

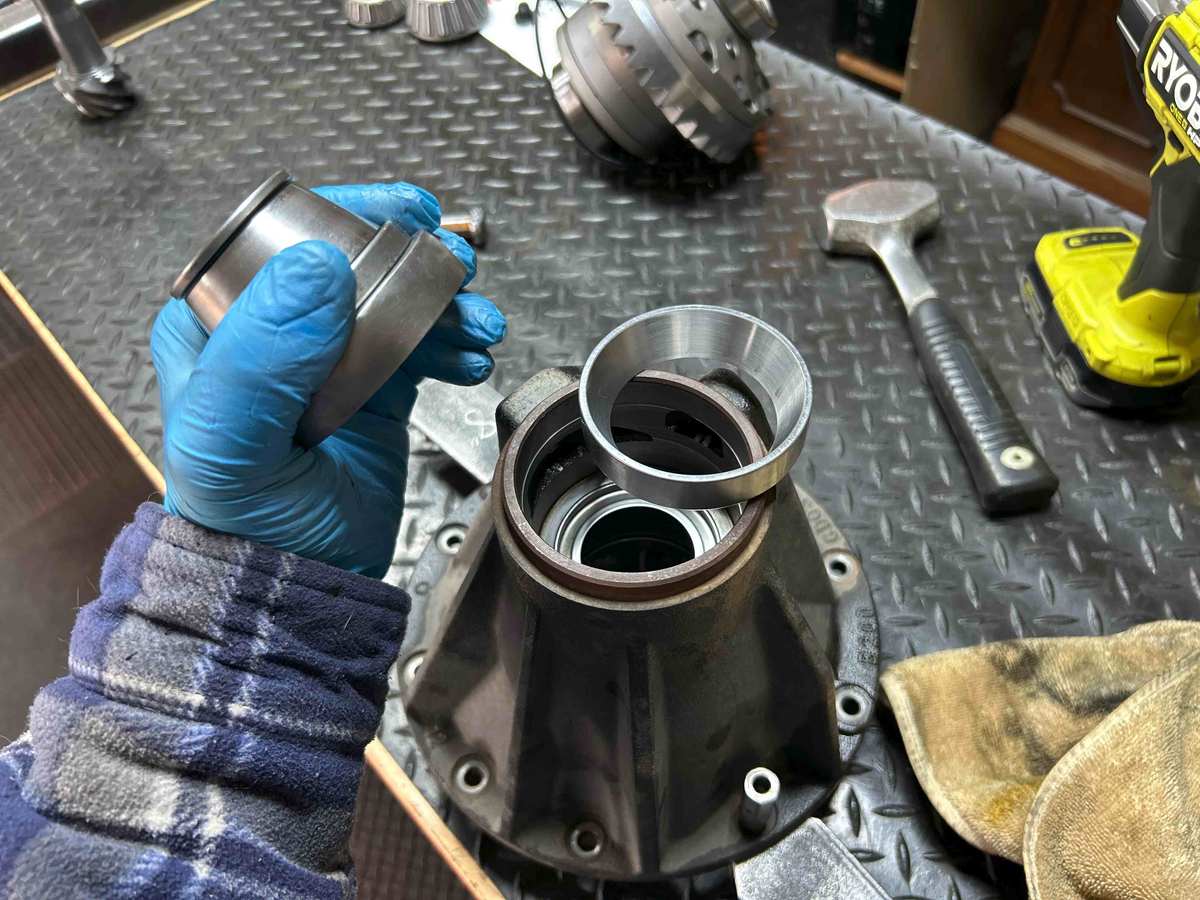

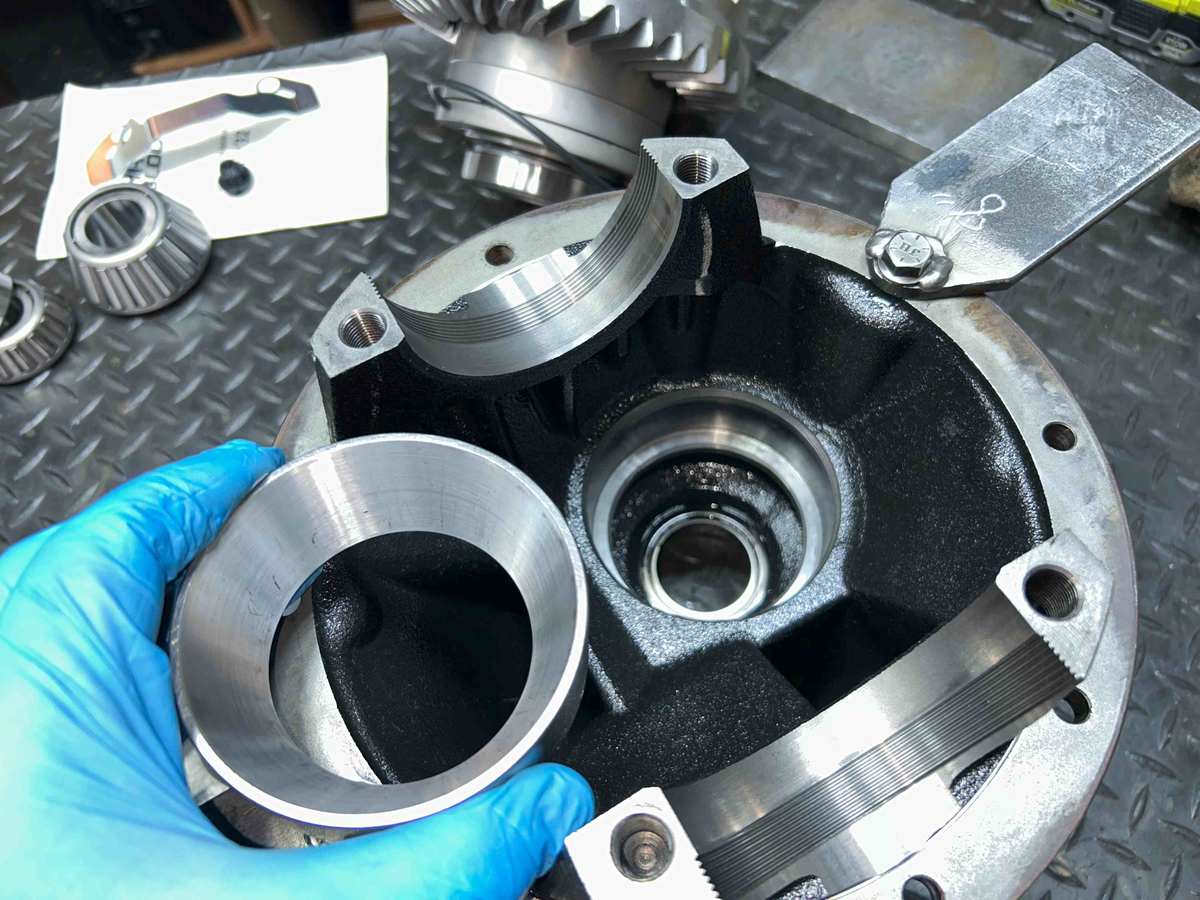

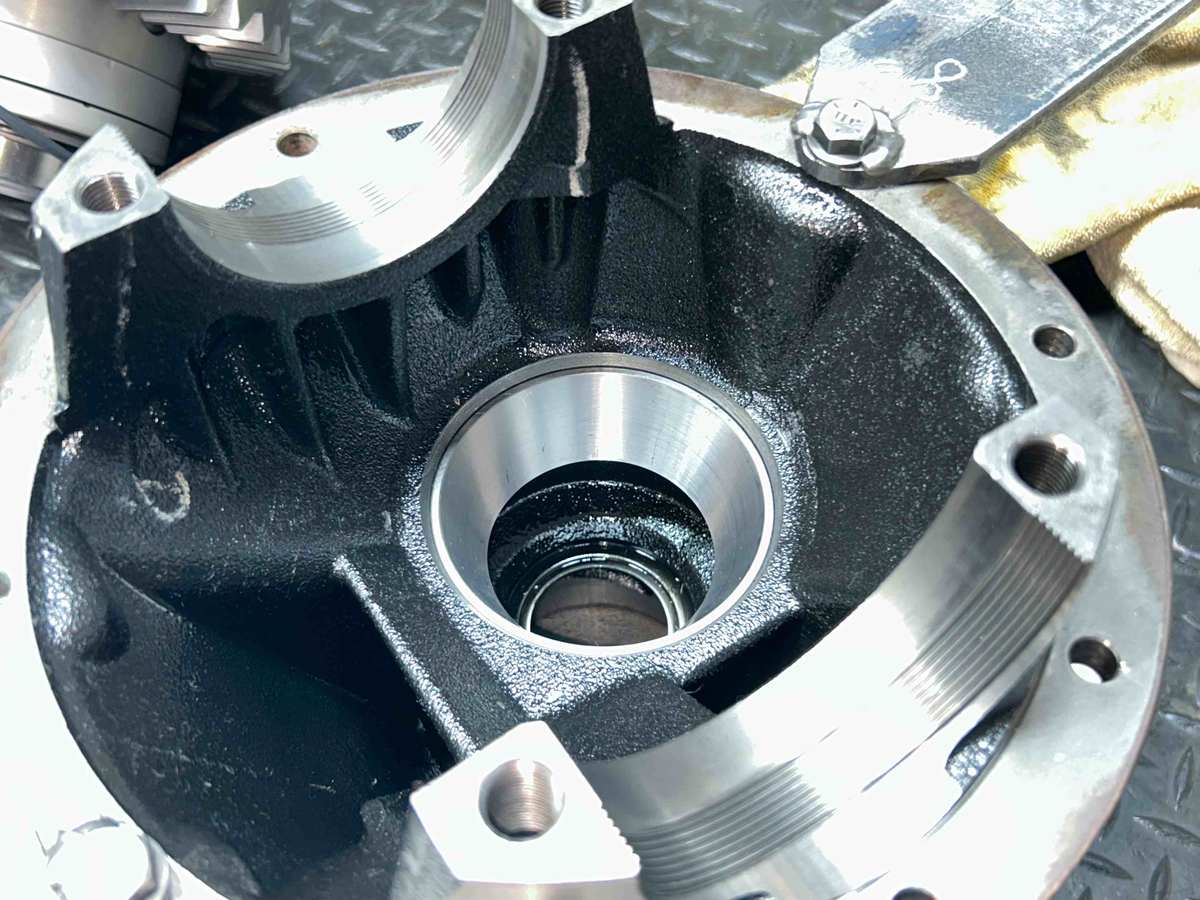

Original pinion races were tapped out and now the new ones go in.

Pretty straight forward....just make sure it's seated 100%.

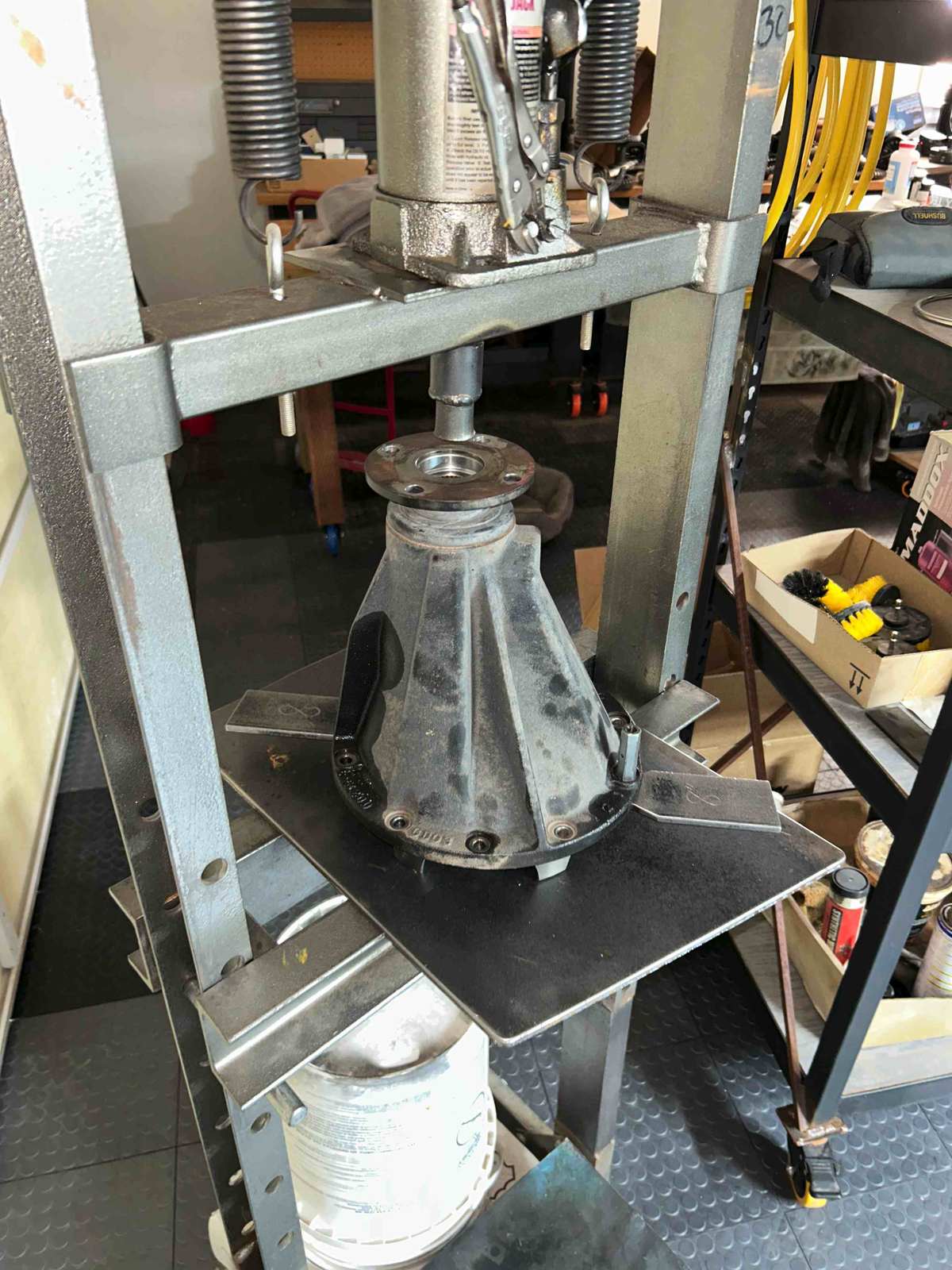

The top is even easier...I use old bearing parts to make it happen.

Done.

Looking at some older installs I see that 074 is a good one to start with.

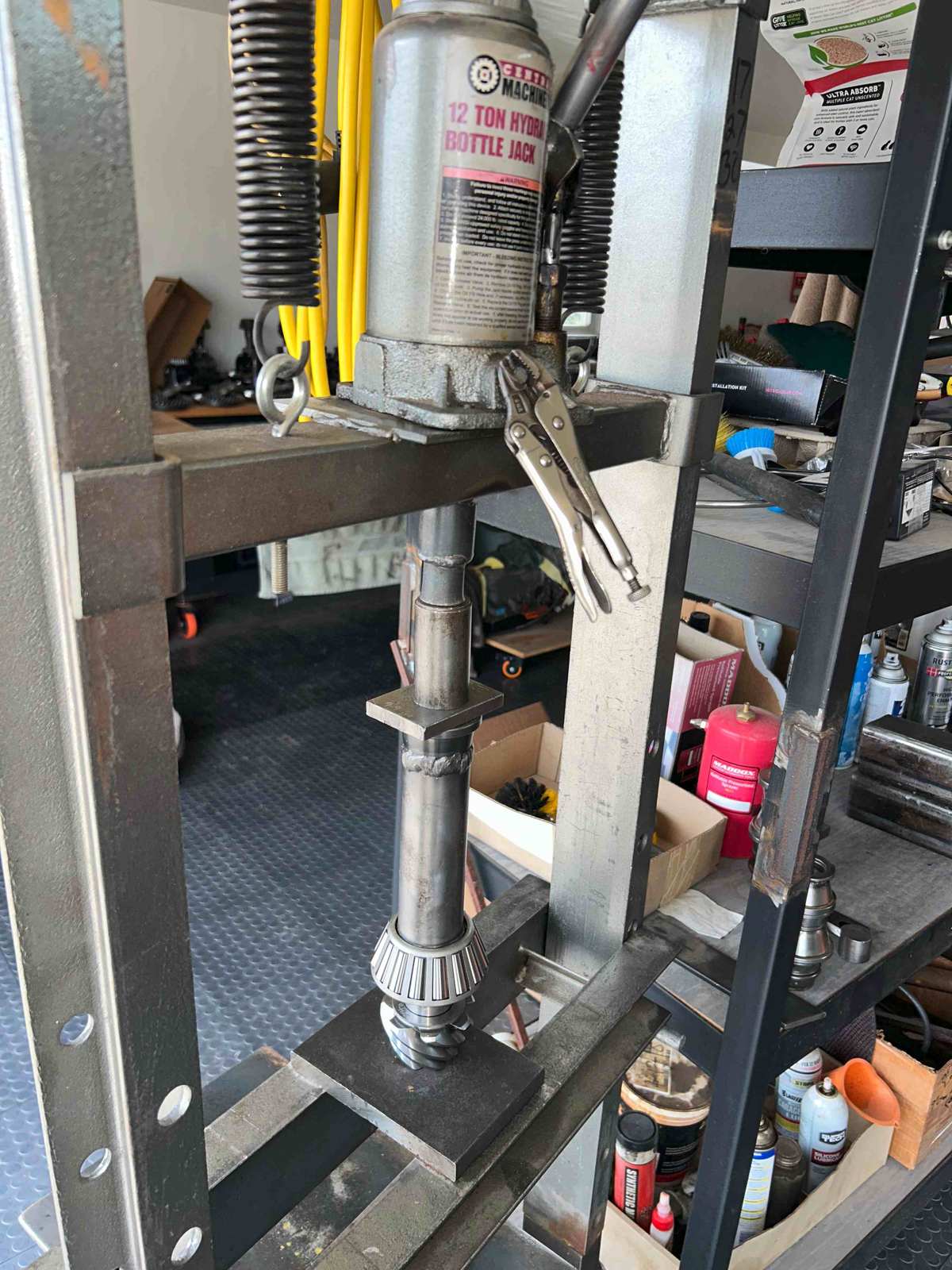

12 tons has never let me down in 26 years of doing this.

Pinion was mounted up....skipped a few pics but now the center carrier(HardBlock) is mounted.

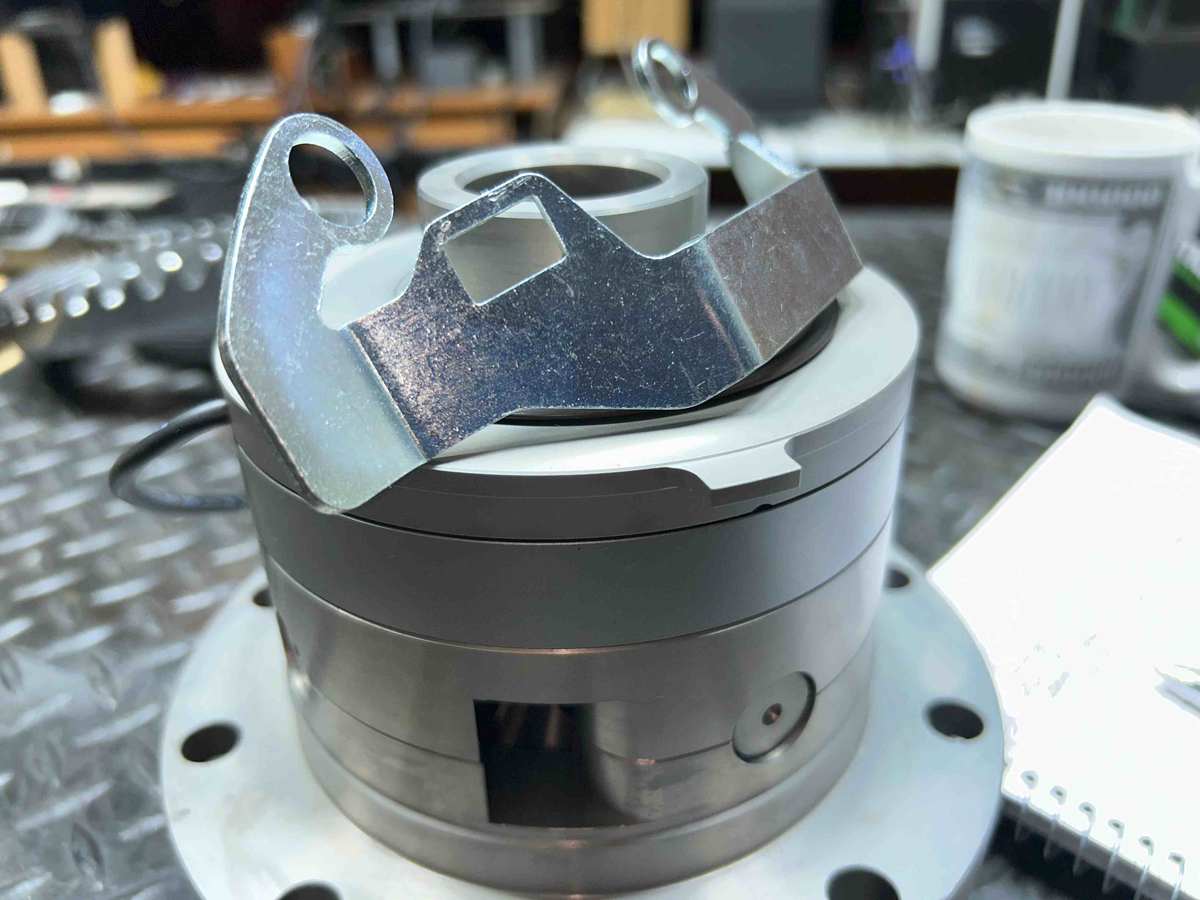

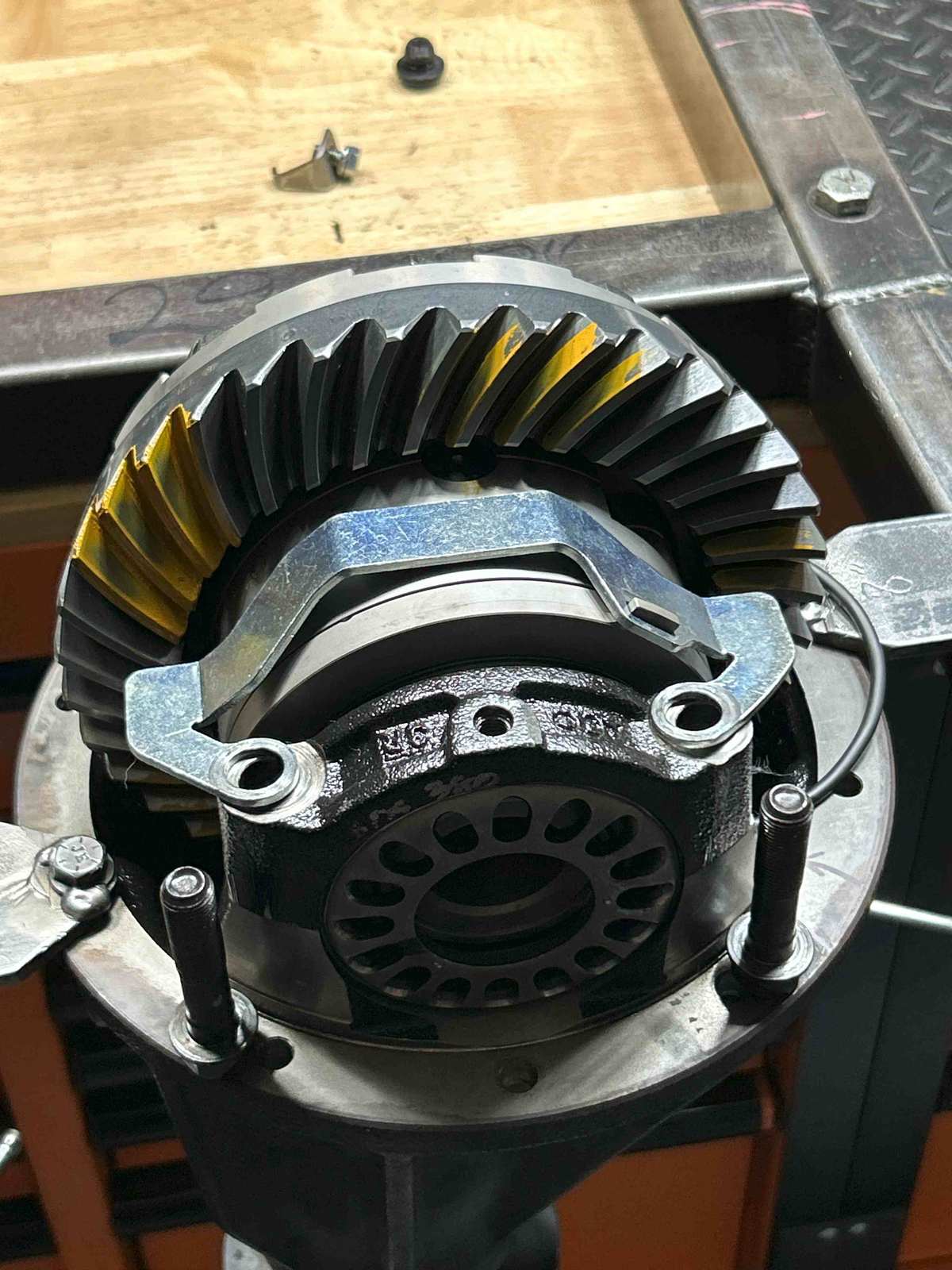

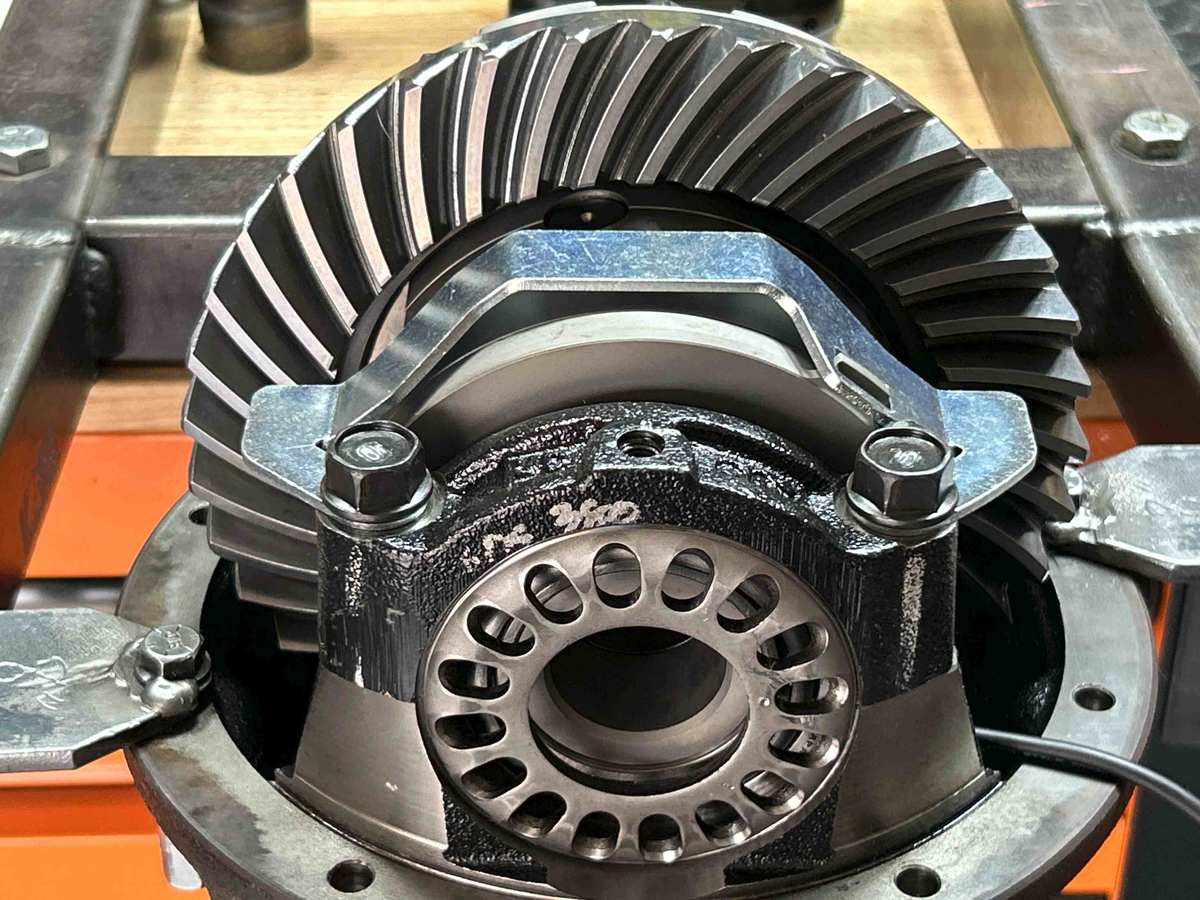

I really like the thought that went into designing this bracket....a perfect fit.

After backlash and carrier bearing preload has been set, now to paint some patterns.

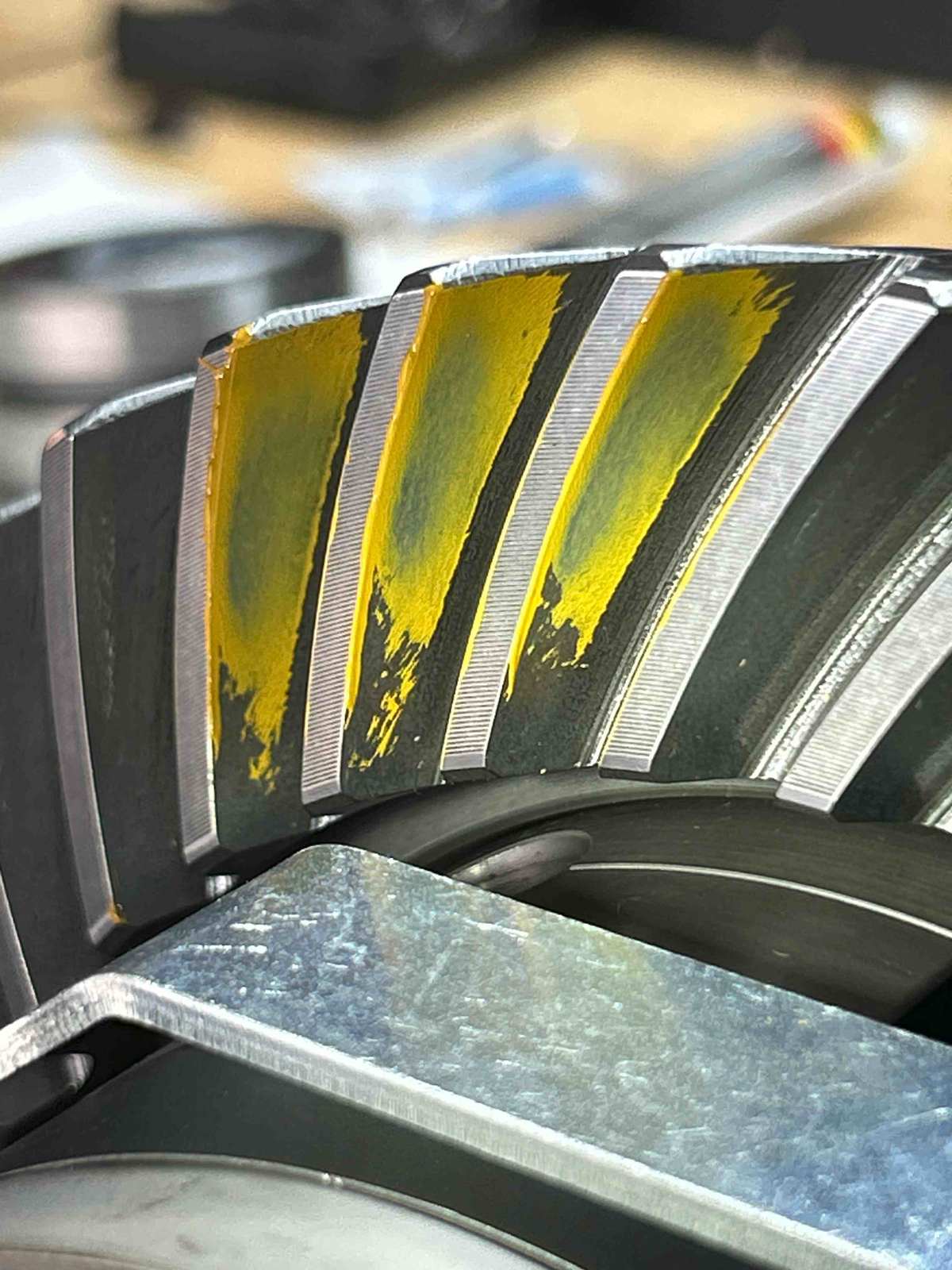

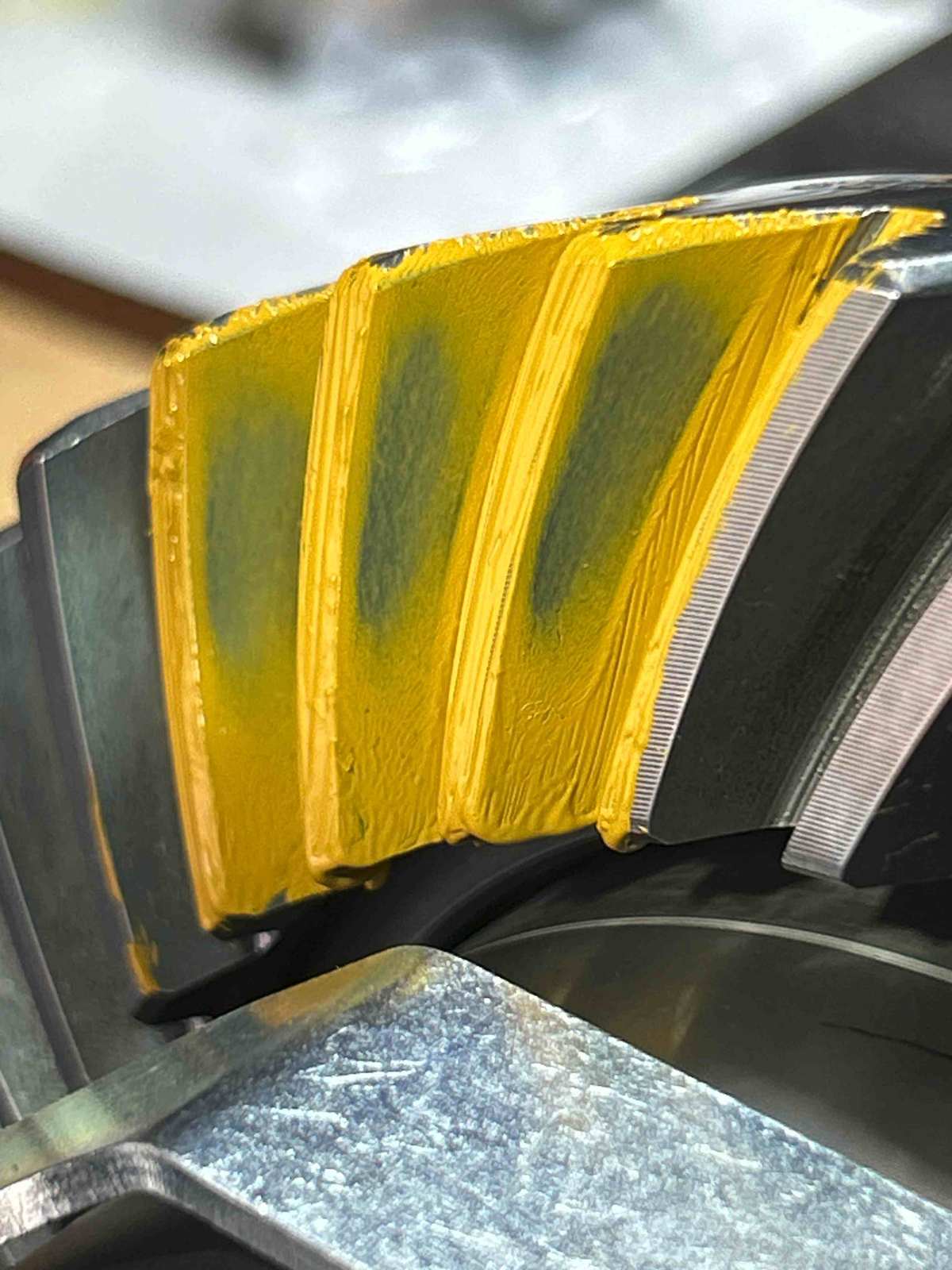

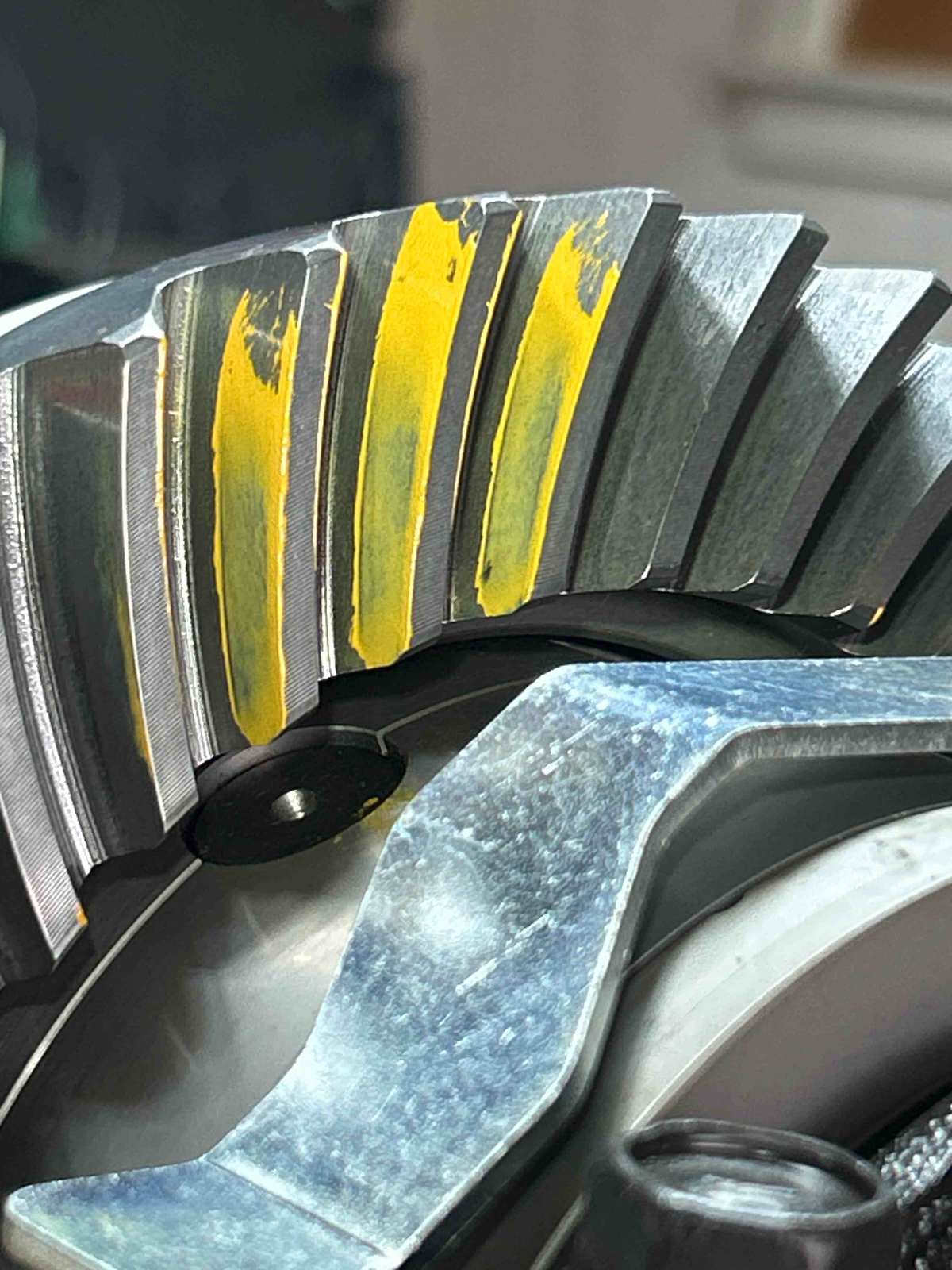

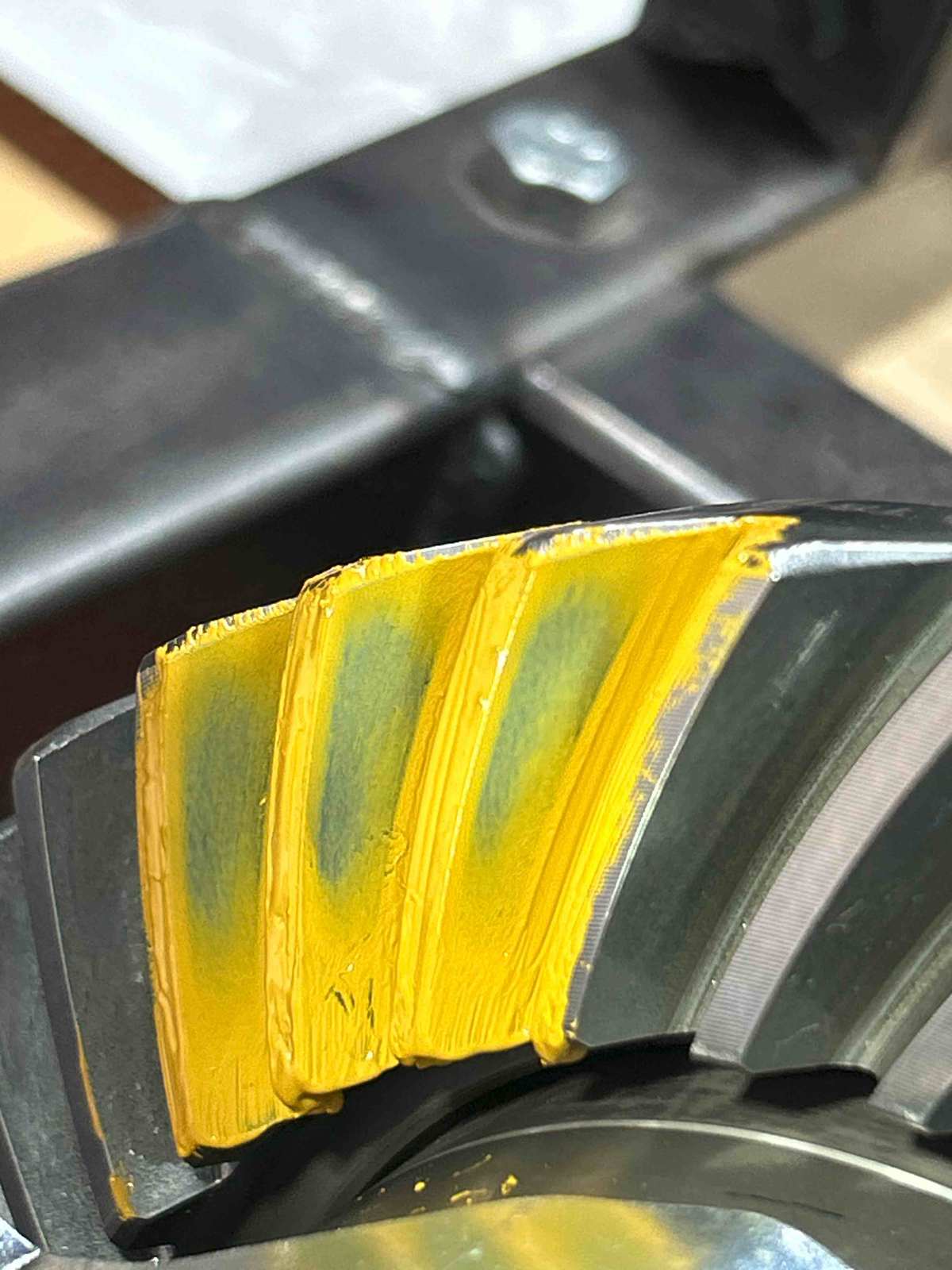

This is 074 on the drive side....just about looks perfect....slightly grainy and that tells
me to do a tiny tweak and maybe add about .001" to the shim.

074 Drive side...reverse painted.

074 Coast.

074 reverse painted coast.

Now's a good time to mark where to drill the .500" hole.

074 pinion 1 pattern

074 pinion 2 pattern

074 pinion 3 pattern

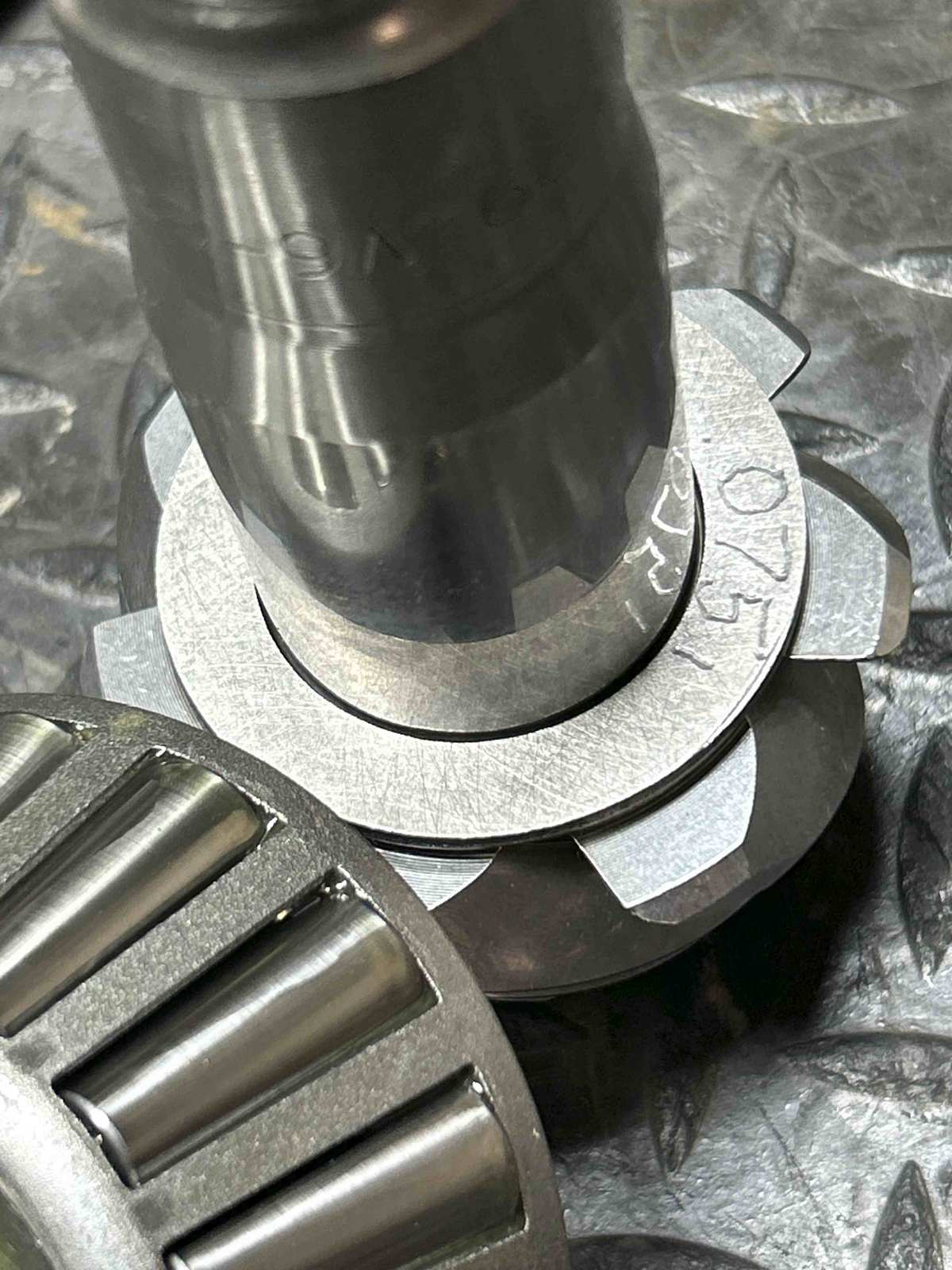

Tore it down and now tweaking it with 0751.

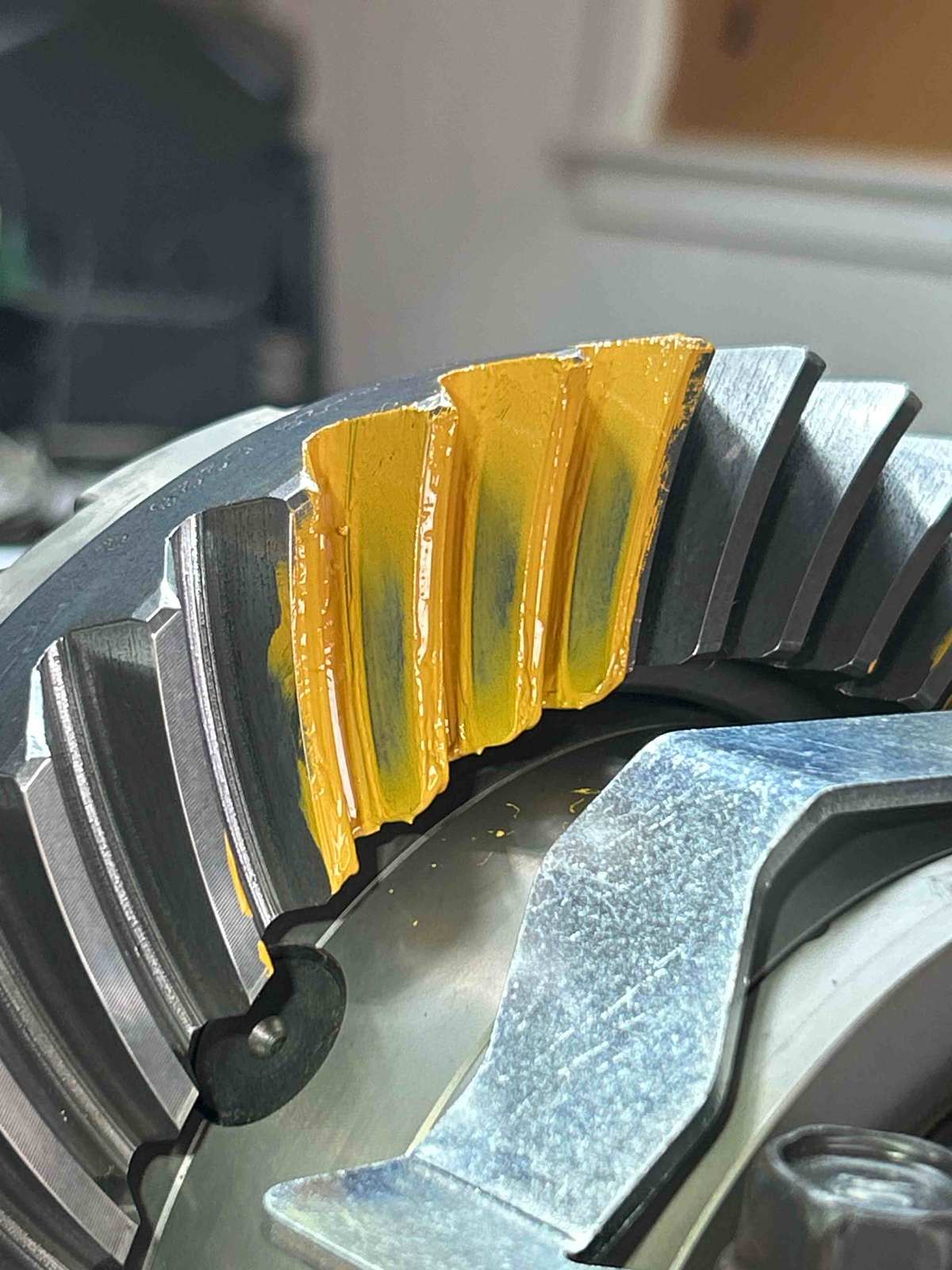

075 drive..... I like this better. Splitting hairs for sure.

075 drive.... reverse painted.

075 coast

075 coast... reverse painted.

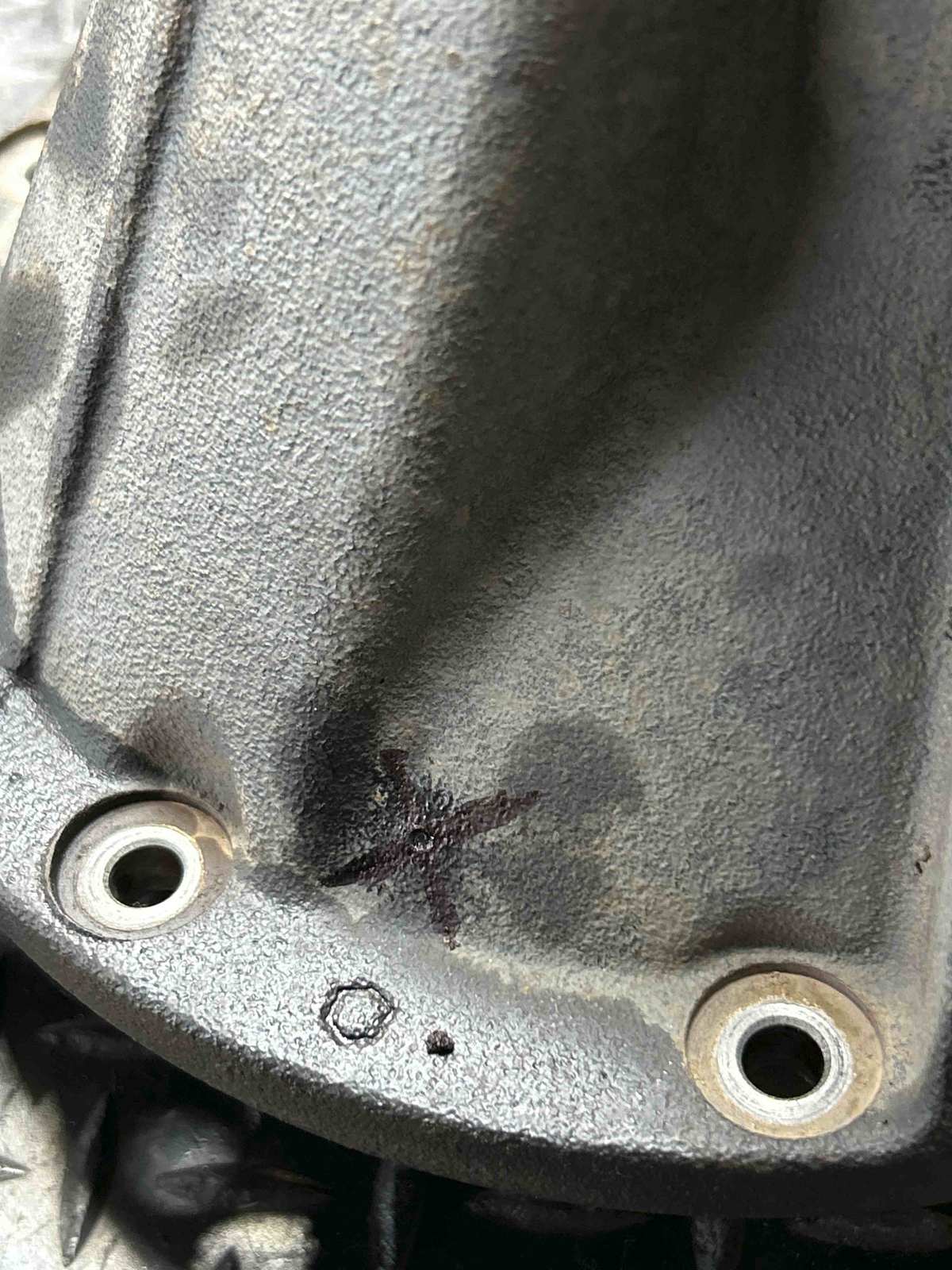

X marks the spot.

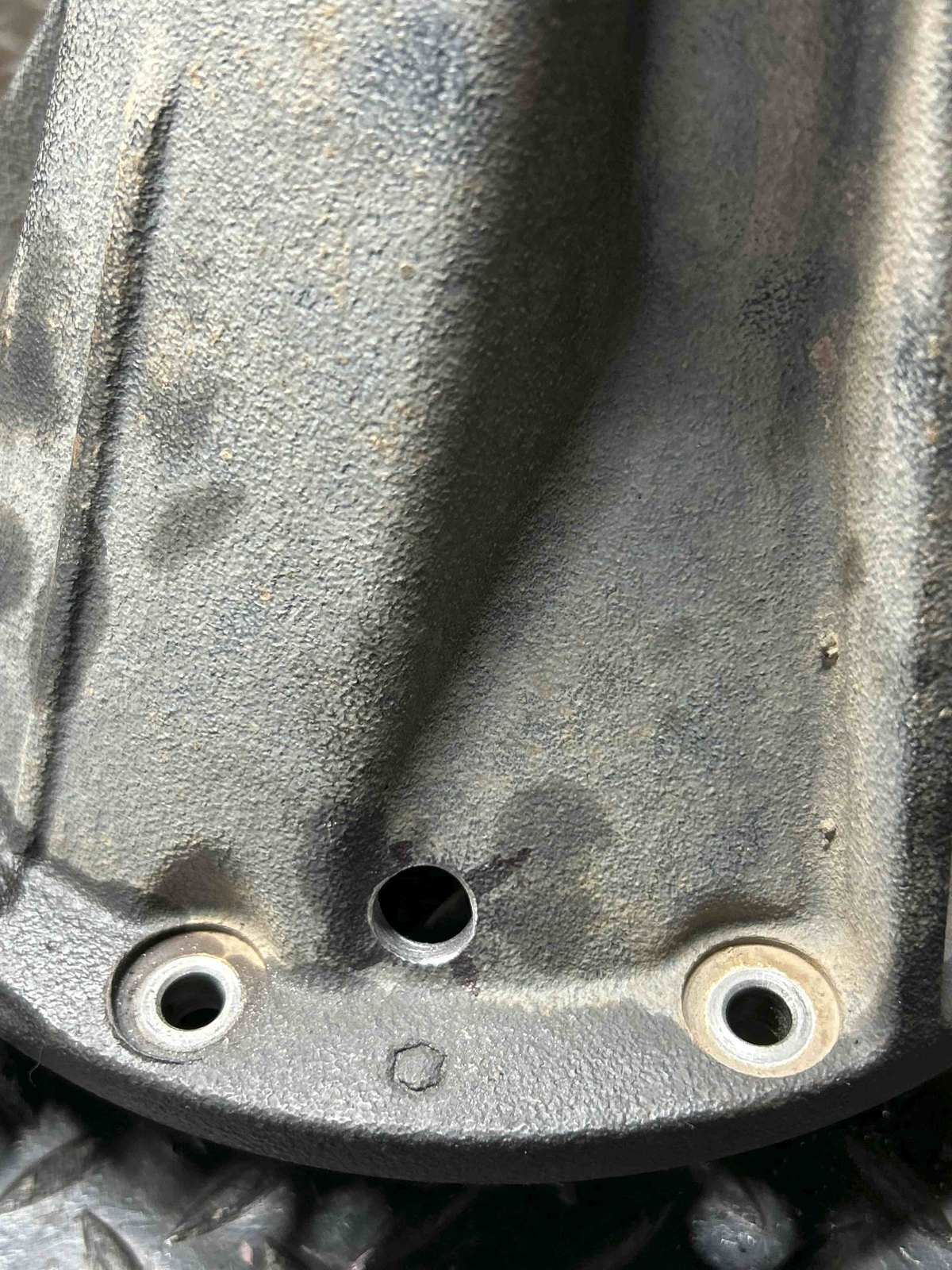

.500" hole successfully drilled.

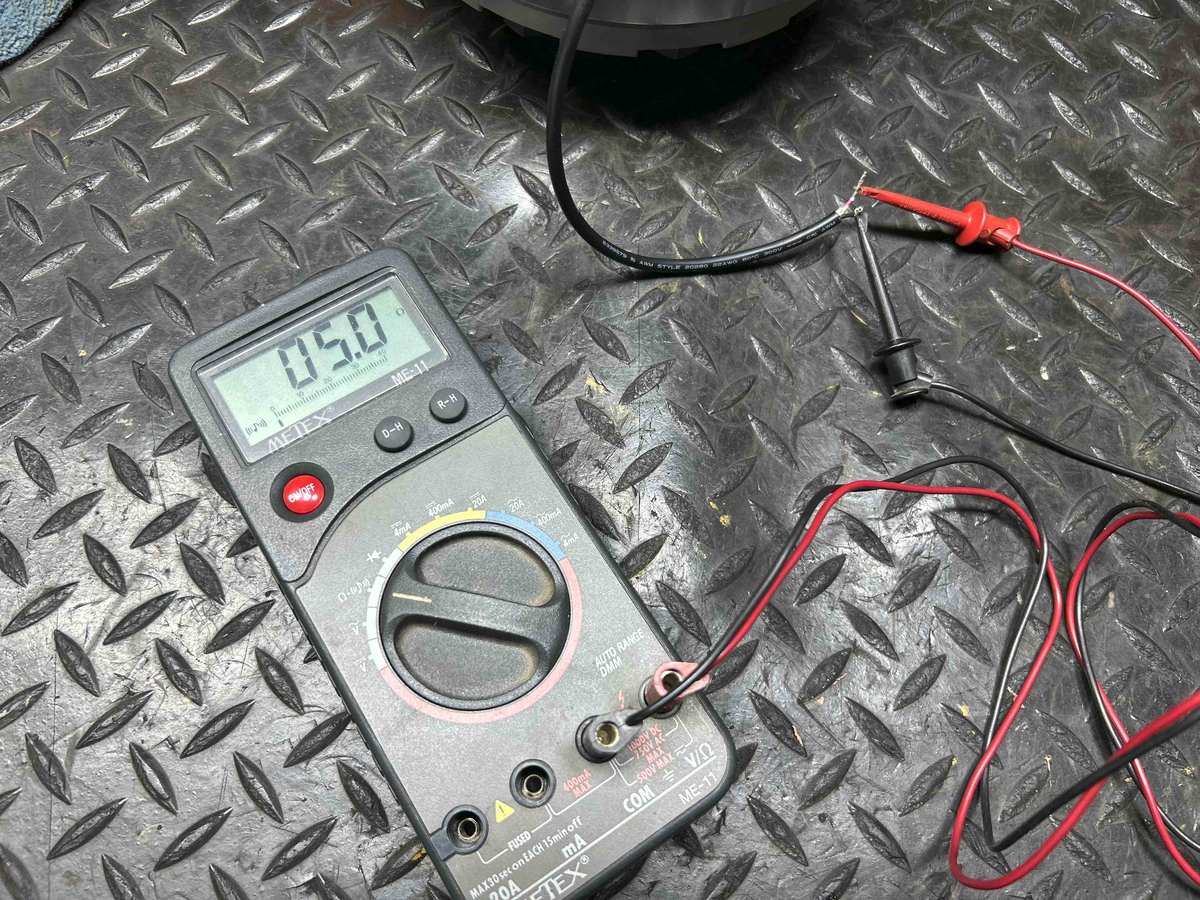

Had my DVM handy so took a measurement of the magnetic coil....
5.0 ohms but there was .3 ohms of lead resistance so the real number is 4.7 ohms.

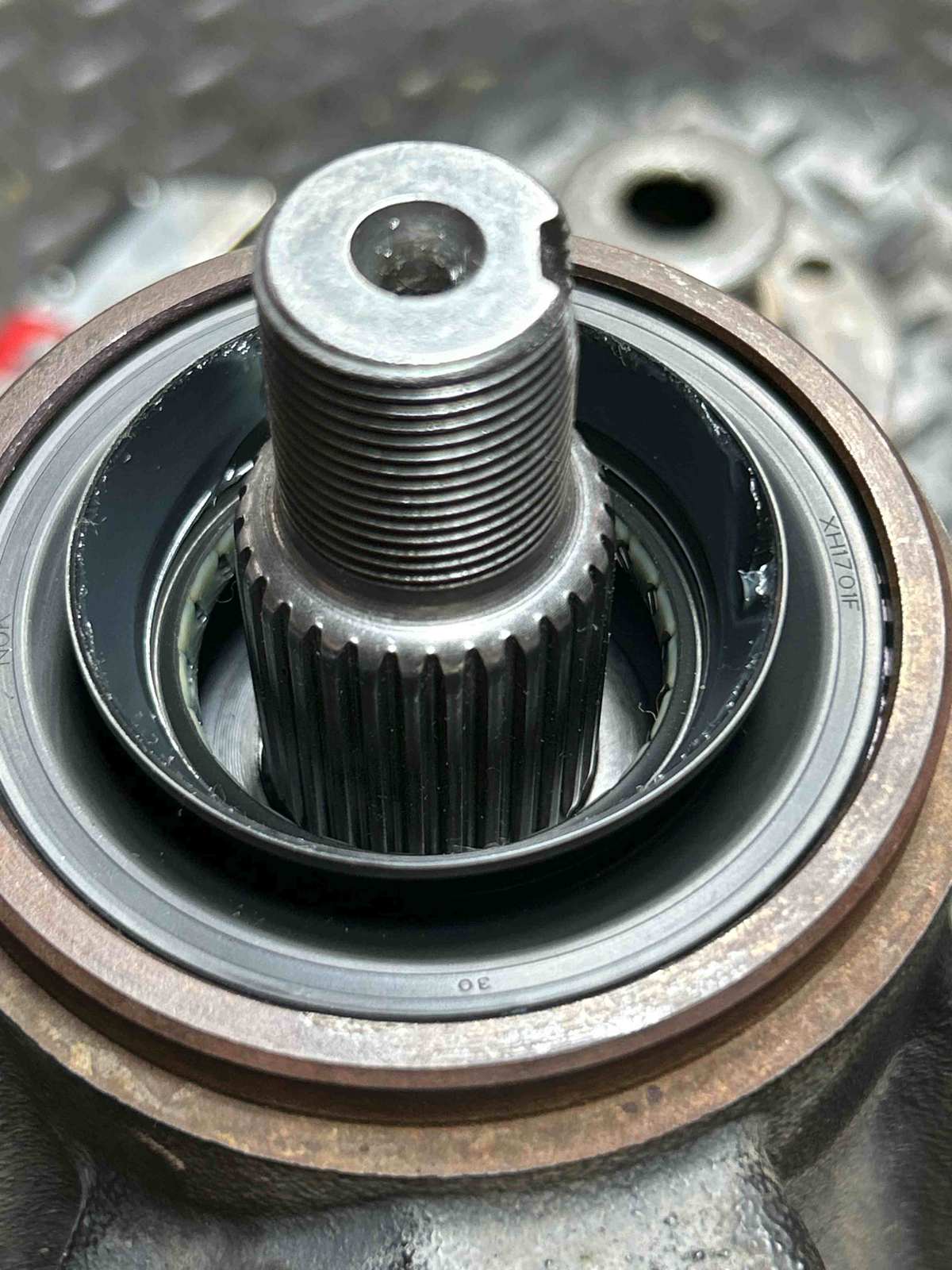

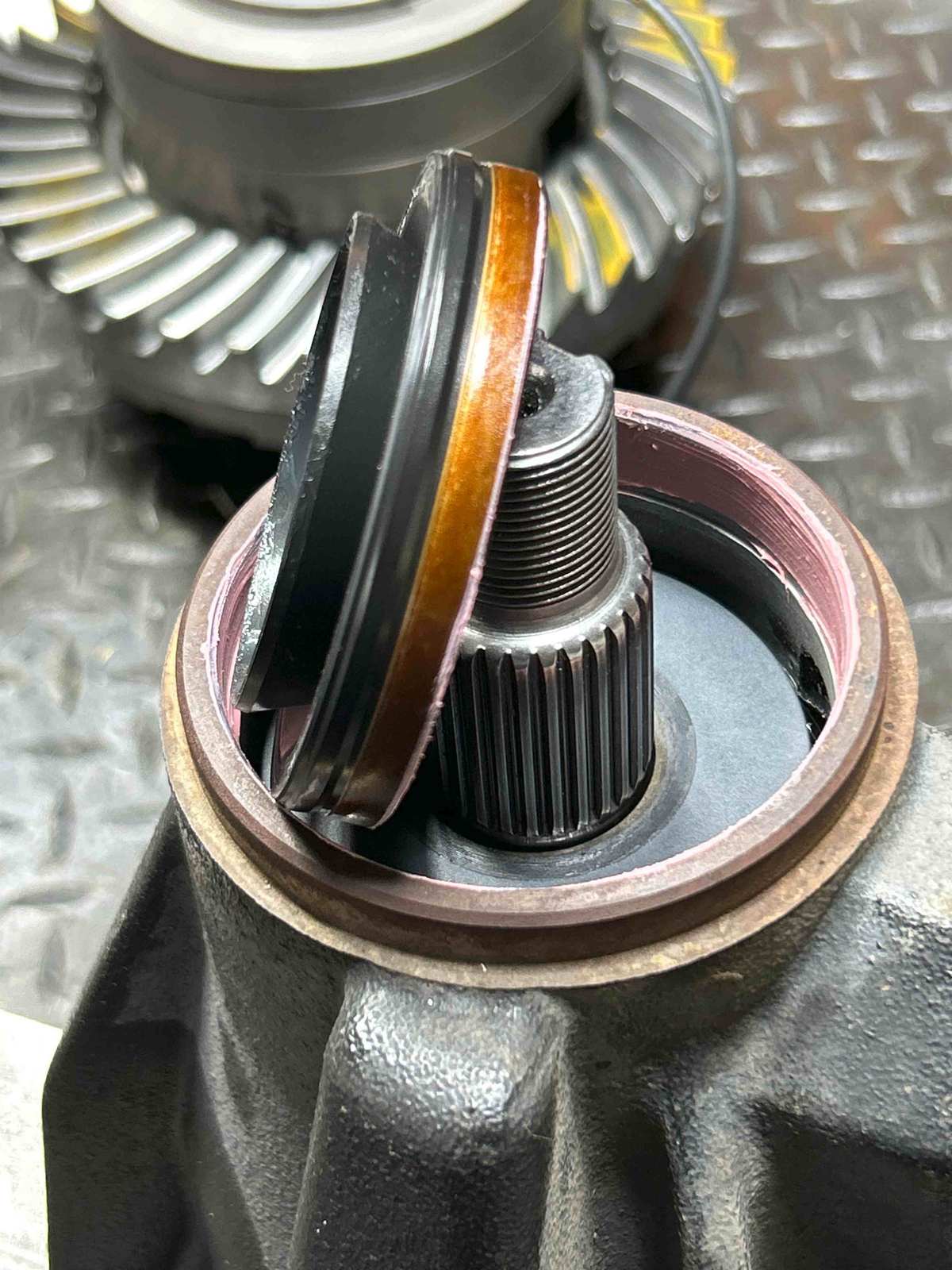

A little bit of the pink FIPG from Toyota and the seal taps in even easier.

This seal gets recessed .130"

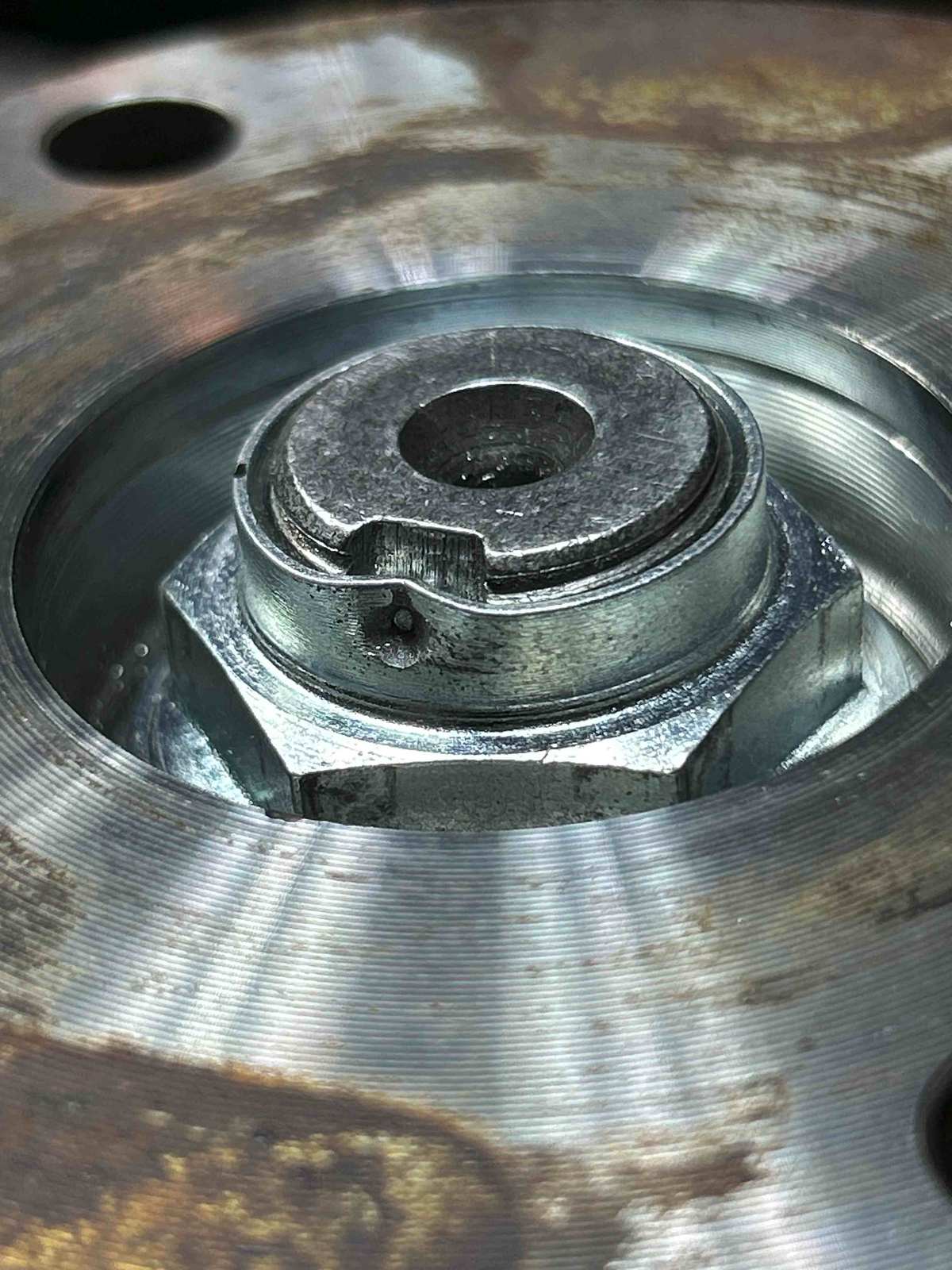

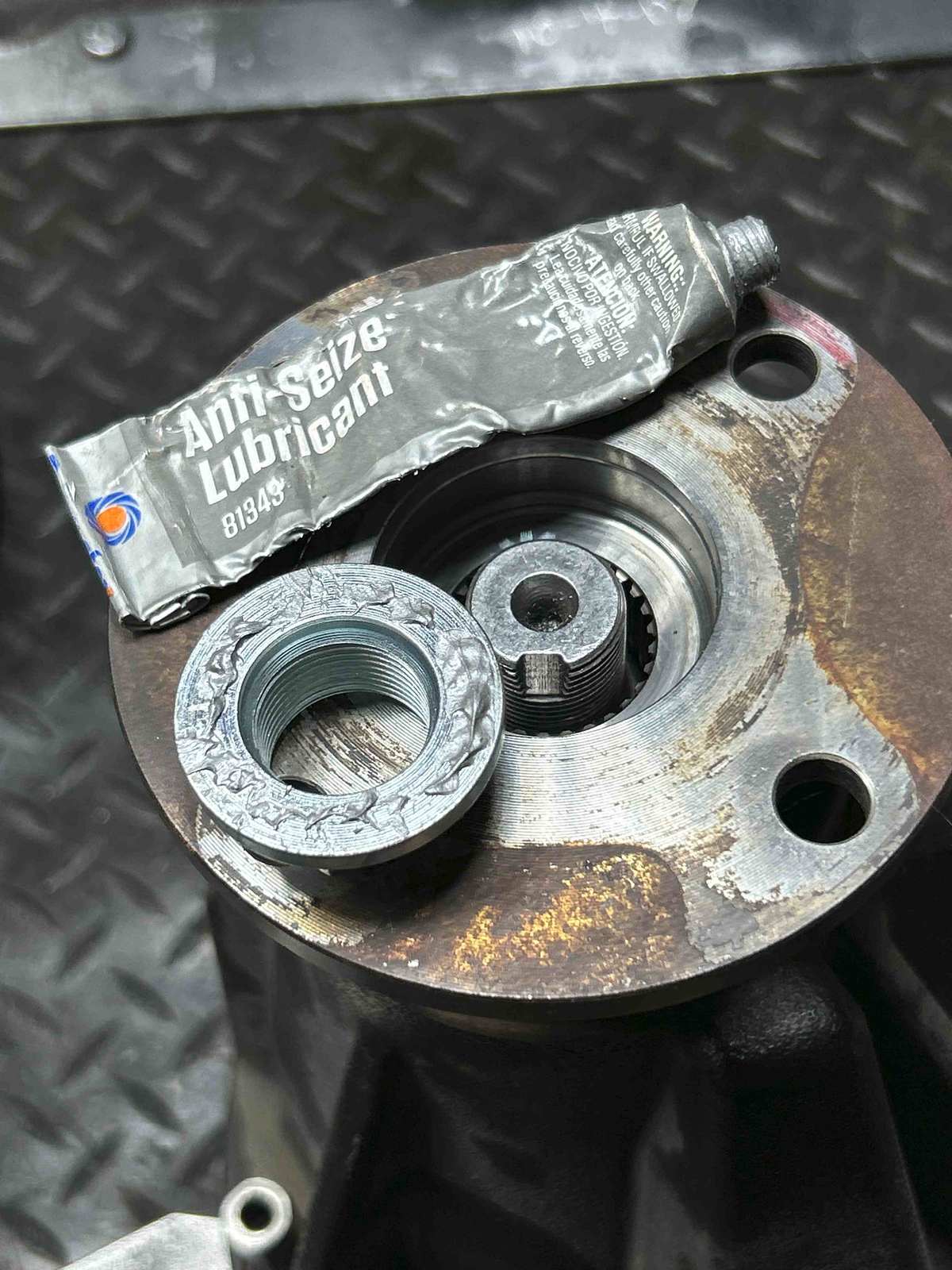

No more 3 foot long cheater bars to crush sleeves...just a little aluminum
based anti-seize on the bottom of the pinion nut does the trick. Add some
on the threads to make it so easy that you might be able to crush it with
a good strong set of fingers!

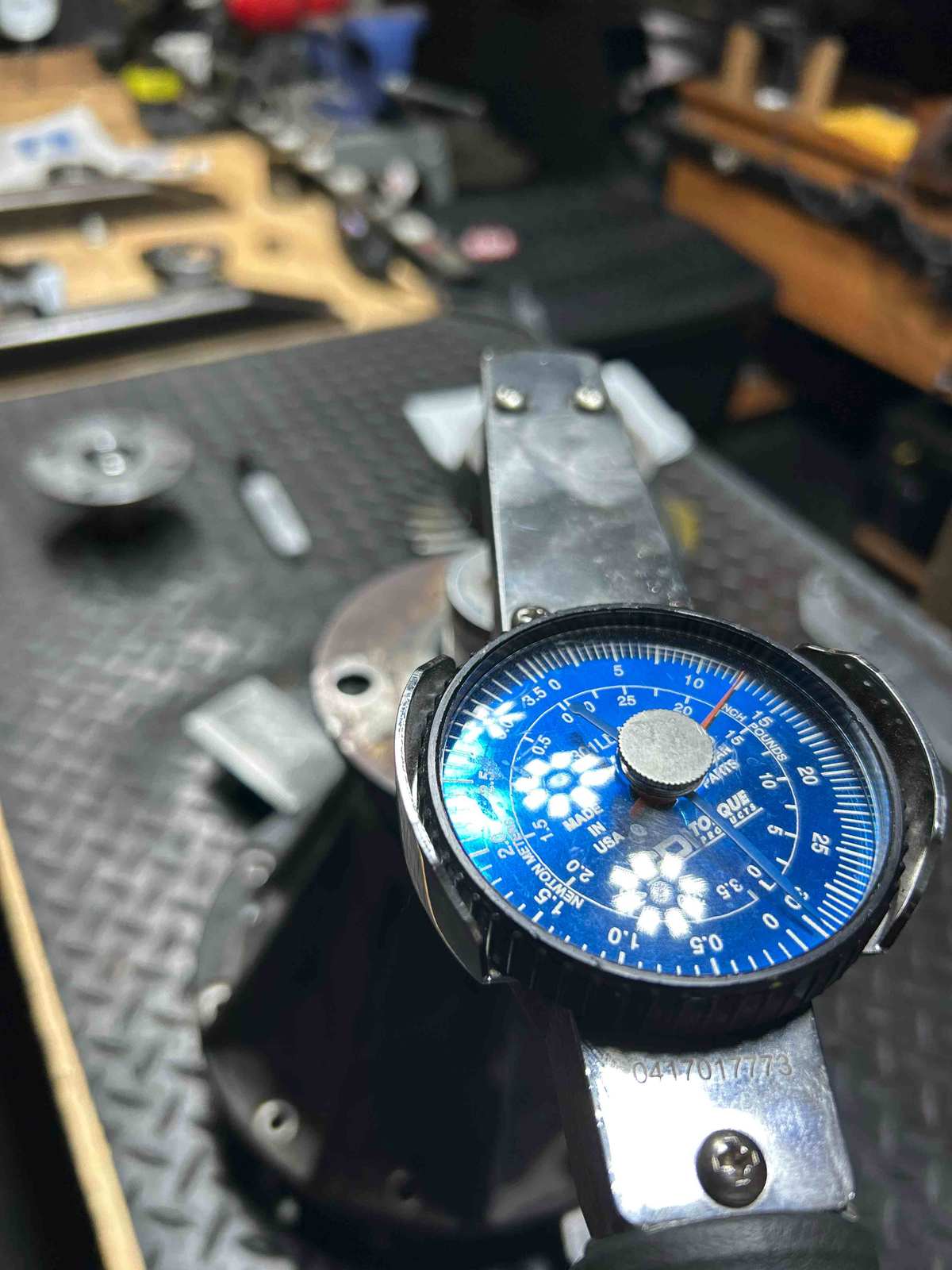

A smooth 13 inch/pounds of pinion bearing preload.

DING!! and this end is done.

Now this end goes together.

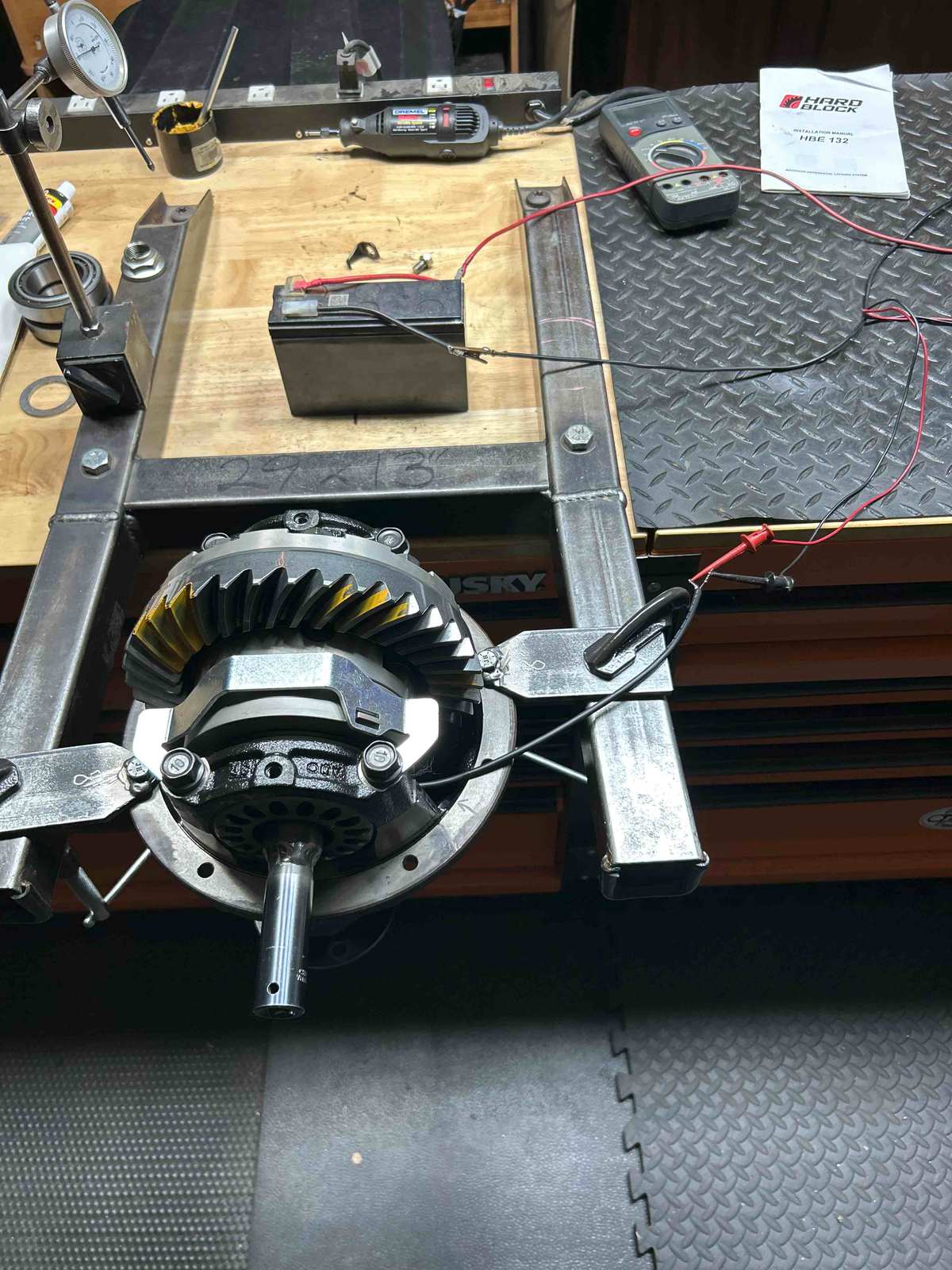

Apply 12v and locker check.....all good.

Interesting note:::: Because I tested this locker with 12 volts meant that something inside
became magnetized. Chris, in his excitement, installed the diff 3rds and not the harness.
He discovered that it stayed in the "locked" position during the test drive. Upon
installing the harness, the locker performed as advertised and could be engaged
or dis-engaged.

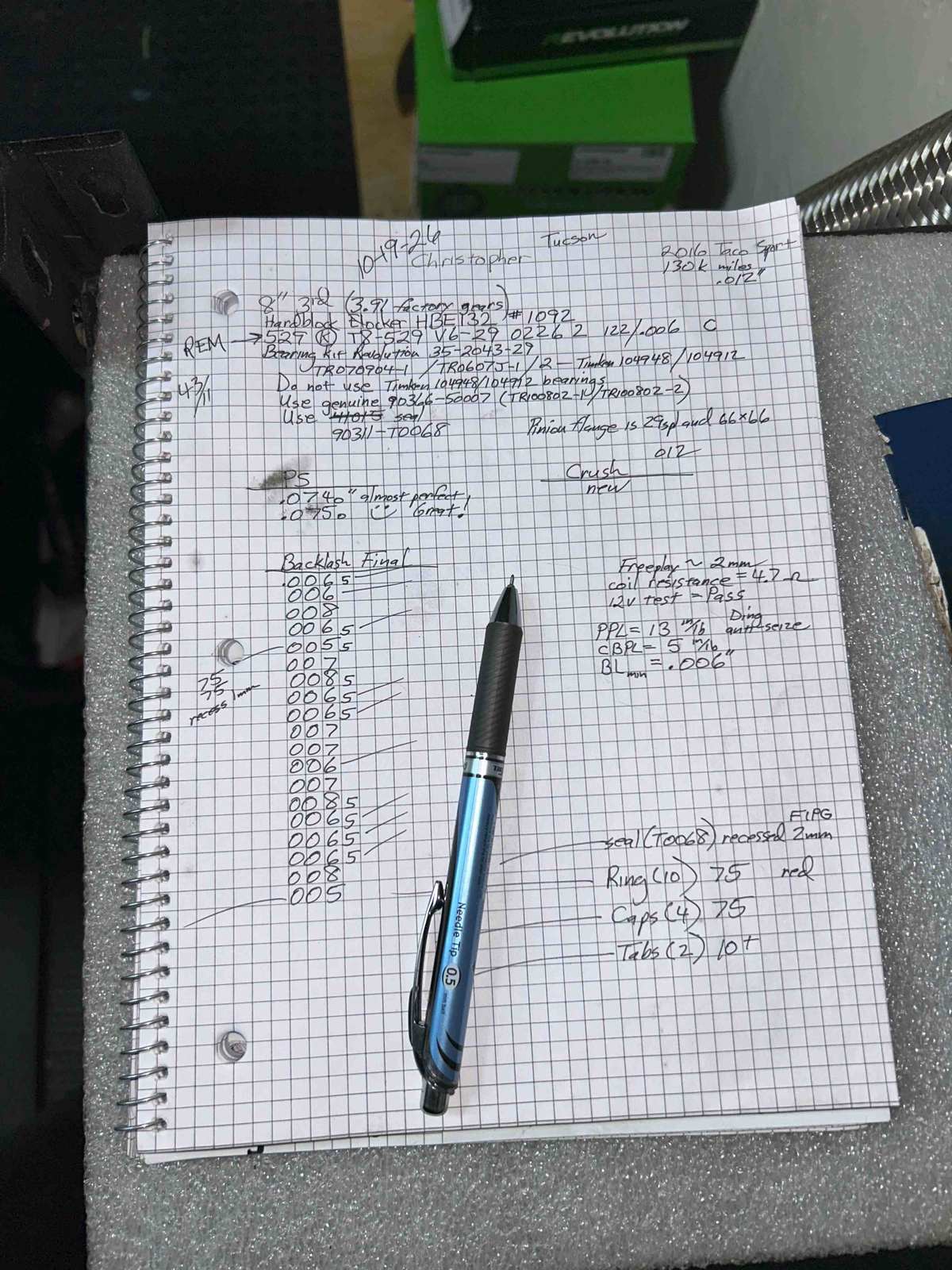

Backlash is recorded on every other tooth.

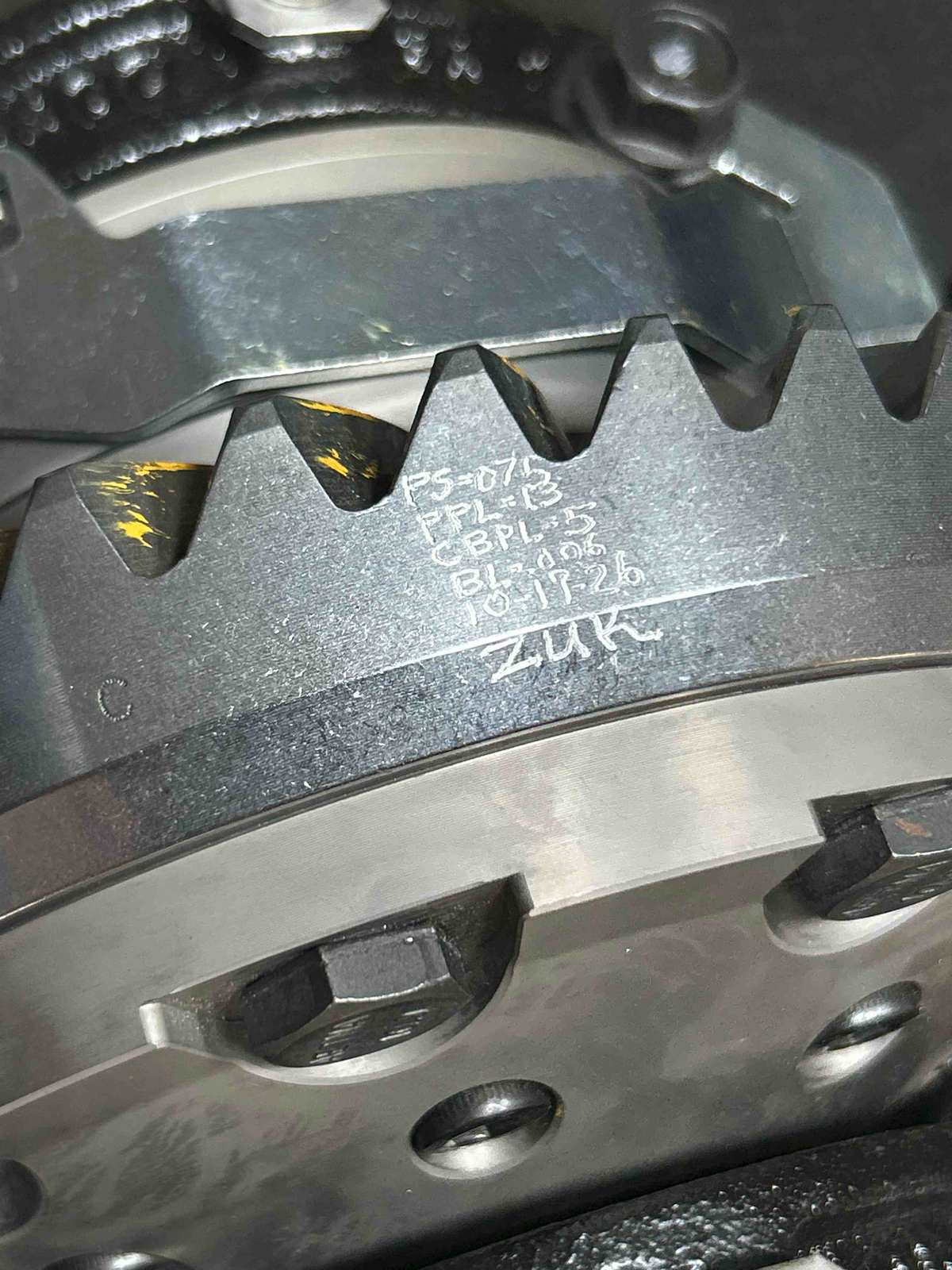

Ring gear gets some graffiti.

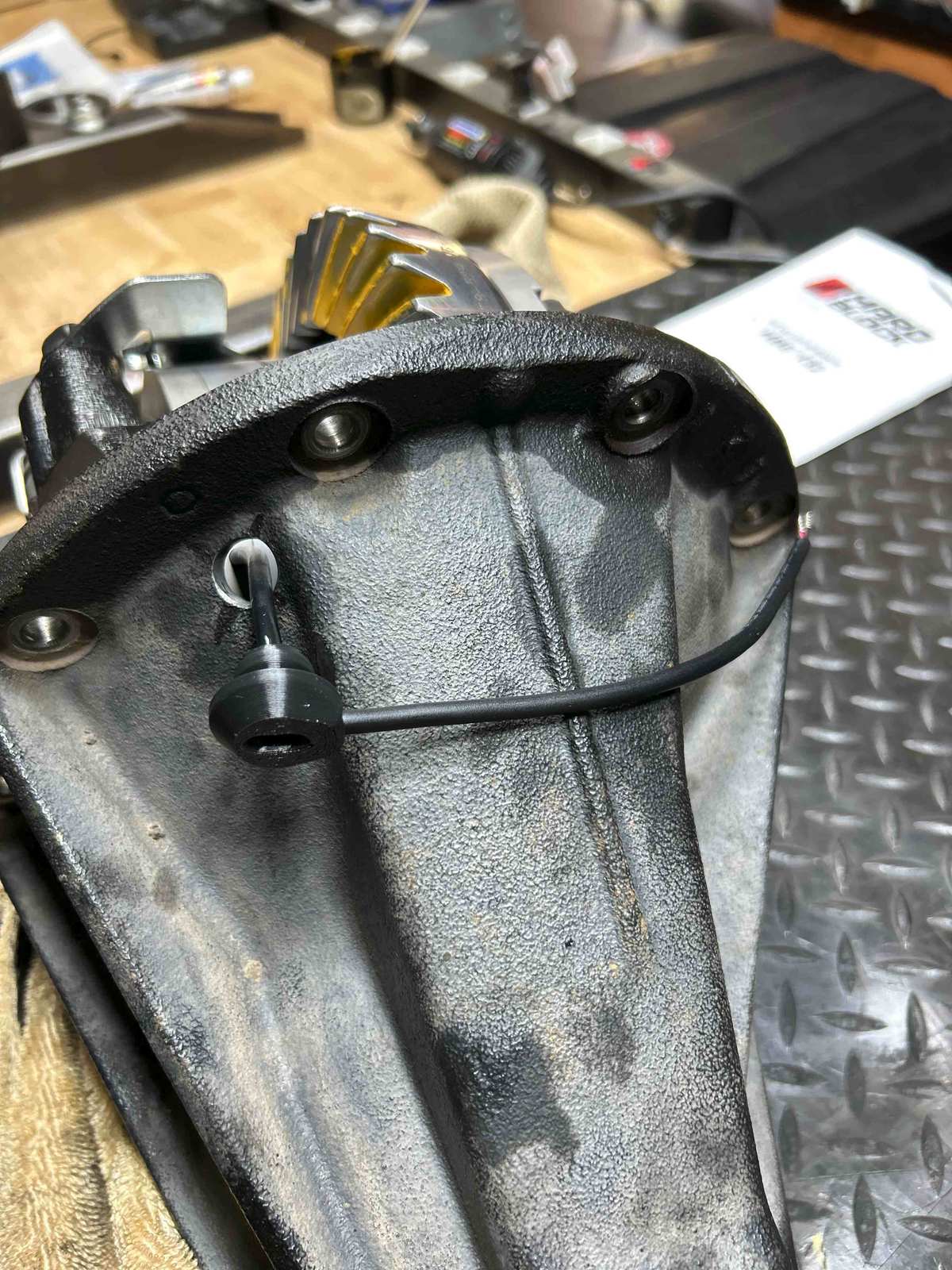

From an installers point of view, it's so much better to install the grommet
on the outside.

This right angle exit for the skinny harness is much better.

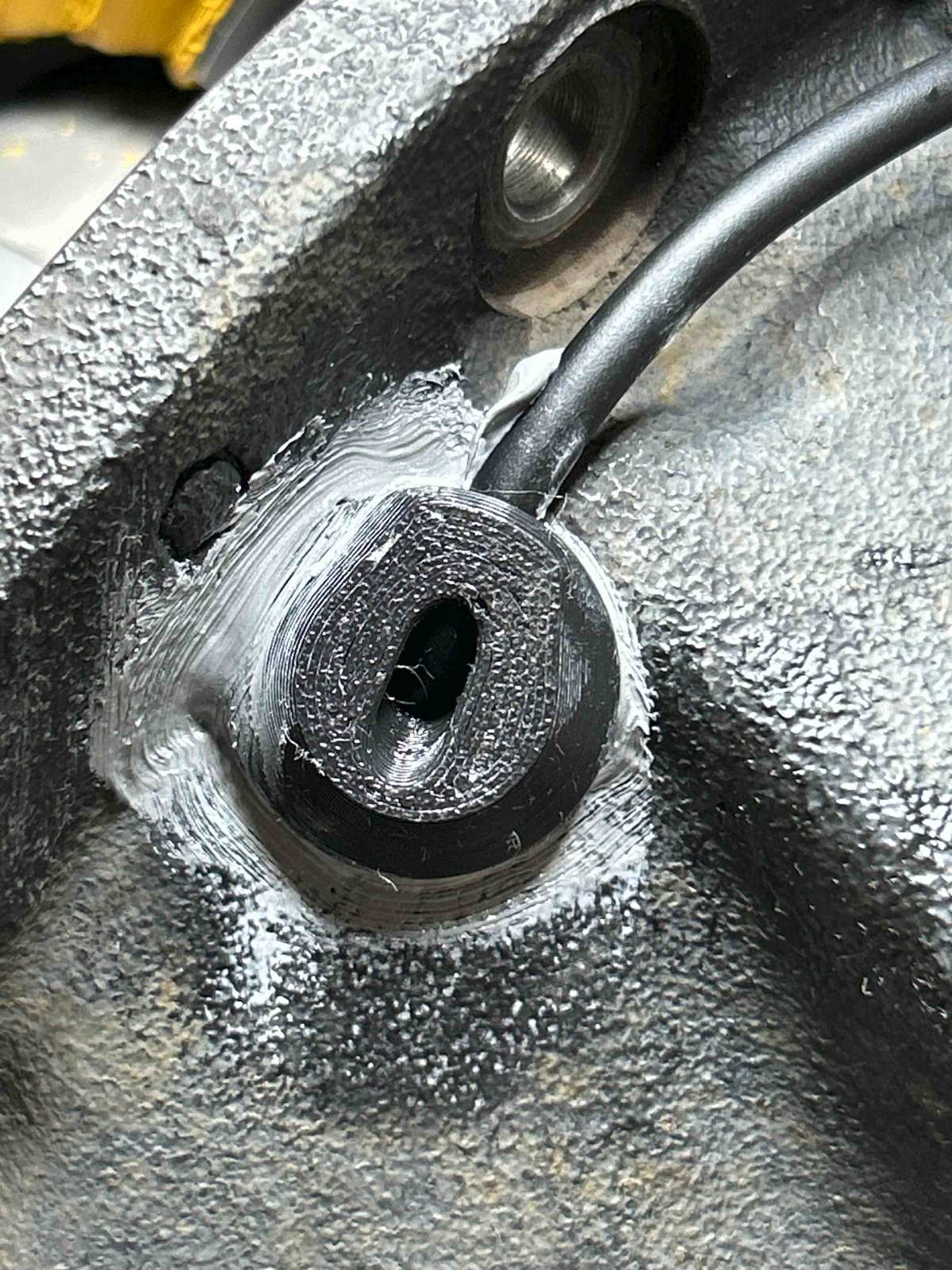

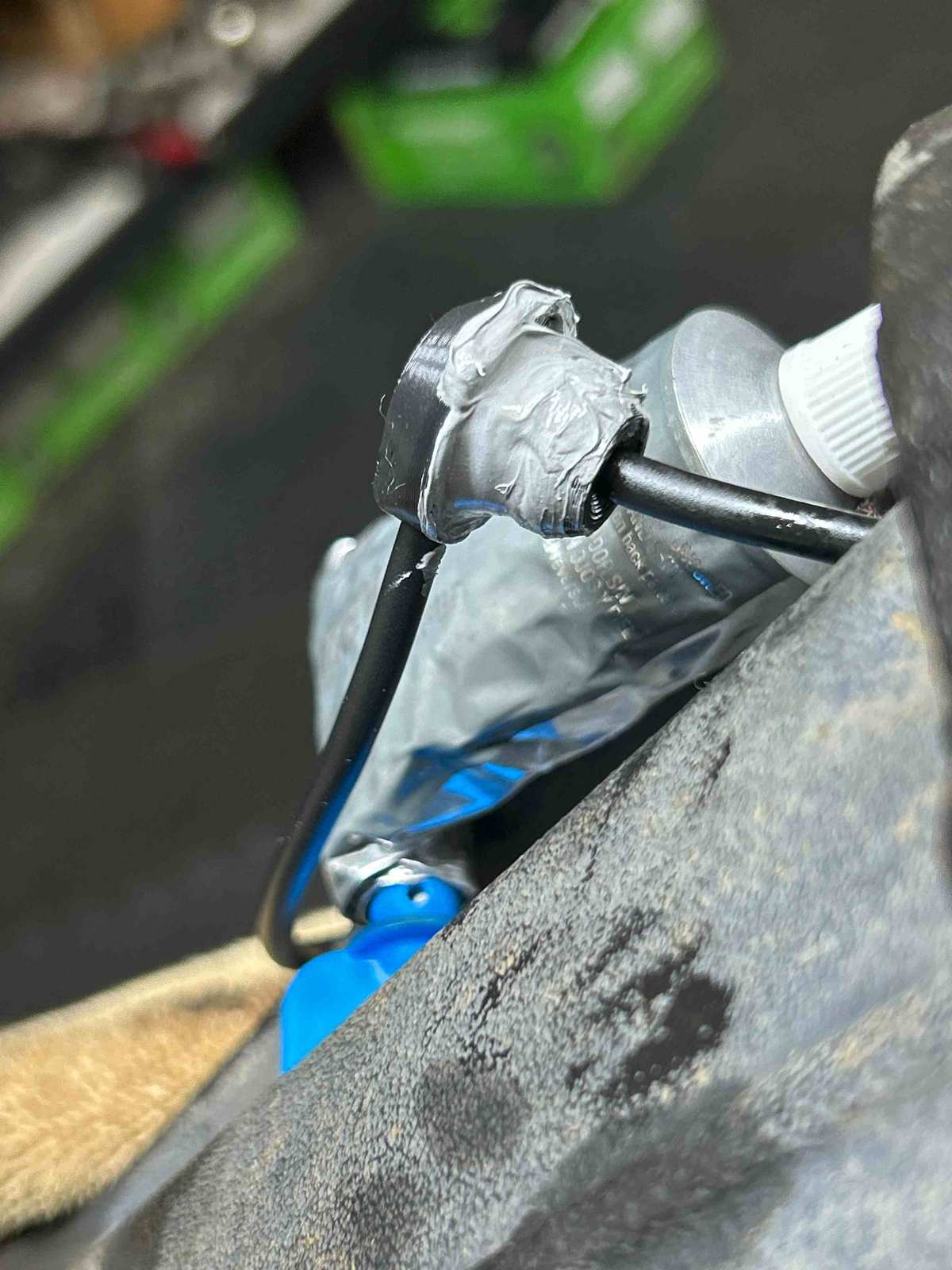

I really goober it up with sealant(Ultra-Grey).

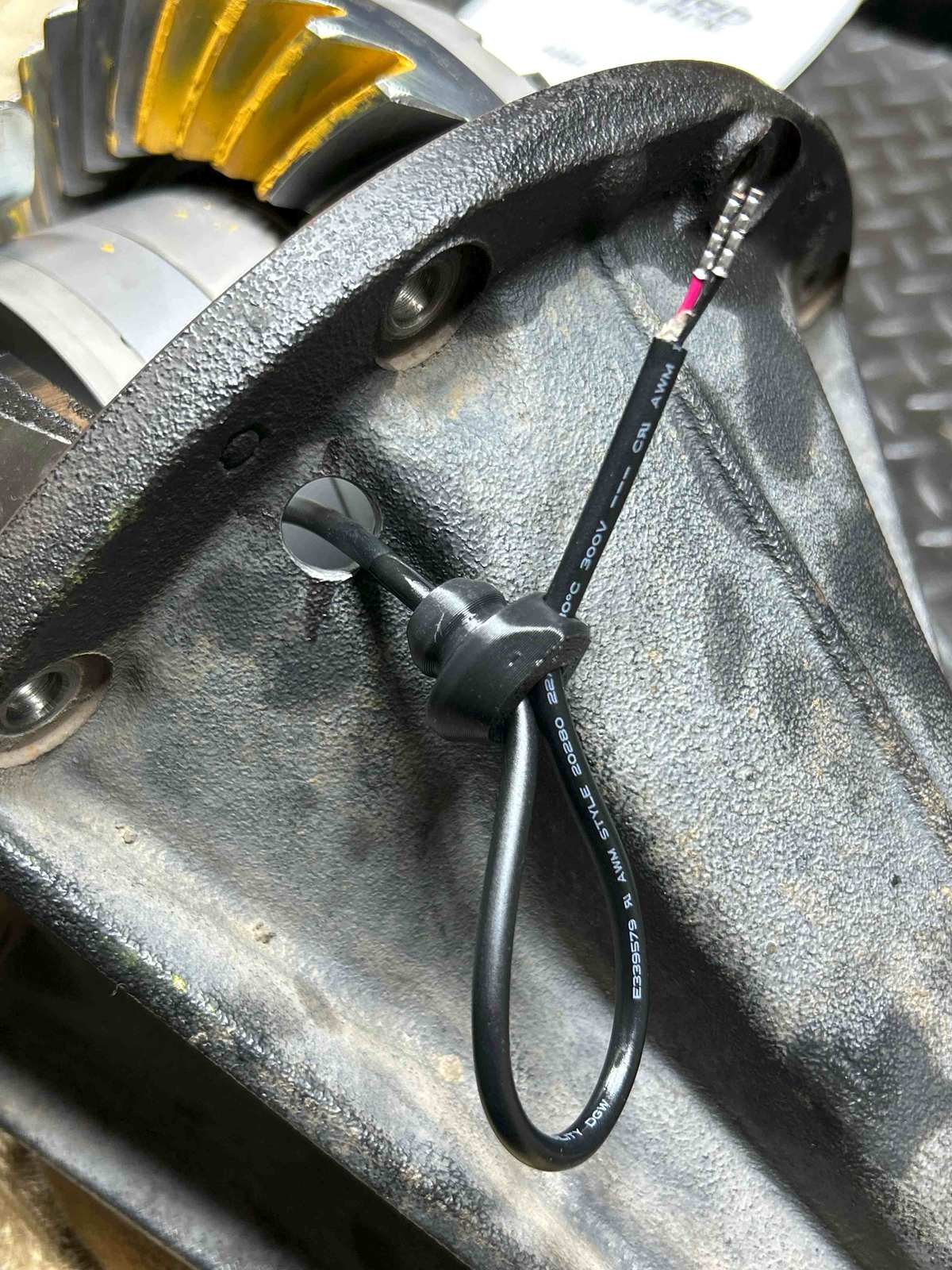

A bit of a service loop.

The sealant really glues it in solid.

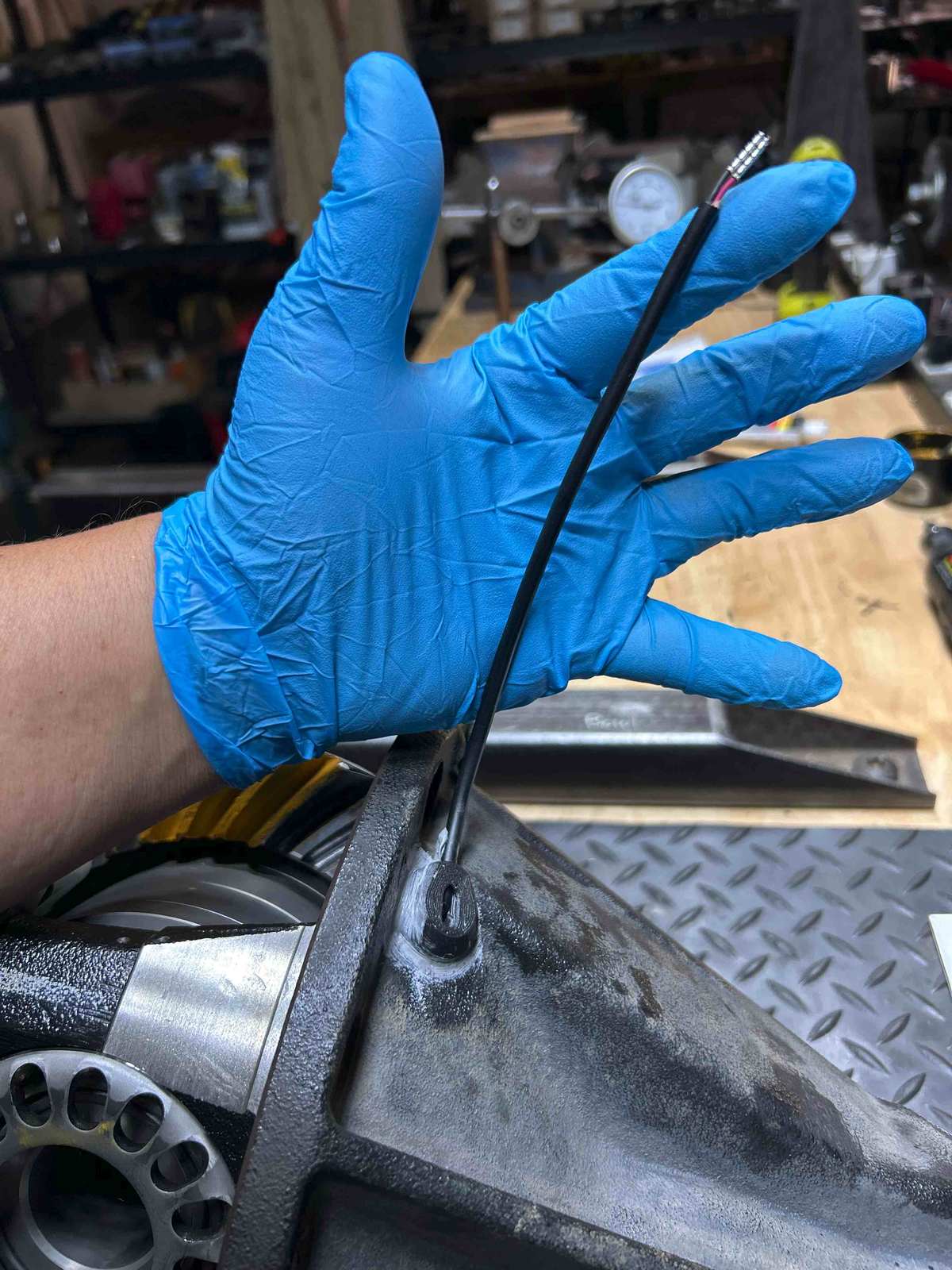

HardBlock leaves enough extra harness to do the job.

Looking forward to hearing Chris's feedback on the HardBlock performance.

Final notes.....
