Harrop e-locker for Gilbert's 1994 FZJ80 Rear-end
|
|
(63 BIG pics loading)
|
|
MAY 26 2016
|
|
|
Rear '94 3rd....Harrop....pinion bearing kit.....solid collar.
Koyo carrier bearings are already included in the box.
Contact Ward Harris (National importer/authorized dealer for Harrop) at 1-800-224-7801
or email info@cruiserbrothers.com
|
|
|
|
The pinion pre-load was all but gone. These bearings have some miles on them. Not so loose that
it wobbles around but it was definitely ready for new ones.
|
|
|
|
|
Same with carrier bearings.
|
|
|
|
|
A quick paint test.....
|
|
|
|
...reveals that the drive pattern is ok. Looks shallow right here but that will change
with a fresh inner pinion bearing.
|
|
|
|
|
Coast side sees far less use and, as expected, the pattern looks excellent.
|
|
|
|
|
Drive side of pinion tooth.....good.
|
|
|
|
|
The Nitro pinion bearing kit
|
|
|
|
|
,,,,,,,,,,,,,,,,,,,,,,
|
|
|
|
Koyo carrier bearings.....32010 part number. As mentioned earlier, these can be tossed in the Harrop
box for about 50ish per pair(at the time of this writing).
|
|
|
|
|
Well machined.
|
|
|
|
|

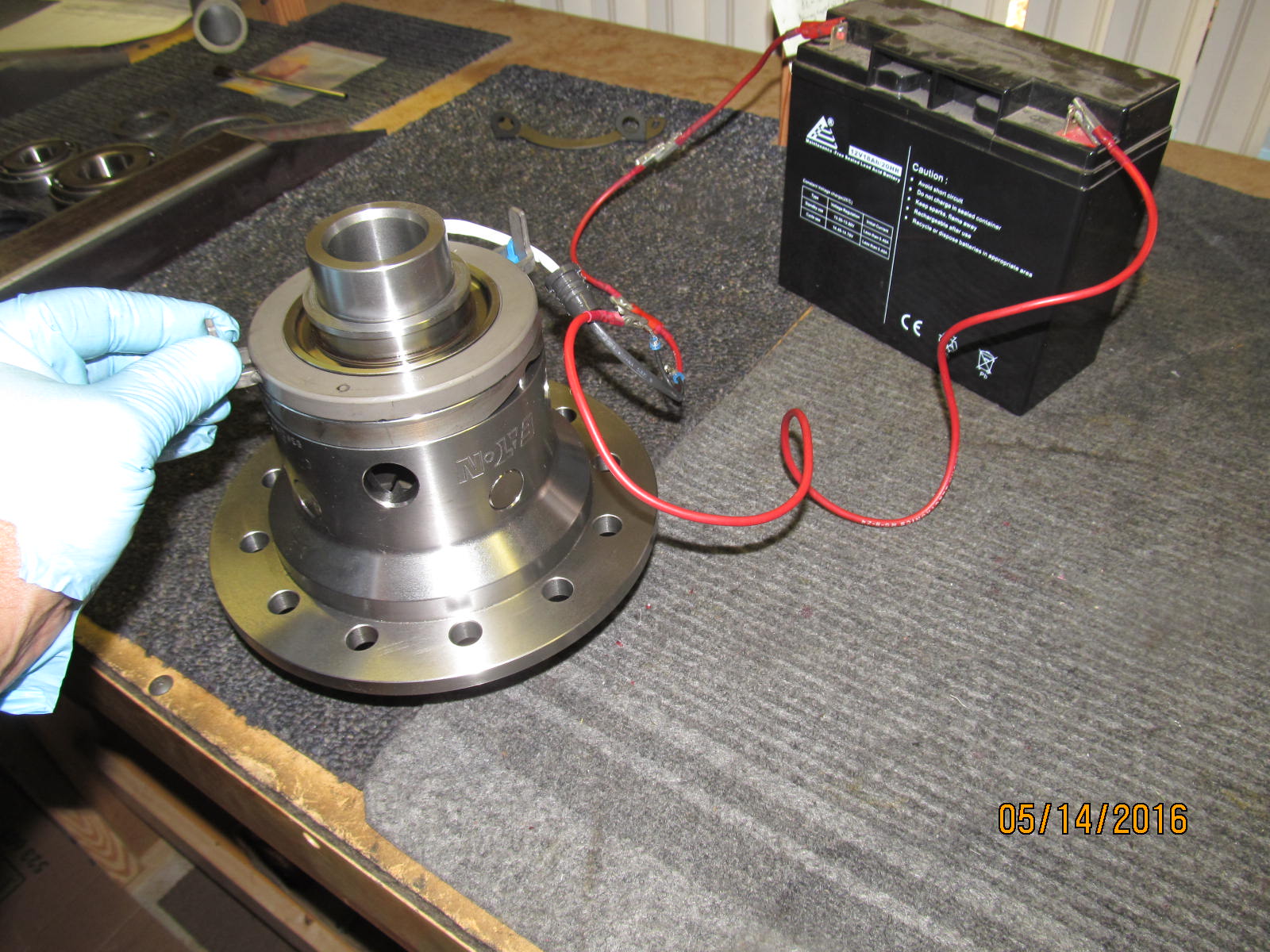

A quick test of the electro-mechanism......without 12v, the grey piece spins easily.
|
|
|
|
|
With 12 volts, there is a very soft thud noise and it feels like a strong magnet coupling to the ring below it.
|
|
|
|
|
Backlash was checked and it was around .008"
|
|
|
|
|
All I need to remove is the ring gear from the open carrier.
|
|
|
|
|
A glance over to the pinion paint shows it's looking good, too.
|
|
|
|
|
Ring gear is removed and almost ready to mount to the Harrop.
|
|
|
|
|
Surfaces felt good using a file.
|
|
|
|
|
The lead filled plastic hammer was able to seat the ring gear.
|
|
|
|
|
81 ft/lb and red loctite.
|
|
|
|
|
Carrier bearings are pressed on.
|
|
|
|
|
,,,,,,,,,,,,,,,,,,
|
|
|
|
|
This end is now complete.
|
|
|
|
|
This pinion nut does not appear to have ever been off before....looks like the oem square dent in the nut.
|
|
|
|
|
That means this is probably the original seal. Now to press the pinion out....
|
|
|
|
|

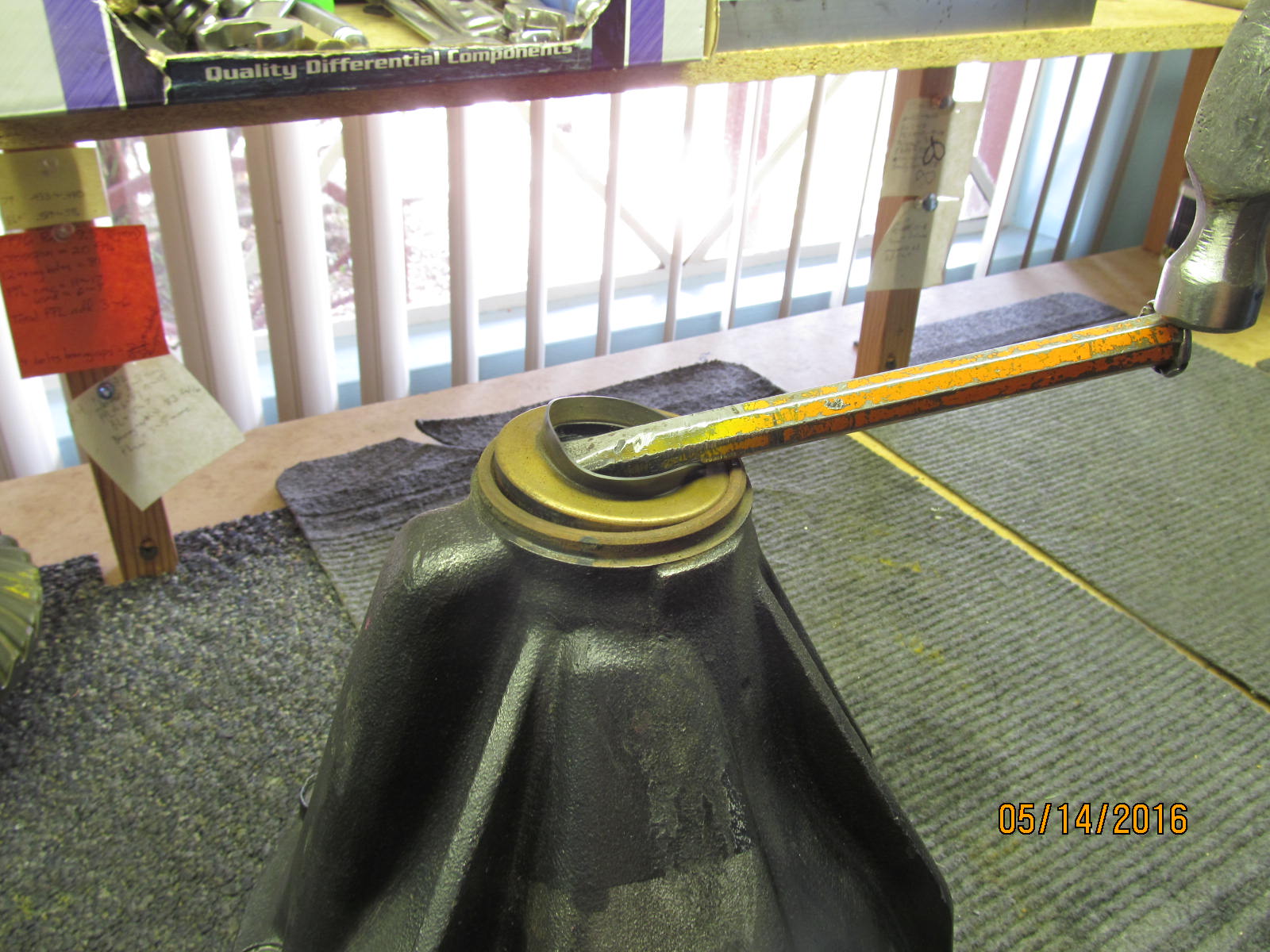

patented seal removal tool
|
|
|
|
|
Old race tapped out and now putting in the new one.
|
|
|
|
Looks good.
Not shown but do the same for the small outer race....tap the old one out and replace with a new one.
|
|
|
|
|
New bearing and solid collar to be installed next.
|
|
|
|
|
OTC-1130 bearing separator allows easy removal of the original inner pinion bearing.
|
|
|
|
|
Re-using the oem .051" pinion depth shim with the new KOYO bearing.
|
|
|
|
|
Pressing the bearing on.
|
|
|
|
|
Solid collar will also be installed at the same time.
|
|
|
|
|
It took 6 times to finally get the perfect shimpack with the collar....
|
|
|
|
|
....but now it's ready for the seal.
|
|
|
|
|
Flange surface is in excellent shape.
|
|
|
|
|
All together on this end and with the pinion nut extra tight I was measuring 11 in/lb for pinion preload.
|
|
|
|
|
I save the drilling of the hole til the last possible moment.... X marks the spot.
|
|
|
|
|
.453" drill bit right here feels right.
|
|
|
|
|
...................
|
|
|
|
|
Hole is drilled and now the Harrop is mounted in place. 70 ft/lb for the 4 bearing cap bolts.
|
|
|
|
Adjuster wheels are tightened until the minimum backlash checks in at .006" or more.
Also, there needs to be a good amount of carrier bearing pre-load at the same time.
|
|
|
|
The bearings have to be "settled in"....equalized in tension uniformly on both sides.
A sharp rap on the 4 corners will let that happen.
|
|
|
|
|
Also, making sure that the "anti-rotation tabs" have about 2mm of up/down play.
|
|
|
|
The Harrop instructions say to bend the welded on tabs slightly to make the 2 mm free play happen.
I like the idea of tapping on the bolted on bracket instead ;)
|
|
|
|
Now is a good time to test the e-locker. It's non-polarized so hook it up either way to 12 volts.
A slight clunk can be heard in a quiet room. By NOT allowing the sidegears to turn and then
turning the pinion, the 3 pins will be seen to start their journey up the ramp ring.
And the locker is in lock mode.
|
|
|
|
|
I measured the backlash on every other tooth and recorded the values. The oem spec is .0055"~.007"
|
|
|
|
The total preload was measured at 20 in/lb start torque. That means if the pinion bearing preload is 11
then the carrier bearings must be responsible for the remaining 9.
|
|
|
|
|
10 solid ft/lbs (120 in/lb) on the 2 remaining lock tabs.
|
|
|
|
|
Goop on your favorite rtv...
|
|
|
|
|
...and the grommet will go in with about 1/2 the effort.
|
|
|
|
|
Looks good.
|
|
|
|
|
Final drive side check.....good.
|
|
|
|
|
Coast...even better.
|
|
|
|
|
''''''''''''''''''
|
|
|
|
|
''''''''''''''''''''''''
|
|
|
|
|
-----------------
|
|
|
|
|
-----------------
|
|
|
|
|

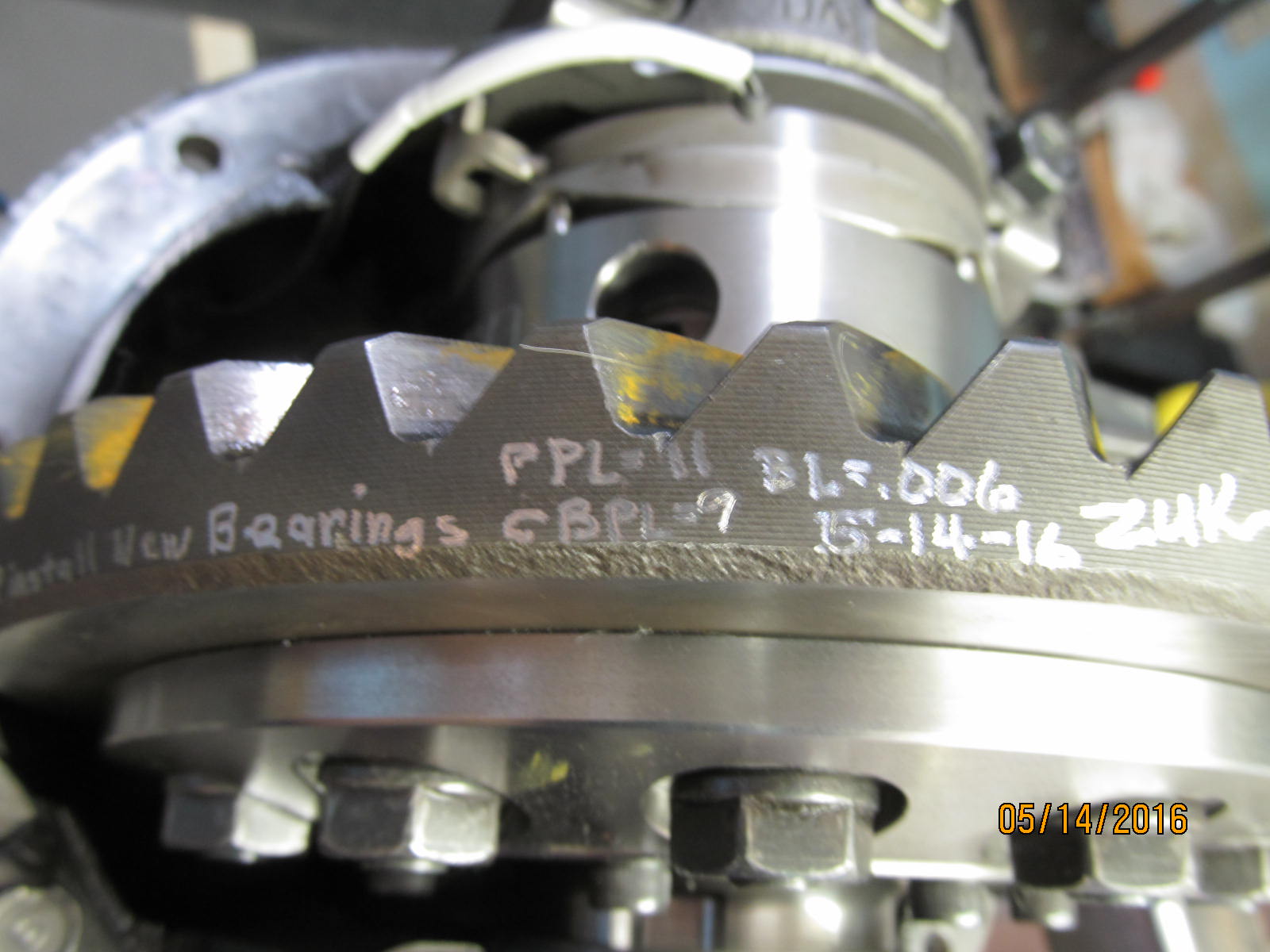

Notes taken during this install.
|
|
|
|
|
Harrop is now packed up.....
|
|
|
|
|
....and ready to take to the Fedex Office and Print Center down the road from me.
|
|
|
|
|
